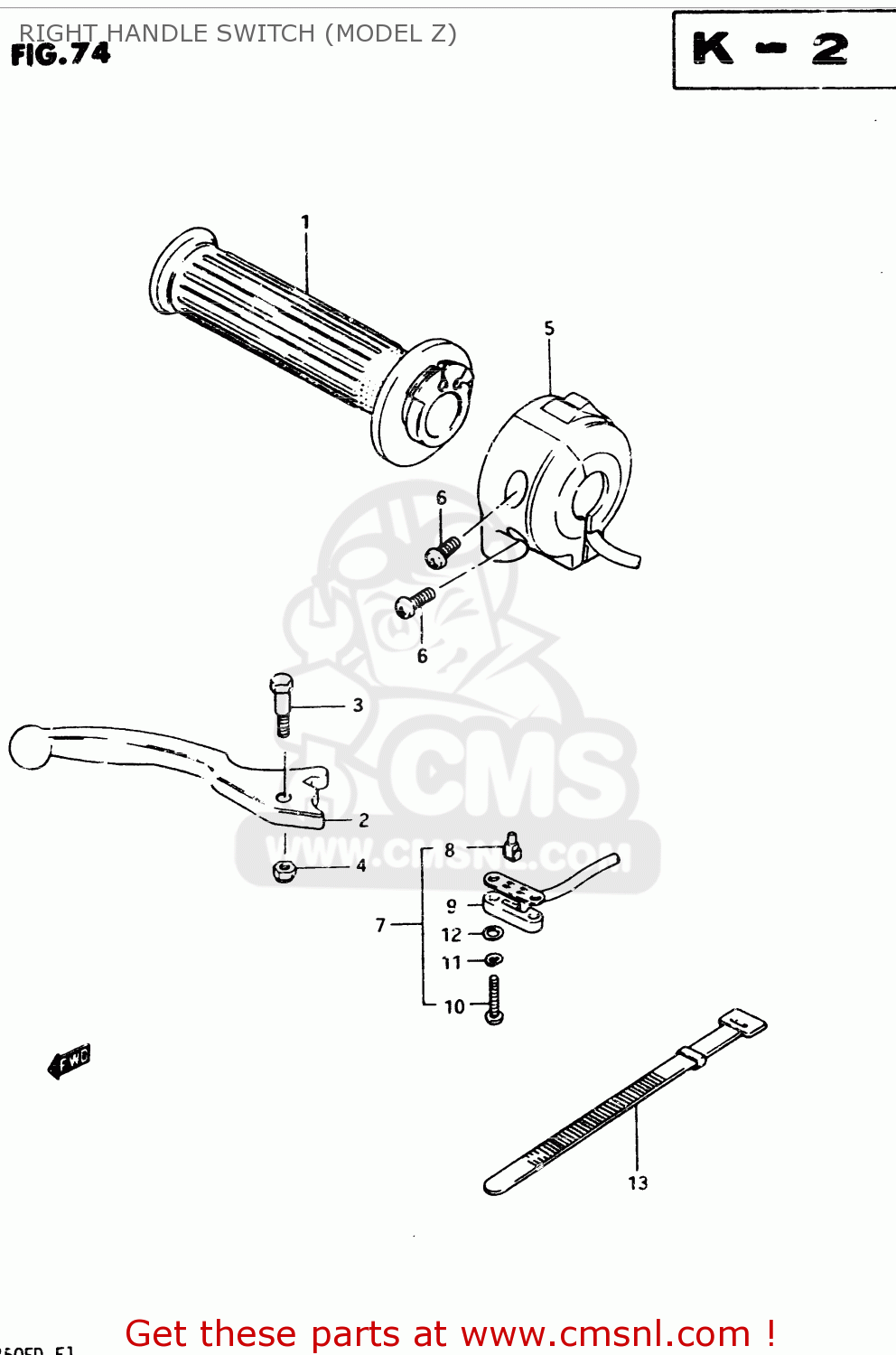

Suzuki GSX250 1982 (Z) GENERAL EXPORT (E01) right handle switch (model z)

Check out any of the fourteen Right Handle Switch (model Z) components enlisted. The most expensive part in this assembly is the Switch Assembly,handle,right. The Washer is the lowest priced item on this Right Handle Switch (model Z) schematic.


view large image
Ref
product
price
Quantity

1
GRIP,THROTTLE
GRIP,THROTTLE
product number: 5711044011
supersession: 5711049510
rating:
show photo

€ 27.50

2
LEVER,BRAKE
LEVER,BRAKE
product number: 5742049101

show photo

€ 26.50

3
BOLT
BOLT
product number: 5743118621

show photo

€ 5.50

4
NUT 6MM
NUT 6MM
product number: 0831921068
supersession: 083192106A
show photo

€ 1.50

5-1
SWITCH ASSEMBLY,HANDLE,RIGHT
product number: 3720049410

€ 85.50

5-2
SWITCH ASSEMBLY,HANDLE,RIGHT
product number: 3720049420
supersession: 3720049421
notes: E4,E17,E18,E22,E26,E

€ 109.50

6
SCREW
product number: 3759149210
supersession: 0912505102

€ 1.50

7
SWITCH ASSEMBLY
SWITCH ASSEMBLY
product number: 5746049300
supersession: 5746045500
notes: E4,E6,E17,E18,E21,E2
show photo

€ 26.50

8
CONTACT,SWITCH
CONTACT,SWITCH
product number: 5746518601
notes: E4,E6,E17,E18,E21,E2
show photo

€ 3.00

9
COVER,FR BK TERMINAL BASE
COVER,FR BK TERMINAL BASE
product number: 5748133010
supersession: 5756018D10
notes: E4,E6,E17,E18,E21,E2
show photo

€ 17.00

10
SCREW
SCREW
product number: 0912503105
supersession: 0912503105XC0
notes: E4,E6,E17,E18,E21,E2
show photo

€ 1.50

11
LOCK WASHER
product number: 0832121038
supersession: 0832121033
notes: E4,E6,E17,E18,E21,E2

€ 1.50

12
WASHER
WASHER
product number: 0832221038
notes: E4,E6,E17,E18,E21,E2
show photo

€ 1.00

13
CLAMP(L:120)
CLAMP(L:120)
product number: 0940712402

show photo

€ 2.50
