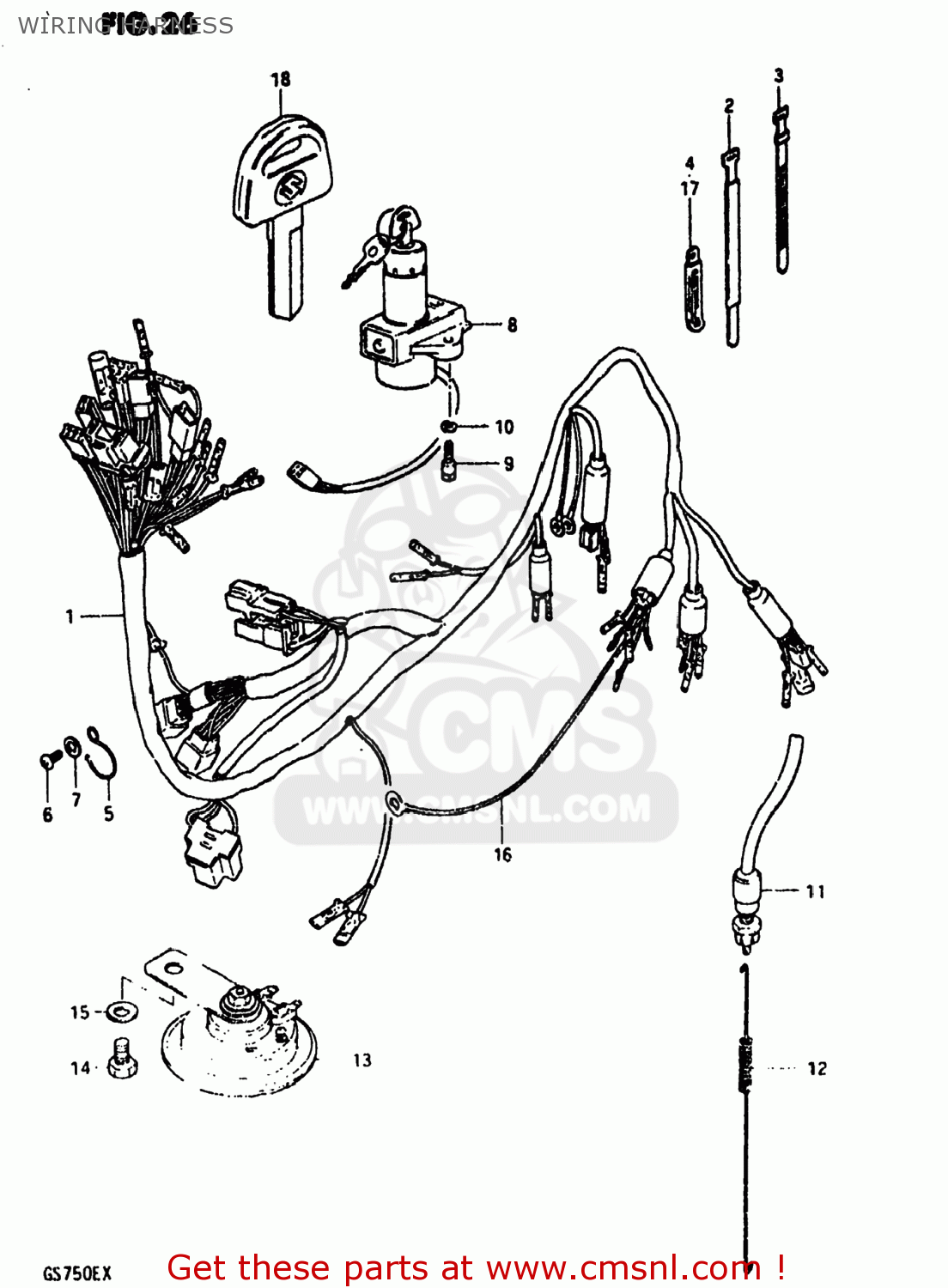

Suzuki GS750E 1981 (X) USA (E03) wiring harness

info set as my vehicle my vehicles

The component with the lowest price in the WIRING HARNESS schematic is the Guide,wiring Harness. The Wiring Harness is made up of components including this Lock Assembly,steering which is the most expensive. In this schematic the "Clamp(l:120)" is used most often.


view large image
Ref
product
price
Quantity
1
HARNESS,WIRING
product number: 3661045410
€
€ 97.50
add to cart
2
CLAMP
CLAMP
product number: 0940718301
supersession: 0940718302
show photo
€
€ 5.50
add to cart
3
CLAMP(L:120)
CLAMP(L:120)
product number: 0940712402

show photo
€
€ 2.50
add to cart
4
CLAMP
product number: 0940406414
supersession: 0940406415
notes: 09404-06433
€
€ 3.00
add to cart
5
GUIDE,WIRING HARNESS
GUIDE,WIRING HARNESS
product number: 3661944000
notes: 36619-44002
show photo
€
€ 1.50
add to cart
6
SCREW 6X12
SCREW 6X12
product number: 0211206128
supersession: 0211206127
notes: 02112-06127
show photo
€
€ 2.00
add to cart
7
WASHER
WASHER
product number: 0832221068
supersession: 0832221067
notes: 08322-01067
show photo
€
€ 1.50
add to cart
8-1
LOCK ASSEMBLY,STEERING
product number: 3710049200
notes: 37100-49201
€
€ 134.00
add to cart
8-2
SWITCH ASSY,IGNITION
SWITCH ASSY,IGNITION
product number: 3710049201

show photo
€
€ 134.00
add to cart
9
BOLT
product number: 3715247010
supersession: 3715247011
notes: 07130-0616B
€
€ 2.50
add to cart
10
LOCK WASHER
LOCK WASHER
product number: 0832121068
supersession: 0832121067
notes: 08321-01067
show photo
€
€ 1.50
add to cart
11-1
SWITCH ASSEMBLY,STOP LAMP
product number: 3774004570
supersession: 3774004571
rating:
notes: 37740-48071
€
€ 17.00
add to cart
11-2
SWITCH ASSEMBLY,STOP LAMP
product number: 3774004571
supersession: 3774004572
notes: 37740-48071
€
€ 17.00
add to cart
12
SPRING
product number: 0944306030
notes: 09443-06048
€
€ 4.50
add to cart
13
HORN ASSEMBLY,LOW PITCH
product number: 3850247000
notes: 38502-49001
€
€ 70.50
add to cart
14
BOLT 8X12
BOLT 8X12
product number: 0110708128
supersession: 0110708127
notes: 01500-08127
show photo
€
€ 2.50
add to cart
15
WASHER
WASHER
product number: 0832211088
supersession: 0832201087
notes: 08322-01087
show photo
€
€ 1.50
add to cart
16-1
WIRE
product number: 3685145400
supersession: 3685145401
notes: 36851-46E00
€
€ 16.00
add to cart
16-2
WIRE
product number: 3685145401
supersession: 3685146E00
notes: 36851-46E00
€
€ 16.00
add to cart
17-1
CLAMP L:35
CLAMP L:35
product number: 0940406401
supersession: 0940406402
notes: 09404-06432
show photo
€
€ 2.00
add to cart
17-2
CLAMP
product number: 0940408401
supersession: 0940408402
notes: 09404-08420
€
€ 3.50
add to cart
18
KEY,BLANK
KEY,BLANK
product number: 3714647010
rating:
show photo
€
€ 19.50
add to cart
