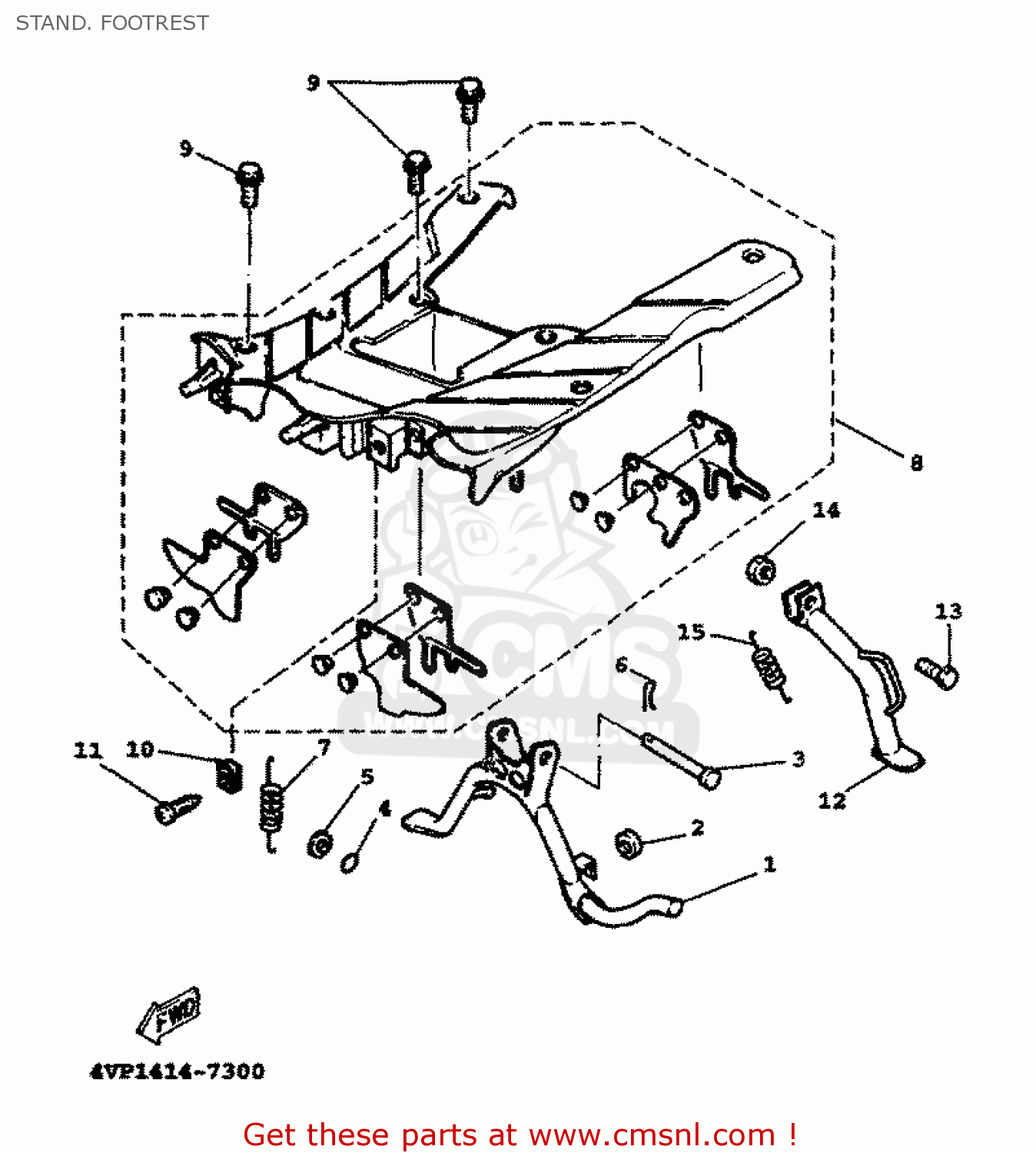

Yamaha YW100T 2000 5JY2 ALL COUNTRIES 205JY-516E1 stand. footrest

The Stand. Footrest assembly is constructed from several parts from which the Board Assy,footres is the most expensive. With a quantity of eight pieces, the Nut, Spring(4dh) is the most used part in the STAND. FOOTREST diagram. The most reasonably priced component used on the Yw100t 2000 5jy2 All Countries 205jy-516e1 Stand. Footrest is the O-ring.


view large image
Ref
product
price
Quantity

01
STAND, MAIN
product number: 4VPF711101
supersession: 5PJF711100
Hurry: only 1 left!

€ 71.00

02
STOPPER, MAIN STAND
STOPPER, MAIN STAND
product number: 4CWF711400

show photo

€ 2.00

03
PIN, CLEVIS(3KJ)
PIN, CLEVIS(3KJ)
product number: 9024010137

show photo

€ 6.50

04
O-RING
O-RING
product number: 93210108B1

show photo

€ 0.50

05
WASHER, PLATE (5E3)
WASHER, PLATE (5E3)
product number: 9020210120

show photo

€ 1.50

06
CLIP 136253750000
CLIP 136253750000
product number: 9046812006

show photo

€ 2.50

07
SPRING, TENSION
product number: 9050632857

€ 4.50

08
BOARD ASSY,FOOTRES
product number: 4VPX274800

€ 87.00

09
BOLT, WITH WASHER
BOLT, WITH WASHER
product number: 9011906821

show photo

€ 0.50

10
NUT, SPRING(4DH)
NUT, SPRING(4DH)
product number: 9018305807
supersession: 9018305042
show photo

€ 1.00

11
SCREW, TAPPING(4MV)
SCREW, TAPPING(4MV)
product number: 9770750016
supersession: 9016705077
show photo

€ 1.00

12
STAND, SIDE
product number: 4VPF731100

€ 12.50

13
BOLT
BOLT
product number: 9010910473

show photo

€ 1.50

14
NUT, U
NUT, U
product number: 9018510037
supersession: 9018510091
show photo

€ 4.50

15
SPRING, TENSION(46V)
product number: 9050620298

€ 5.00
