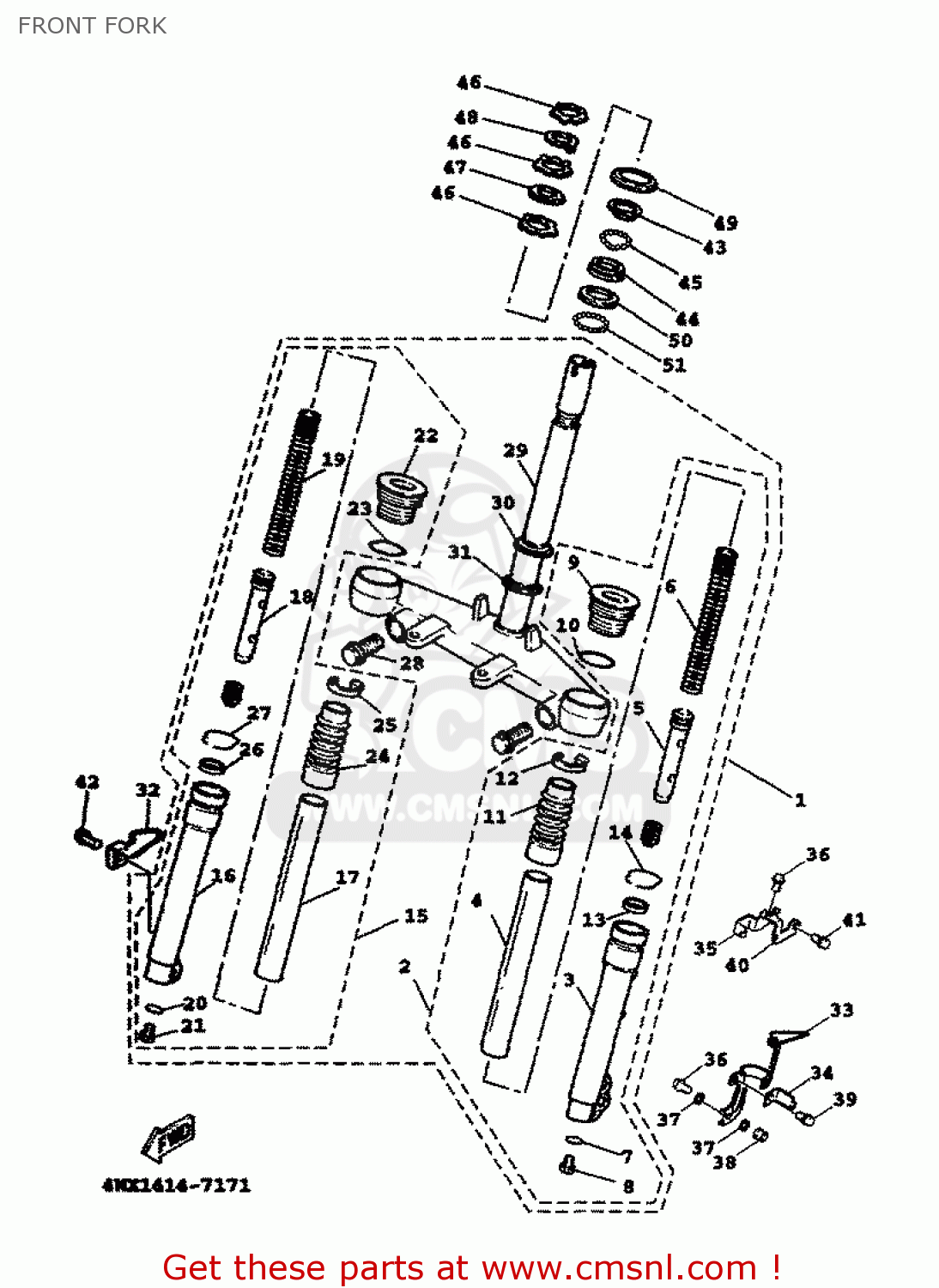

Yamaha YW100T 2000 5JY2 ALL COUNTRIES 205JY-516E1 front fork

info

Of all the components that make up this Front Fork the Bolt,flg has the lowest price. The fifty-two Yw100t 2000 5jy2 All Countries 205jy-516e1 Front Fork component parts are all listed in this schematic. Parts such as the Front Fork: Inner Tube Comp.1, Inner Tube Comp.1, Gasket (nas), Holder, Brake Hose 2 are included in the Yw100t 2000 5jy2 All Countries 205jy-516e1 Front Fork parts fiche.

view large image

Ref


product

price

Quantity

01

FRONT FORK ASSY

product number: 4WXF3100111V
notes: (FAIRY SILVER)

€ 408.00

02

FRONT FORK ASSY (L

product number: 4WXF3102101V
notes: (FAIRY SILVER)

€ 118.50

03

TUBE, OUTER 1

product number: 4JLF3126001V
notes: (FAIRY SILVER)

€ 57.00

04

INNER TUBE COMP.1

product number: 4WXF311000

€ 40.50

05

CYLINDER COMP.,

product number: 4WXF317000

€ 21.50

06

SPRING, FRONT FORK

product number: 4WXF314110

€ 5.00

07

GASKET (NAS)

product number: 3GFF315800

€ 6.50

08

BOLT, HEXAGON SOCKET HEAD

product number: 3GFF318100

€ 4.50

09

PLUG, INNER TUBE

product number: 4WXF315400

€ 1.00

10

O-RING

product number: 3GFF314700
supersession: 1T82311400

€ 3.00

11

BOOT

product number: 4WXF319110
supersession: 4WXF319100
Hurry: only 2 left!

€ 15.00

12

BAND

product number: 4TEF319200

show photo

€ 2.00

13

OIL SEAL

product number: 4JLF314500
supersession: 5SUF314500

€ 2.50

14

CLIP, OIL SEAL

product number: 3NWF315600

€ 1.00

15

FRONT FORK ASSY (R

product number: 4WXF3103101V
notes: (FAIRY SILVER)

€ 118.50

16

TUBE, OUTER 2

product number: 4JLF3136001V
notes: (FAIRY SILVER)

€ 57.00

17

INNER TUBE COMP.1

product number: 4WXF311000

€ 40.50

18

CYLINDER COMP.,

product number: 4WXF317000

€ 21.50

19

SPRING, FRONT FORK

product number: 4WXF314110

€ 5.00

20

GASKET (NAS)

product number: 3GFF315800

€ 6.50

21

BOLT, HEXAGON SOCKET HEAD

product number: 3GFF318100

€ 4.50

22

PLUG, INNER TUBE

product number: 4WXF315400

€ 1.00

23

O-RING

product number: 3GFF314700
supersession: 1T82311400

€ 3.00

24

BOOT

product number: 4WXF319110
supersession: 4WXF319100
Hurry: only 2 left!

€ 15.00

25

BAND

product number: 4TEF319200

show photo

€ 2.00

26

OIL SEAL

product number: 4JLF314500
supersession: 5SUF314500

€ 2.50

27

CLIP, OIL SEAL

product number: 3NWF315600

€ 1.00

28

BOLT 1

product number: 3GFF334600

€ 1.50

29

UNDER BRACKET COMP

UNDER BRACKET COMP

product number: 4WXF334001
Hurry: only 1 left!
show photo

€ 142.00

30

RACE, BALL 1

product number: 1MHF341100
supersession: 4C6F341110
show photo

€ 9.00

31

SEAL, STEERING

product number: 3KWF346200

show photo

€ 1.50

32

HOLDER, CABLE

product number: 3GFF331700

€ 4.50

33

HOLDER, BRAKE HOSE

product number: 4VPF587501

€ 17.50

34

HOLDER, BRAKE HOSE 2

product number: 5FAF587600

€ 1.50

35

HOLDER, BRAKE HOSE

product number: 4VPF587600

€ 11.00

36

BOLT, FLANGE

product number: 9581706020

show photo

€ 1.00

37

WASHER, PLATE(52G)

WASHER, PLATE(52G)

product number: 90201064J1

show photo

€ 2.50

38

NUT, U (4KJ)

product number: 9560706100
supersession: 9561706100

€ 4.00

39

BOLT, WITH WASHER (10V)

BOLT, WITH WASHER (10V)

product number: 9011905062
supersession: 9701705012
show photo

€ 1.50

40

HOLDER, BRAKE HOSE

product number: 5FJF588600

€ 3.50

41

BOLT,FLG

product number: 9580L06012

show photo

€ 0.50

42

BOLT,FLANGE (4MY)

product number: 9580706010
supersession: 9581706010

€ 0.50

43

RACE, BALL 1

product number: 22F2341101
supersession: BP22341100
rating:
show photo

€ 8.00

44

RACE, BALL 2

product number: 22F2341201
supersession: BP22341200
rating:
show photo

€ 14.50

45

BALL

product number: 9350316003

show photo

€ 0.50

45

BALL,STEEL.,6

product number: 9621106000
alternative part
show photo

€ 0.50

46

NUT(3XP)

product number: 9017925615
supersession: 9017925811
show photo

€ 15.00

47

WASHER, PLATE (26H)

WASHER, PLATE (26H)

product number: 9020226142

show photo

€ 1.50

48

WASHER, SPECIAL

WASHER, SPECIAL

product number: 4VPF341800

show photo

€ 4.50

49

COVER, BALL RACE 2

COVER, BALL RACE 2

product number: 4TEF341600

show photo

€ 1.50

50

RACE, BALL (2)

product number: 1562341200
supersession: B6E2341200
show photo

€ 15.00

51

BALL

product number: 9350104011

show photo

€ 0.50

52

RACE BALL KIT

product number: 3UHW234101

€ 62.00
