Yamaha SL351 1968 carburetor

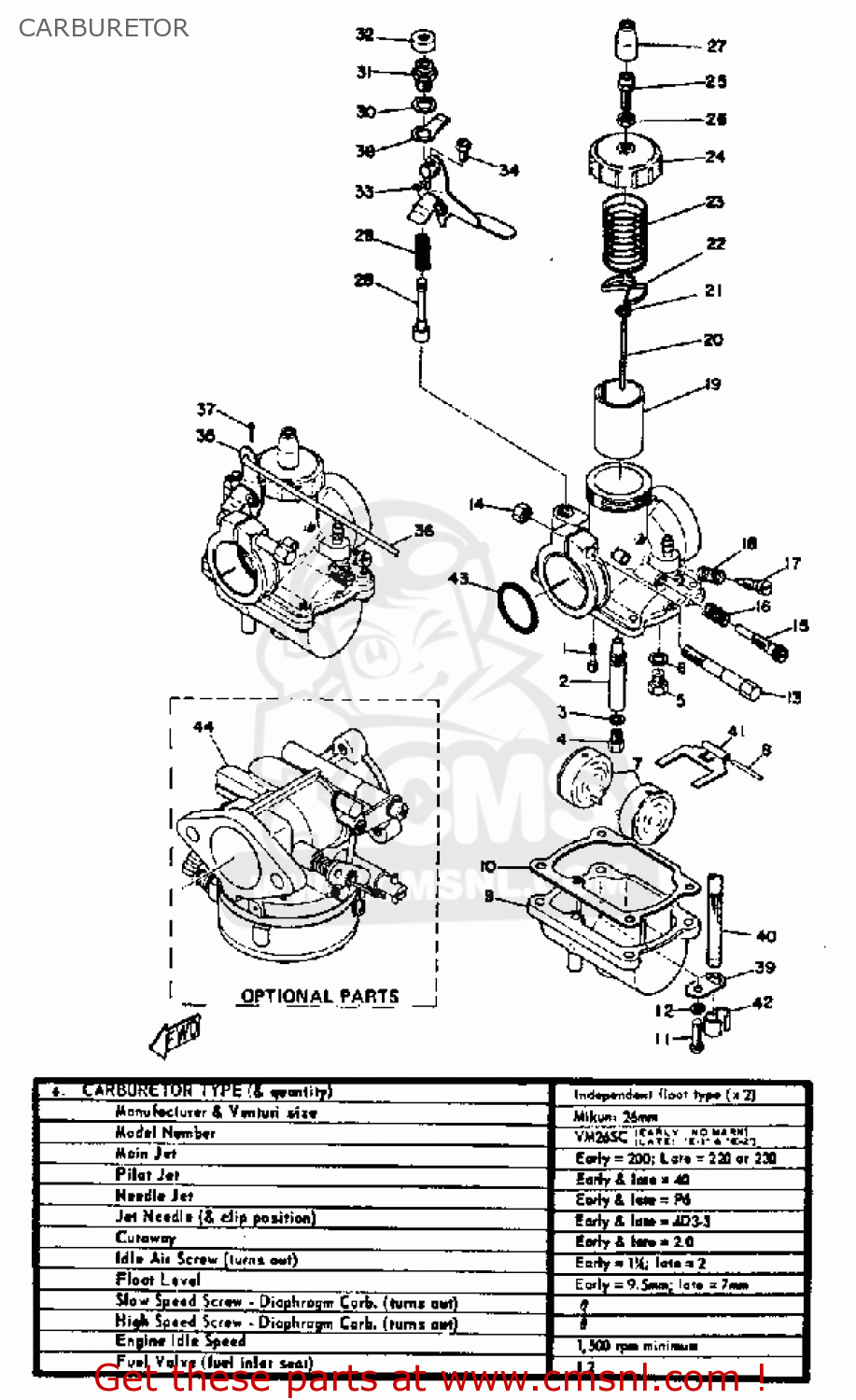

This Carburetor diagram displays the required parts for the Sl351 1968 Carburetor. The Sl351 1968 Carburetor consists of fifty-one pieces with the Carburetor Asy 1 being the most expensive.


view large image
Ref
product
price
Quantity

1
CARBURETOR ASY 1
product number: 8021410162

€ 138.00

2
CARBURETOR ASY 2
product number: 8021410262

€ 124.00

1
JET, PILOT  (# 40)
JET, PILOT (# 40)
product number: 1931414240A1

show photo

€ 13.00

2
NOZZLE,MAIN
product number: 8021414146

€ 0.00

3
WASHER,MAIN JET
WASHER,MAIN JET
product number: 1371415300

show photo

€ 2.50

4
JET, MAIN #180
JET, MAIN #180
product number: 1371414336A1
notes: U.R.
show photo

€ 8.50

4
JET,MAIN #190
JET,MAIN #190
product number: 1371414338A0
notes: U.R.
show photo

€ 8.50

4
JET, MAIN #200
JET, MAIN #200
product number: 1371414340A1
notes: U.R. STD
show photo

€ 8.50

4
JET, MAIN #210
JET, MAIN #210
product number: 1371414342A1
notes: U.R.
show photo

€ 8.50

4
JET, MAIN #220
JET, MAIN #220
product number: 1371414344A1
notes: U.R.
show photo

€ 8.50

5
NEEDLE VALVE ASY
product number: 1681419012

€ 67.00

6
WASHER, VALVE SEAT
WASHER, VALVE SEAT
product number: 2141419500

show photo

€ 3.00

7
FLOAT
FLOAT
product number: 2141418500

show photo

€ 19.00

8
PIN, FLOAT
PIN, FLOAT
product number: 1271418600

show photo

€ 3.50

9
UNKNOW PRODUCT ID
UNKNOW PRODUCT ID
product number: 00000000000
notes: N/A
show photo

€ 0.00

10
GASKET, FLOAT CHAMBER (MCA)
GASKET, FLOAT CHAMBER (MCA)
product number: 1561418400

show photo

€ 12.00

11
SCREW, PAN HEAD (481)
SCREW, PAN HEAD (481)
product number: 9850304014
supersession: 9850404014
show photo

€ 3.50

12
WASHER, SPRING
WASHER, SPRING
product number: 9290104100
supersession: 9299004100
show photo

€ 1.00

13
UNKNOW PRODUCT ID
UNKNOW PRODUCT ID
product number: 00000000000
notes: N/A
show photo

€ 0.00

14
NUT(661)
NUT(661)
product number: 9538006600
supersession: 9560106200
rating:
show photo

€ 1.50

15
THROTTLE SCREW SET
THROTTLE SCREW SET
product number: 24X1410300
supersession: 40T1410300
show photo

€ 14.50

16
SPRING, THROTTLE STOP
SPRING, THROTTLE STOP
product number: 1371413300

show photo

€ 3.50

17
AIR ADJUST SCREW SET
AIR ADJUST SCREW SET
product number: 127W141200

show photo

€ 14.00

18
SPRING, AIR ADJUSTING
SPRING, AIR ADJUSTING
product number: 1271413400

show photo

€ 6.00

19
VALVE, THROTTLE (C.A.2.0)
VALVE, THROTTLE (C.A.2.0)
product number: 2041411220

show photo
€ 41.50
€ 31.50

191
VALVE, THROTTLE (R. H.) (#2.0)
product number: 2041411320
Hurry: only 1 left!

€ 32.00

20
NEEDLE
product number: 1561411603

€ 11.50

21
CLIP
CLIP
product number: 1371413700

show photo

€ 11.00

22
STOPPER, CABLE
STOPPER, CABLE
product number: 2461413200

show photo

€ 7.50

23
SPRING, THROTTLE VALVE
SPRING, THROTTLE VALVE
product number: 2041413100

show photo

€ 8.00

24
TOP, MIXING CHAMBER
TOP, MIXING CHAMBER
product number: 8021415800

show photo

€ 17.00

25
CABLE ADJUST SCREW SET
CABLE ADJUST SCREW SET
product number: 12G1410600

show photo

€ 9.00

26
NUT, WIRE ADJUSTING
NUT, WIRE ADJUSTING
product number: 8021416100

show photo

€ 3.50

27
CAP
CAP
product number: 8021416900
supersession: 8A71416900
show photo

€ 8.50

28
PLUNGER, STARTER
PLUNGER, STARTER
product number: 1321417100

show photo

€ 15.50

29
SPRING, PLUNGER
SPRING, PLUNGER
product number: 1561413500

show photo

€ 3.50

30
WASHER,STARTER LVR
WASHER,STARTER LVR
product number: 1321417900

show photo

€ 2.00

31
CAP, PLUNGER
CAP, PLUNGER
product number: 8021417400

show photo

€ 5.00

32
COVER, PLUNGER CAP
COVER, PLUNGER CAP
product number: 8021417300

show photo

€ 3.00

32
COVER, PLUNGER CAP (NON O.E. ALTERNATIVE)
COVER, PLUNGER CAP (NON O.E. ALTERNATIVE)
product number: 8021417300P
alternative part
show photo

€ 3.50

33
LEVER, STARTER (L.H.) (170-14175-00) ISO
product number: 8021417500

€ 6.50

34
SCREW, ROD L.H. - ISO
product number: 1931448600

€ 1.50

35
LEVER, STARTER (R. H)
LEVER, STARTER (R. H)
product number: 1701417600
Hurry: only 1 left!
show photo
€ 12.50
€ 10.00

36
ROD, STARTER LEVER R.H.
ROD, STARTER LEVER R.H.
product number: 1701417700
Hurry: only 1 left!
show photo

€ 3.50

37
PIN, COTTER (6G8)
PIN, COTTER (6G8)
product number: 9149012012

show photo

€ 1.50

38
PLATE,STARTER LVR
PLATE,STARTER LVR
product number: 1701417800

show photo

€ 1.00

39
PLATE
PLATE
product number: 1321414600

show photo

€ 0.50

40
UNKNOW PRODUCT ID
UNKNOW PRODUCT ID
product number: 00000000000
notes: N/A
show photo

€ 0.00

41
ARM,FLOAT
product number: 8021418700

€ 0.00

42
CLIP, WIRE 2072639100
CLIP, WIRE 2072639100
product number: 9046815009

show photo

€ 2.00

43
UNAVAILABLE IN PRICE BOOK
product number: 9321017105

€ 0.00

44
UNKNOW PRODUCT ID
UNKNOW PRODUCT ID
product number: 00000000000
notes: N/A SINGLE CARBURETO
show photo

€ 0.00
