Yamaha SL338F 1974 oil tank

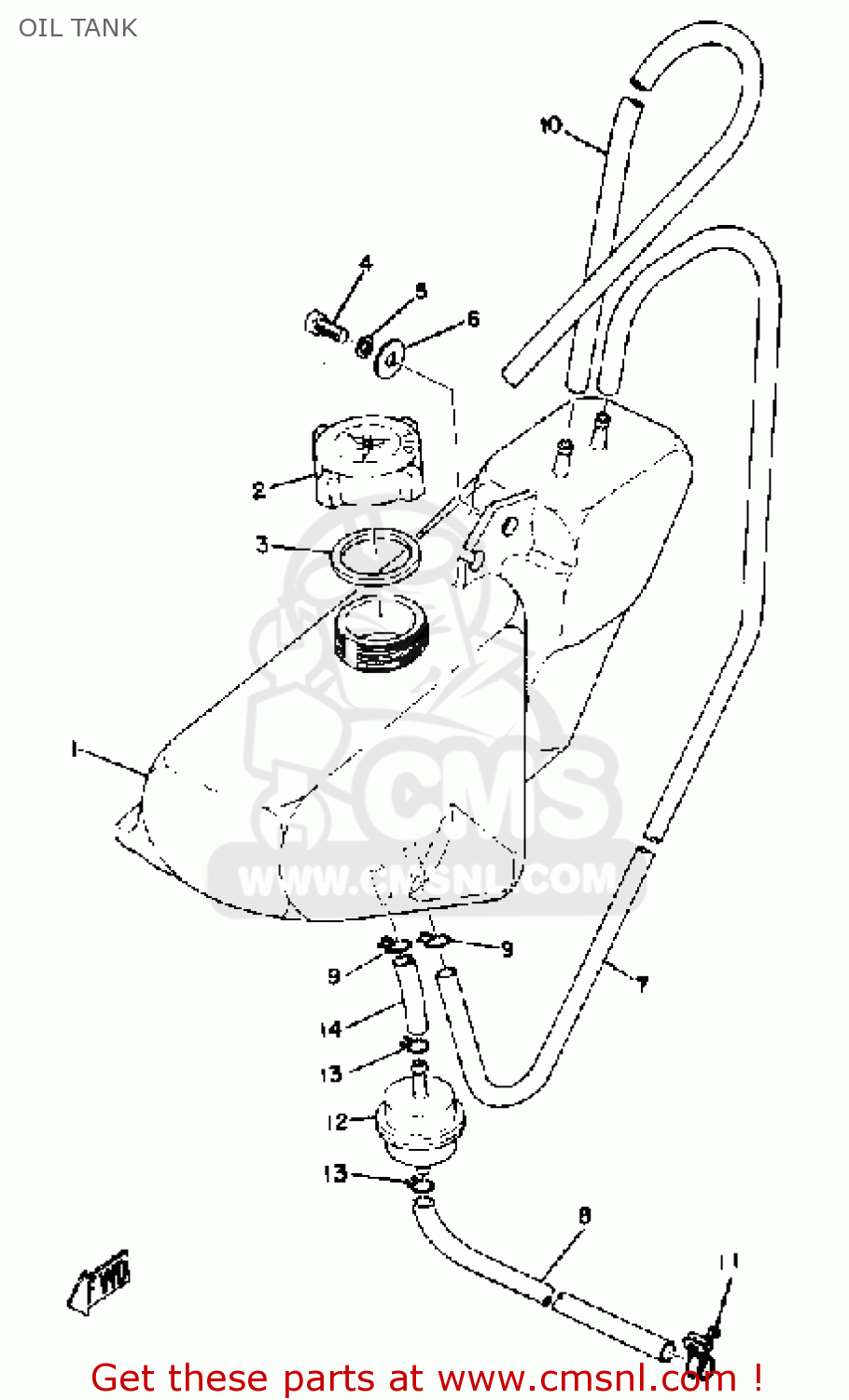

This Oil Tank diagram displays the required parts for the Sl338f 1974 Oil Tank. A sample from the products for the Oil Tank include: Washer (838-77218-00), Clamp,hose, Housing Strainer Assy, Hose.


view large image
Ref
product
price
Quantity

1
TANK OIL
product number: 8612175101

€ 58.00

2
BODY, CAP
BODY, CAP
product number: 8632177100
supersession: 8LU2177100
show photo

€ 23.50

3
GASKET, TANK (867) (NAS)
GASKET, TANK (867) (NAS)
product number: 9043031003

show photo

€ 2.50

4
SCREW, PAN HEAD (7H3)
SCREW, PAN HEAD (7H3)
product number: 9858005016
supersession: 9788505016
rating:
show photo

€ 1.50

5
YBS67-5 WASHER, SPRING
YBS67-5 WASHER, SPRING
product number: 9299005100

show photo

€ 1.00

6
WASHER (838-77218-00)
WASHER (838-77218-00)
product number: 9020105036
supersession: 90201061A5
show photo

€ 1.50

7
GAUGE,OIL
product number: 8412179200

€ 0.00

8
HOSE (806-24319-00)
product number: 9044609051

€ 4.50

9
CLIP, PIPE
product number: 8102435600

€ 6.00

10
HOSE (814-24318-00)
product number: 9044609092
supersession: 9044609348

€ 9.50

11
CLAMP,HOSE
product number: 9046009001

€ 5.00

12
HOUSING STRAINER ASSY
HOUSING STRAINER ASSY
product number: J101341000
Hurry: only 1 left!
show photo

€ 13.00

13
CLIP, PIPE
product number: 8102435600

€ 6.00

14
HOSE
product number: 9044609052

€ 0.00
