Yamaha PX150TRX 1999 electrical 3

info

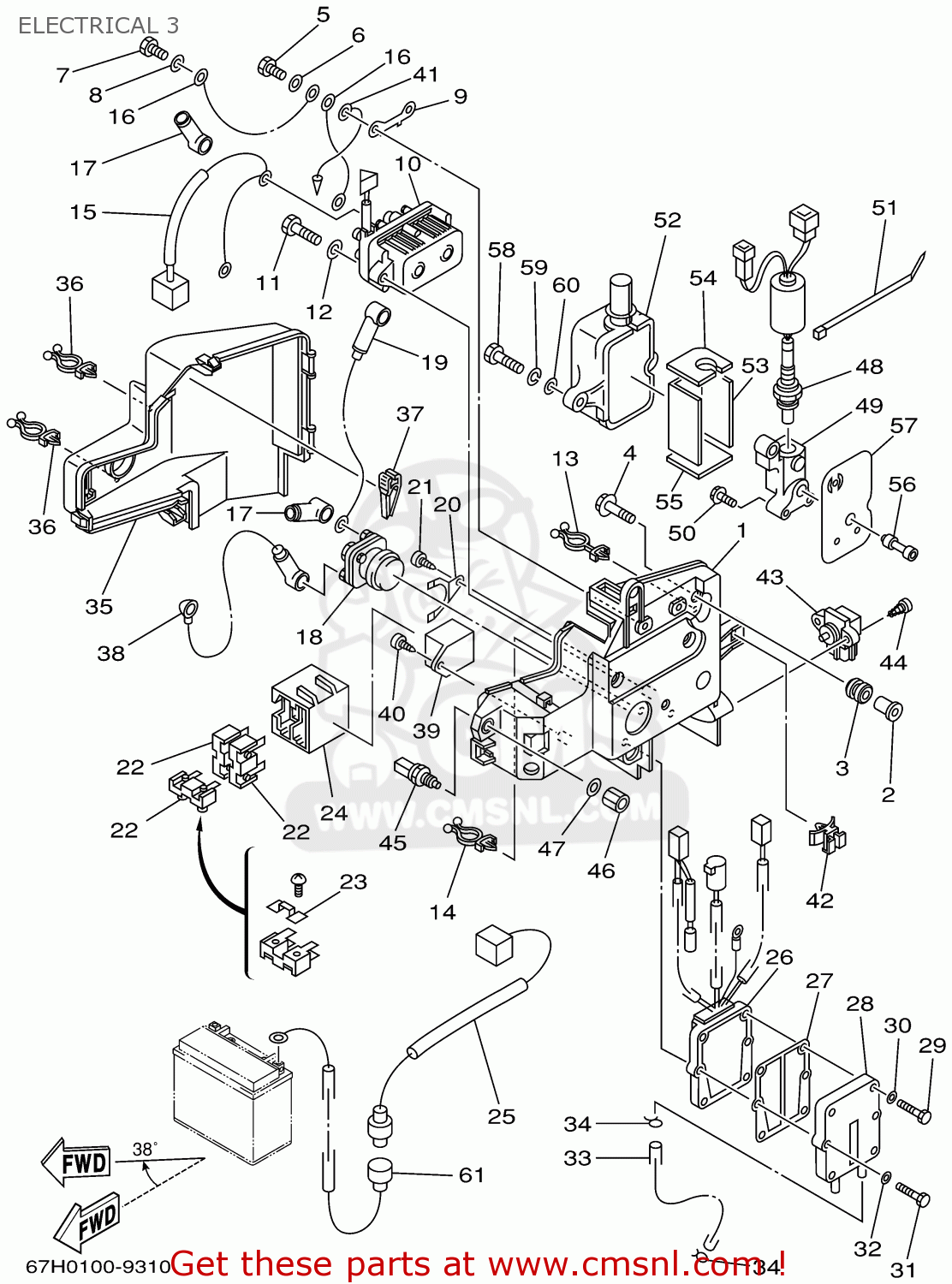

A sample from the products for the Electrical 3 include: Screw, Tapping(61a), Holder, Relay, Sensor, Pressure, Seal, Cylinder 3. This schematic depicts all components used in the Px150trx 1999 Electrical 3 partslist. The Pipe 1 is the most widely applied product in the PX150TRX 1999 ELECTRICAL 3 ( five times ).

view large image

Ref


product

price

Quantity

1

BRACKET

product number: 67H8194800

€ 165.00

2

PIPE 1

product number: 6244254200
supersession: 9038706119

€ 6.00

3

DAMPER

product number: 6A08231700
supersession: 6A08231701

€ 2.00

4

BOLT, WITH WASHER(6N4)

product number: 9011906M65
supersession: 9011906M95

€ 3.50

5

BOLT(GA1)

product number: 9709506012
supersession: 9708006012

€ 2.00

6

WASHER, PLAIN (646)

product number: 9299506600
supersession: 9299006600

€ 1.00

7

BOLT(GA1)

product number: 9709506012
supersession: 9708006012

€ 2.00

8

WASHER, PLAIN (646)

product number: 9299506600
supersession: 9299006600

€ 1.00

9

CONNECTOR

product number: 61A8714900

€ 9.00

10

RELAY ASSY

product number: 61A8195000
supersession: 61A8195001

€ 109.00

11

BOLT

product number: 9701306030

show photo

€ 5.00

12

WASHER, PLAIN (663)

product number: 9290306600
supersession: 9299006600

€ 1.00

13

CLAMP(65J)

product number: 9046418M46

€ 2.00

14

CLAMP(6H4)

product number: 9046415M27

€ 1.50

15

WIRE, LEAD

product number: 61A8194910

€ 33.50

16

WIRE, LEAD

product number: 61A8194900
supersession: 6H28194911

€ 21.00

17

COVER, LEAD WIRE

product number: 6G58211900
supersession: 6G58211910

€ 9.50

18

STARTER RELAY ASSY

product number: 61A8194100

€ 343.50

19

WIRE, LEAD

product number: 67H8211710

€ 37.00

20

HOLDER, RELAY

product number: 61A8195200

€ 8.00

21

SCREW, TAPPING(61A)

SCREW, TAPPING(61A)

product number: 9778050612

show photo

€ 1.50

22

FUSE HOLDER ASSY

product number: 61A8215000
supersession: 61A8215001

€ 58.00

23

FUSE(12V-80A)

product number: 61A8215100

€ 19.00

24

STAY, FUSE HOLDER

product number: 61A8215300

€ 22.50

25

WIRE, LEAD

product number: 67H8194910

€ 33.50

26

RECTIFIER & REGULATOR ASSY

product number: 67H8196000

€ 327.50

27

PLATE, RECTIFIER FITTING

product number: 61A81975A0
supersession: 69J81975A0

€ 12.50

28

COVER, RECTIFIER

product number: 61A81972009M
supersession: 69J81972029S

€ 67.50

29

BOLT(62Y)

product number: 9701306025

€ 1.50

30

WASHER, PLAIN (663)

product number: 9290306600
supersession: 9299006600

€ 1.00

31

BOLT

product number: 9701306030

show photo

€ 5.00

32

WASHER, PLAIN (663)

product number: 9290306600
supersession: 9299006600

€ 1.00

33

HOSE 626243170000

product number: 9044509105
supersession: 90445093J2

€ 3.00

34

CLIP, PIPE 6162435600

CLIP, PIPE 6162435600

product number: 9046708004

show photo

€ 1.50

35

COVER

product number: 67H8194200

€ 63.50

36

CLAMP(6H4)

product number: 9046415M27

€ 1.50

37

PULLER, FUSE

product number: 67F2812A00

€ 4.50

38

WIRE, LEAD

product number: 67H8211700

€ 37.00

39

RELAY ASSY

product number: 65L8195000
supersession: 65L8195001

€ 419.50

40

SCREW, TAPPING(65J)

product number: 9778060625

€ 2.50

41

WIRE, EARTH LEAD

product number: 66K8251900

€ 9.00

42

CLAMP(65J)

product number: 9046409M47

€ 3.00

43

SENSOR, PRESSURE

product number: 67H8238000

€ 682.50

44

SCREW, TAPPING(65J)

product number: 9778060625

€ 2.50

45

THERMOSENSOR

product number: 65L8588600

€ 101.50

46

NUT(65J)

product number: 9017012M36

€ 14.00

47

WASHER (692)

product number: 9020112M34

show photo

€ 1.50

48

SENSOR

product number: 67H8592A00

€ 700.00

49

HOLDER

product number: 65L1139500

show photo

€ 395.00

50

BOLT, WITH WASHER(65J)

product number: 9011906M74

€ 2.50

51

CLAMP

product number: 9046513M18
supersession: 9046513M39

€ 2.50

52

CASE, UNDER

product number: 65L8583200

show photo

€ 57.00

53

GASKET (NAS)

product number: 65L1135400

€ 24.50

54

GASKET, HOLDER (NAS)

product number: 65L1131N00

€ 8.50

55

GASKET, HOLDER (NAS)

product number: 65L1139600

€ 9.50

56

JOINT

product number: 65L1135300
supersession: 65L1135310

€ 77.50

57

SEAL, CYLINDER 3

product number: 65L1135700
supersession: 68FW113500

€ 27.00

58

BOLT(6U2)

product number: 9709506030
supersession: 9708006030
show photo

€ 3.00

59

WASHER(6A1)

product number: 9299506100

show photo

€ 0.50

60

WASHER, PLAIN (646)

product number: 9299506600
supersession: 9299006600

€ 1.00

61

WIRE, LEAD

product number: 67H8194900
notes: AP 2.7M

€ 31.50
