Yamaha PX150TRX 1999 fuel

info

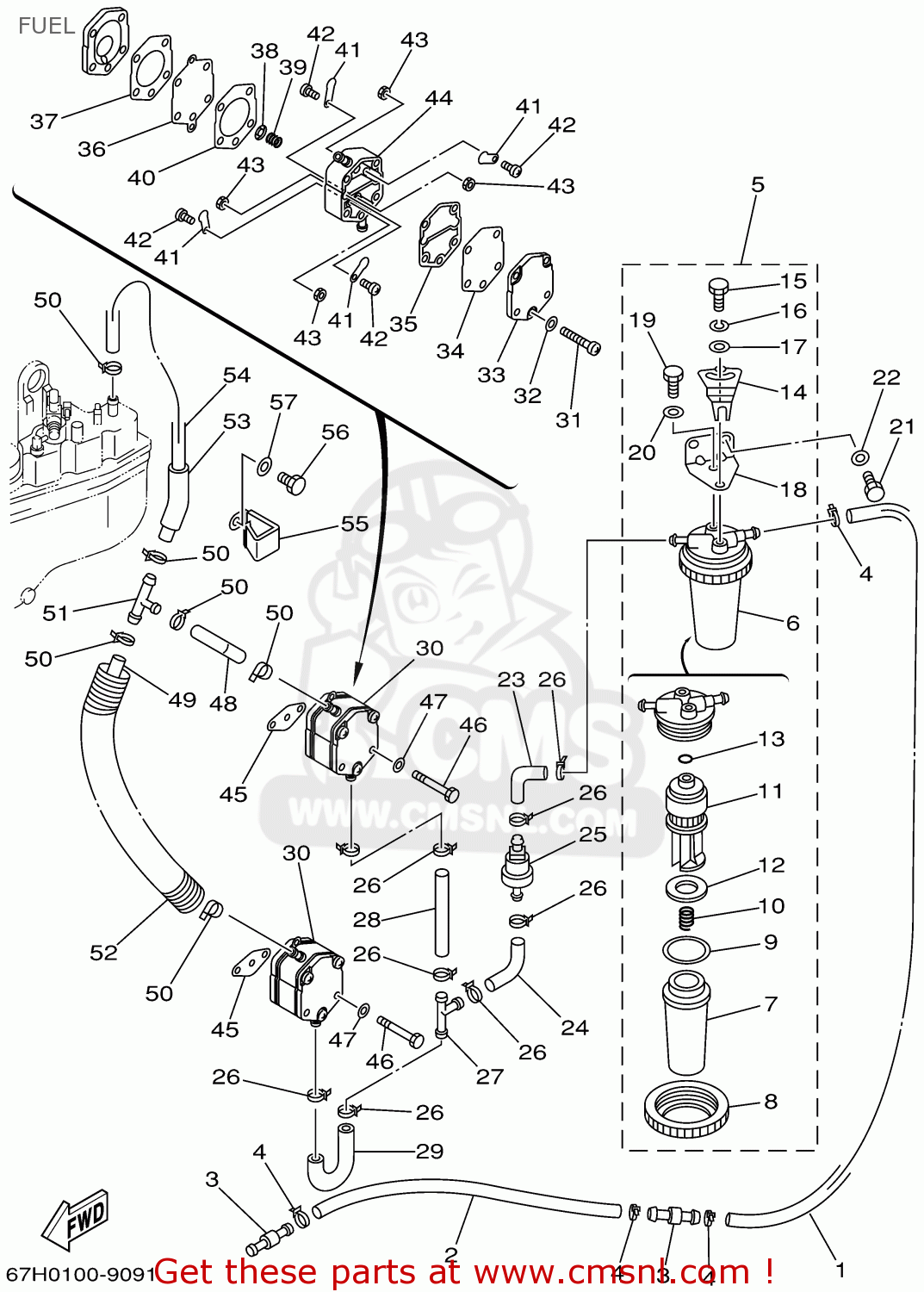

Of all the components used in this assembly the Water Separator Assembly is the most expensive. A sample from the products for the Fuel include: Pipe, Fuel 1, Pipe, Joint 3, Screw, Pan Head, Spring. The fifty-seven Px150trx 1999 Fuel component parts are all listed in this schematic.

view large image

Ref


product

price

Quantity

1

PIPE 3

product number: 61A2431300

€ 19.00

2

HOSE(L2700)

product number: 9044513M17

€ 86.00

3

PIPE, JOINT 3

product number: 6R32437700

€ 5.50

4

CLAMP (6E5)

product number: 9046511M10
supersession: 9046510098
show photo

€ 0.50

5

WATER SEPARATOR ASSEMBLY

product number: 67H2440900

€ 355.50

6

FILTER ASSY

product number: 65L2456000
supersession: 6P32456009

€ 275.00

7

CUP, FILTER

product number: 61A2452100

€ 29.00

8

NUT

product number: 61A2453100

€ 16.50

9

O-RING

product number: 61A2456400
supersession: 61A2456401
show photo

€ 5.50

10

SPRING

product number: 65L2457700

€ 9.50

11

ELEMENT, FILTER

ELEMENT, FILTER

product number: 65L2456300

show photo

€ 37.00

12

FLOAT, WATER LEVEL

product number: 61A2446900

€ 6.00

13

O-RING

product number: 65L2456400

€ 7.00

14

HOLDER, FILTER

product number: 65L2455800

€ 36.00

15

BOLT(GA1)

product number: 9709506016
supersession: 97D9506016
show photo

€ 0.50

16

WASHER(6A1)

product number: 9299506100

show photo

€ 0.50

17

WASHER, PLATE 6202457600

product number: 9020106068
supersession: 9020106M02

€ 2.50

18

BRACKET, FILTER

product number: 67H2456600

€ 25.50

19

BOLT(680)

product number: 9709506014
supersession: 9708006014
show photo

€ 3.50

20

WASHER, PLAIN (646)

product number: 9299506600
supersession: 9299006600

€ 1.00

21

BOLT(GA1)

product number: 9709506016
supersession: 97D9506016
show photo

€ 0.50

22

WASHER, PLAIN (646)

product number: 9299506600
supersession: 9299006600

€ 1.00

23

PIPE, FUEL 1

product number: 61A2431100

€ 3.50

24

PIPE 6

product number: 61U2431600

€ 14.50

25

FUEL FEED ASSY

product number: 6R52440800
supersession: 6R52440810
show photo

€ 21.00

26

CLAMP (6E5)

product number: 9046511M10
supersession: 9046510098
show photo

€ 0.50

27

PIPE, JOINT 3

product number: 6E52437800

€ 35.00

28

HOSE (L85)

product number: 9044513M31
supersession: 9044513579

€ 3.50

29

PIPE, FUEL 1

product number: 67H2431100

€ 9.50

30

FUEL PUMP ASSY

product number: 6E52441010
supersession: 6E52441003

€ 89.00

31

SCREW, PAN HEAD

product number: 9850305035
supersession: 9858005035

€ 3.00

32

WASHER, PLATE(651)

product number: 9290305600
supersession: 9299005600

€ 1.00

33

COVER, PUMP

product number: 6E52441300

€ 44.00

34

DIAPHRAGM

product number: 6E52447100

show photo

€ 37.00

35

GASKET, BODY 2 (NAS)

GASKET, BODY 2 (NAS)

product number: 6E52443500

show photo

€ 10.00

36

DIAPHRAGM

product number: 6E52441110
supersession: 6E52441100

€ 27.00

37

GASKET, BODY 3 (NAS)

product number: 6E52443600

€ 11.00

38

SEAT,SPRING

product number: 6482442400

show photo

€ 3.00

39

SPRING, DIAPHRAGM

product number: 6E52442300

€ 11.00

40

GASKET, BODY (NAS)

GASKET, BODY (NAS)

product number: 6E52443402

show photo

€ 6.50

41

VALVE, CHACK

product number: 6A02442101
supersession: 62Y2442101

€ 12.00

42

SCREW, PAN HEAD

product number: 6A01432500

€ 2.00

43

NUT (6G8)

product number: 9538003600

show photo

€ 1.00

44

BODY 1

product number: 6E52441210

€ 102.00

45

GASKET,FUEL PUMP (NAS)

GASKET,FUEL PUMP (NAS)

product number: 65024431A0

show photo

€ 2.00

46

BOLT(61K)

product number: 9709506050
supersession: 9708006050

€ 3.00

47

WASHER, PLAIN (646)

product number: 9299506600
supersession: 9299006600

€ 1.00

48

PIPE 6

product number: 61U2431600

€ 14.50

49

PIPE 3

product number: 6E52431300

€ 22.50

50

CLAMP (6E5)

product number: 9046511M10
supersession: 9046510098
show photo

€ 0.50

51

PIPE, JOINT 3

product number: 6E52437800

€ 35.00

52

TUBE

product number: 6H18355700
supersession: 6N78355700

€ 5.50

53

HOSE(6G4)

product number: 9044615M07

show photo

€ 1.00

54

HOSE (L235)

product number: 9044513M12
supersession: 9044513M11

€ 15.00

55

CLAMP(6T4)

product number: 9046508M33

€ 6.50

56

BOLT(GA1)

product number: 9709506012
supersession: 9708006012

€ 2.00

57

WASHER, PLAIN (646)

product number: 9299506600
supersession: 9299006600

€ 1.00
