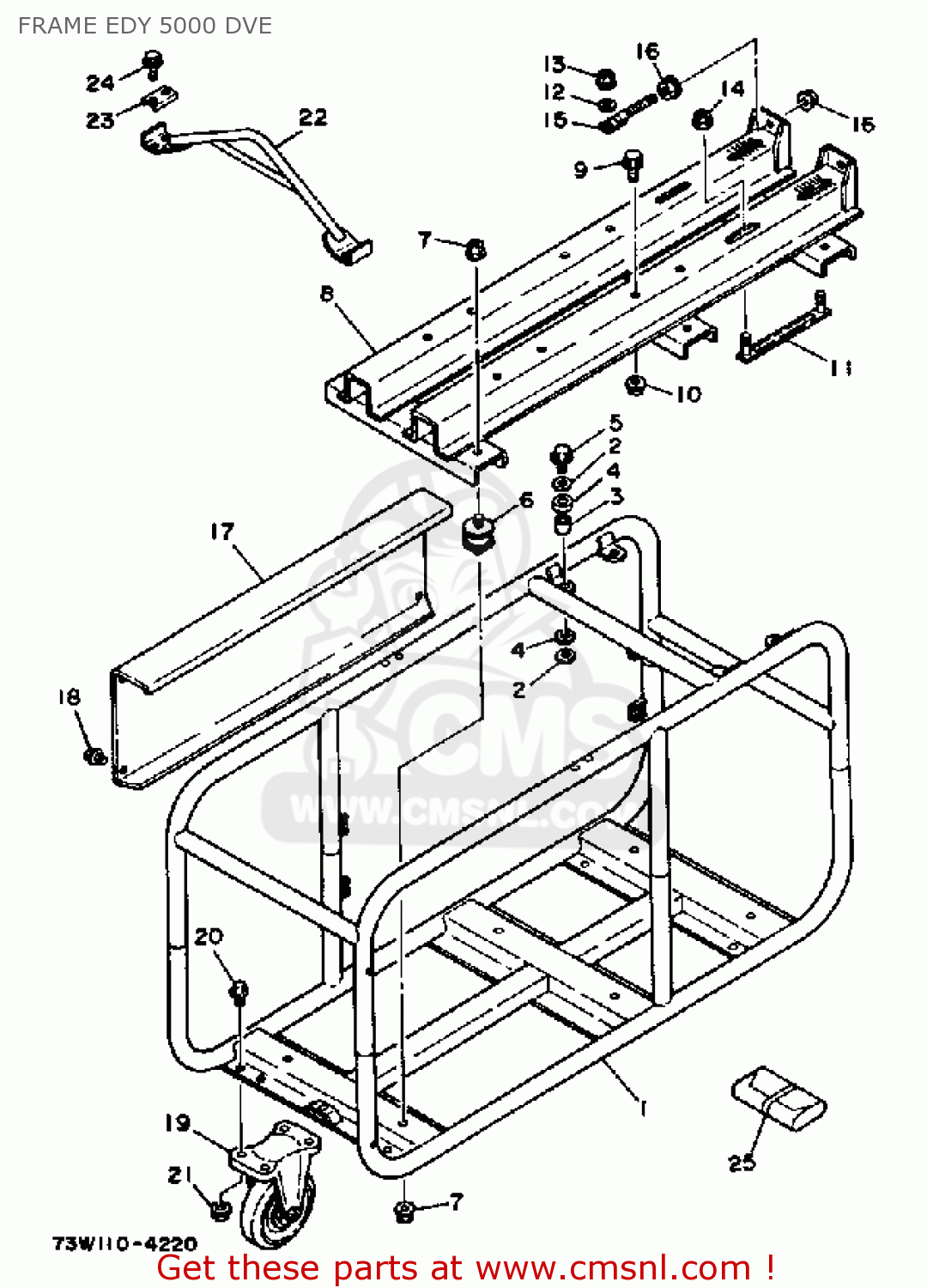

Yamaha EDY3000DV GENERATOR frame edy 5000 dve

info set as my vehicle my vehicles

Some items from this specific schematic: Insulator, Mounting, Unavailable In Price Book, Nut, Flange(24y), Nut, Flange(24y). The Yamaha FRAME EDY 5000 DVE has twenty-five products enlisted in the schematic.


view large image
Ref
product
price
Quantity
1
FRAME ASSY
product number: 75N228100020
notes: CRYSTAL SLV
€
€ 1078.50
add to cart
2
WASHER (878-GISOO).
WASHER (878-GISOO).
product number: 9020106407
supersession: 9020106747
show photo
€
€ 3.50
add to cart
3
COLLAR 306847573000
COLLAR 306847573000
product number: 9038706387

show photo
€
€ 1.50
add to cart
4
WASHER, PLATE(73T)
product number: 9020211155
€
€ 1.50
add to cart
5
BOLT, FLANGE (8H8)
product number: 9580106030
supersession: 9582106030
€
€ 1.00
add to cart
6
INSULATOR, MOUNTING
product number: 73T2289100
€
€ 40.00
add to cart
7
NUT, FLANGE(24Y)
NUT, FLANGE(24Y)
product number: 9570110500
supersession: 9570410500
rating:
show photo
€
€ 1.50
add to cart
8
COMMON BED COMP.
product number: 75K2280E0020
notes: CRYSTAL SLV
€
€ 0.00
add to cart
9
BOLT, FLANGE (4E2)
BOLT, FLANGE (4E2)
product number: 9581110030
supersession: 9581710030
notes: *
show photo
€
€ 2.50
add to cart
10
NUT, FLANGE(24Y)
NUT, FLANGE(24Y)
product number: 9570110500
supersession: 9570410500
rating:
show photo
€
€ 1.50
add to cart
11
PLATE 9
product number: 73T2284M00
€
€ 17.00
add to cart
12
YBS67-10 WASHER, SPRING
YBS67-10 WASHER, SPRING
product number: 9299010100

show photo
€
€ 1.50
add to cart
13
UNAVAILABLE IN PRICE BOOK
product number: 9107910279
€
€ 0.00
add to cart
14
NUT, FLANGE(24Y)
NUT, FLANGE(24Y)
product number: 9570110500
supersession: 9570410500
rating:
show photo
€
€ 1.50
add to cart
15
NUT, ADJUST BOLT
product number: 73T2280N00
€
€ 12.00
add to cart
16
NUT, FLANGE(24Y)
NUT, FLANGE(24Y)
product number: 9570110500
supersession: 9570410500
rating:
show photo
€
€ 1.50
add to cart
17
COVER, V-BELT
product number: 75K2289E0086
notes: NAIAD BLUE
€
€ 75.00
add to cart
18
BOLT, FLANGE(1LN)
product number: 9581106010
supersession: 9581706010
€
€ 0.50
add to cart
19
CASTER 1
product number: 73T2284500
€
€ 355.00
add to cart
20
BOLT, FLANGE (3R3)
BOLT, FLANGE (3R3)
product number: 9581110020
supersession: 9581710020
show photo
€
€ 4.50
add to cart
21
NUT, FLANGE(24Y)
NUT, FLANGE(24Y)
product number: 9570110500
supersession: 9570410500
rating:
show photo
€
€ 1.50
add to cart
22
HANGER COMP.
product number: 73W228030020
notes: CRYSTAL SLV
€
€ 0.00
add to cart
23
MEMBER 3
product number: 73W228230020
notes: CRYSTAL SLV
€
€ 0.00
add to cart
24
BOLT, FLANGE (2H7)
product number: 9581108045
supersession: 9581708045
€
€ 4.00
add to cart
25
TOOL KIT
product number: 73T2810000
€
€ 40.00
add to cart
