Yamaha EDY3000DV GENERATOR main bearing

This MAIN BEARING assembly utilises eight Stud(s) - the highest specified component. This Main Bearingcase Assy is the most expensive of the items that make up this Main Bearing assembly. Some items from this specific schematic: Washer, Spring (2h0), O-ring, O-ring, O-ring.

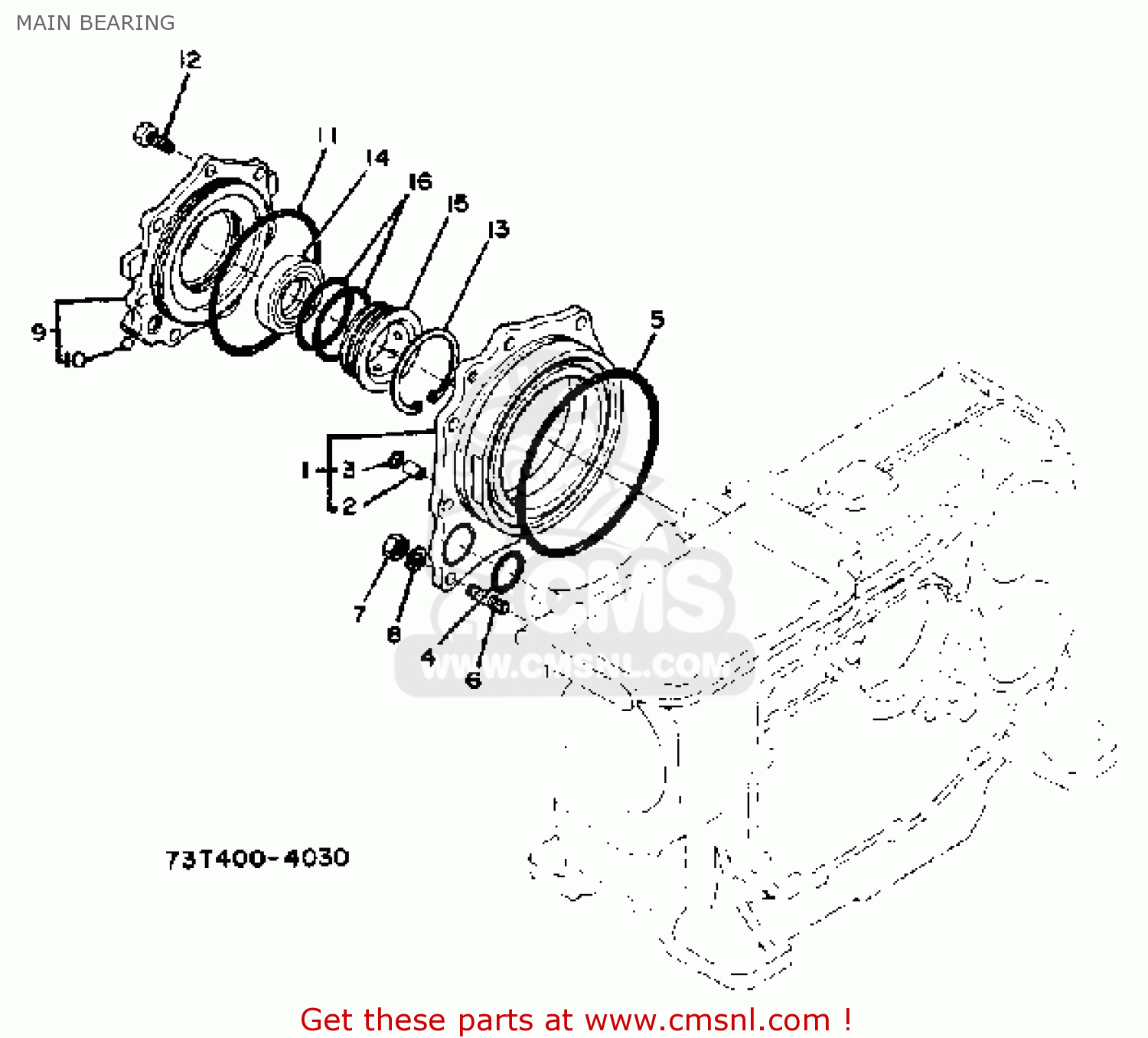

view large image
Ref
product
price
Quantity

1
MAIN BEARINGCASE ASSY
product number: YF1491104040

€ 140.50

2
PIN
product number: YF1461194931

€ 5.50

3
O-RING
O-RING
product number: YF0481100080
Hurry: only 1 left!
show photo

€ 3.00

4
O-RING
product number: YF0481110260

€ 4.50

5
O-RING
product number: YF0481111320

€ 17.00

6
STUD
product number: YF0151350820

€ 1.50

7
NUT (661)
product number: 9538008600
supersession: 9888008100

€ 1.50

8
WASHER, SPRING (2H0)
product number: 9290208100
supersession: 9290708100

€ 1.00

9
BEARING CASE COVER ASSY
product number: YF17952043

€ 102.50

10
PLUG, BLIND
product number: YF1491196850

€ 2.00

11
O-RING
product number: YF04811110

€ 10.00

12
BOLT
product number: YF0102350618

€ 1.50

13
CIR CLIP,INTERNAL
product number: YF04611006

€ 9.00

14
SEAL,OIL
product number: YF0956038558

€ 17.50

15
RING,OIL FILLER
product number: YF1491135751

€ 51.50

16
O-RING
product number: YF1491135771

€ 47.50


CMS is an independent supplier of spare parts and has no commercial link with Honda, Suzuki, Yamaha or Kawasaki.
