Yamaha DT3 1972 1973 USA front wheel

info

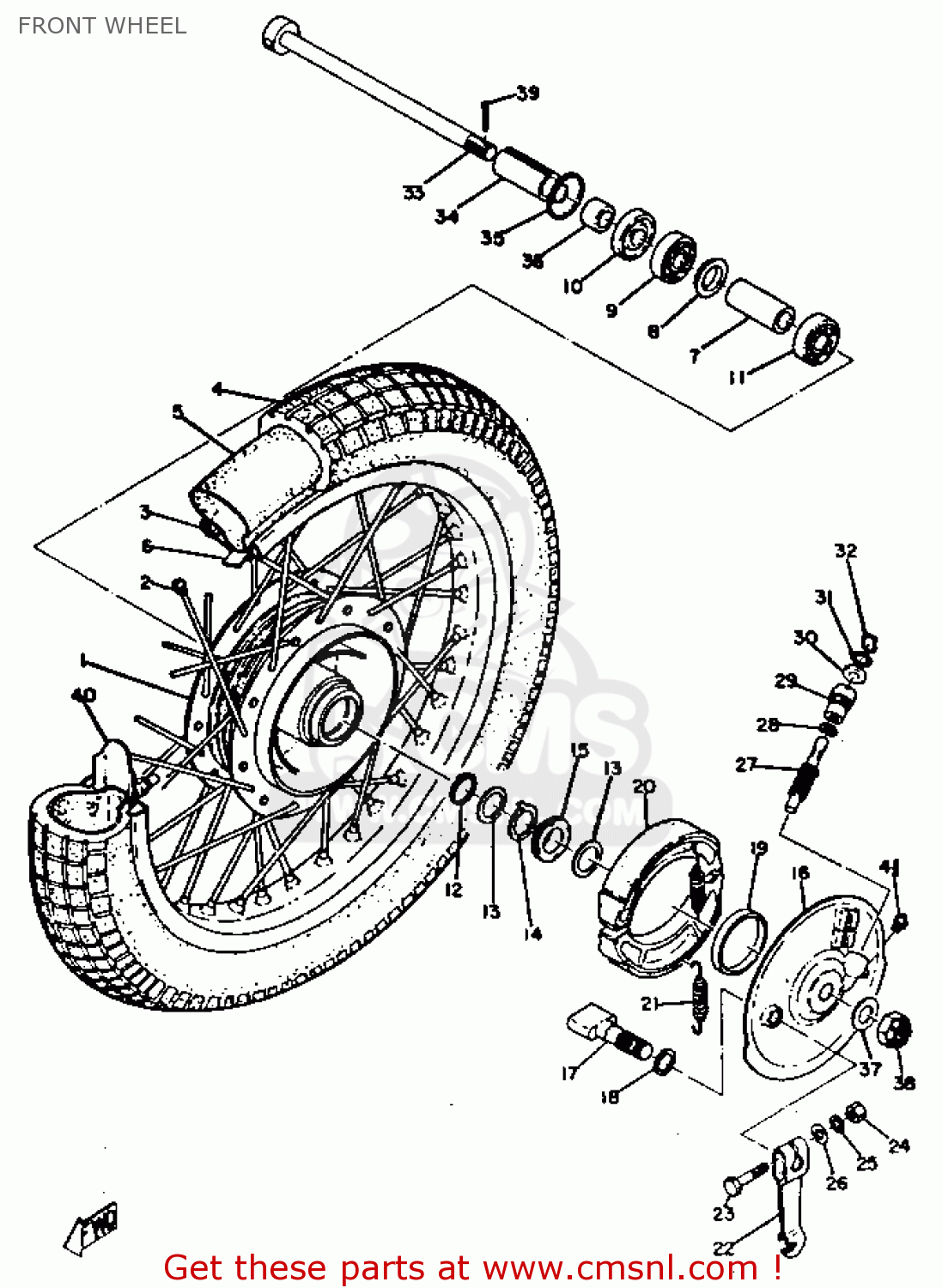

In this schematic the "Spring, Tension 2462533300" is used most often. This part-list fiche shows all the components that make up the Dt3 1972 1973 Usa Front Wheel .

view large image

Ref


product

price

Quantity

HUB, FRONT

product number: 2272511100

€ 200.50

HUB, FRONT

product number: OC-0001.3858
imperfect alternative
show photo

€ 144.50

HUB, FRONT

product number: OC-0001.5540
imperfect alternative
show photo

€ 115.50

SPOKE SET,FRONT

product number: 2142510410

€ 48.00

SPOKE, INNER (10 PK.)

product number: 2142519680

€ 0.00

SPOKE, OUTER (10 PK.)

product number: 2142519780

€ 0.00

RIM (21INCH)

product number: 9441621038

€ 89.00

TIRE(49T)

product number: 94130213A4

€ 238.00

TUBE, FRONT (2A6)

product number: 9422721101
supersession: 9422721123

€ 42.00

BAND, RIM (5J0)

product number: 9432721024
supersession: 9432521117

€ 9.00

SPACER(1EE)

product number: 9056015293

show photo

€ 11.50

FLANGE, SPACER

product number: 1462511600

show photo

€ 3.00

BRG, R-B (7H4)

product number: 9330620211
rating:
show photo

€ 19.00

OIL SEAL (20X35X7-136)

product number: 9310220009

show photo

€ 6.00

BRG,R-B 6202Z 35MM 48G NT

product number: 9330620204

show photo

€ 9.00

CIRCLIP (610)

product number: 9341022014
supersession: 9900922400
show photo

€ 3.50

WASHER PLATE 214251470000

product number: 9020122283

show photo

€ 2.00

CLUTCH, METER

product number: 2142514901

show photo

€ 5.00

GEAR, DRIVE

product number: 3082513500

show photo

€ 25.00

BRAKE SHOE PLATE ASSY

product number: 4382512010
Hurry: only 1 left!

€ 99.50

CAM, SHAFT

product number: 2142515100

show photo

€ 20.50

WASHER PLATE 341251470000

product number: 9020125286
Hurry: only 2 left!
show photo

€ 1.50

OIL SEAL (50X62X7-214)

product number: 9310550010

show photo

€ 9.00

BRAKE SHOE SET (MCA)

product number: 214W253500
supersession: 3GWW253500
rating:
show photo

€ 32.50

SPRING, TENSION 2462533300

product number: 9050720002

show photo

€ 4.00

LEVER, CAM SHAFT

product number: 2142515501

show photo

€ 74.50

BOLT

product number: 9702106030
supersession: 9701706030
show photo

€ 1.50

NUT(661)

product number: 9538006600
supersession: 9560106200
rating:
show photo

€ 1.50

WASHER(6A1)

product number: 9299506100

show photo

€ 0.50

YBS66-6 WASHER, PLAIN

product number: 9299006200

show photo

€ 1.00

GEAR, METER

product number: 3082513800

show photo

€ 20.00

WASHER, PLATE 1832514600

product number: 9020107076

show photo

€ 2.50

BUSHING

product number: 1092513600

show photo

€ 4.00

OIL SEAL (7X14X4-136)

product number: 9310407003

show photo

€ 2.00

O-RING

product number: 9321014104
supersession: 9321014579
show photo

€ 1.50

RING, STOP

product number: 1022513700

show photo

€ 2.50

SHAFT, WHEEL

product number: 2752518100
Hurry: only 3 left!
show photo

€ 76.50

COLLAR 275251860000

product number: 9038715117
Hurry: only 1 left!
show photo

€ 6.50

COVER, HUB DUST

product number: 1R02511800

show photo

€ 1.50

COLLAR (4W0)

product number: 90387157G5

show photo

€ 6.50

WASHER, PLAIN

product number: 9299014200

show photo

€ 3.00

NUT, CASTLE (525)

product number: 9017114020
supersession: 9017114056
rating:
show photo

€ 9.00

PIN,COTTER

product number: 9140130030
supersession: 9149030030
show photo

€ 2.00

SPACER, BEAD

product number: 1T12519400

show photo

€ 38.00

NIPPLE, GREASE(6A1)

product number: 9370006M03

show photo

€ 6.00

CMS is an independent supplier of spare parts and has no commercial link with Honda, Suzuki, Yamaha or Kawasaki.
