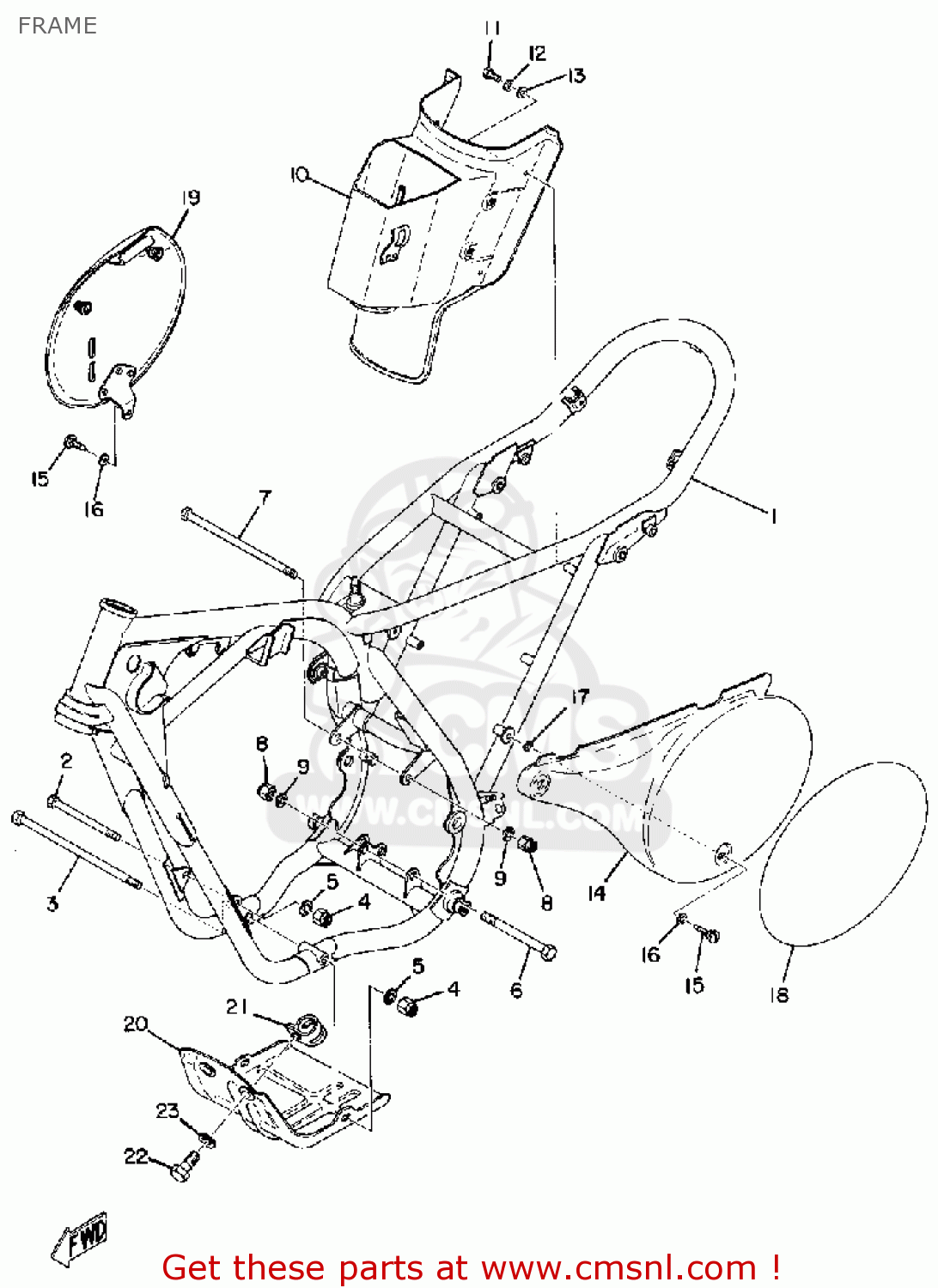

Yamaha DT2MX 1972 USA frame

info set as my vehicle my vehicles

Some items from this specific schematic: Nut (2h1), Knob, Side Cover, Cover, Side Left, Bolt, Flange. The Yamaha FRAME has twenty-three products enlisted in the schematic.


view large image
Ref
product
price
Quantity
1
FRAME COMP YAMAHA BLACK
product number: 322211100133
notes: YAMAHA BLACK
€
€ 365.00
add to cart
2
BOLT, FLANGE
product number: 9582108115
supersession: 9581708115
rating:
€
€ 4.00
add to cart
3
BOLT 214214820000
BOLT 214214820000
product number: 9010908040

show photo
€
€ 12.00
add to cart
4
NUT (2H1)
NUT (2H1)
product number: 9561108100
supersession: 9561708100
show photo
€
€ 4.50
add to cart
5
YBS67-8 WASHER, SPRING
YBS67-8 WASHER, SPRING
product number: 9299008100

show photo
€
€ 1.00
add to cart
6
BOLT, HEXAGON BASED WASHER.
product number: 9010510051
supersession: 9010510712
€
€ 7.50
add to cart
7
BOLT, ENGINE MOUNTING 4 (322-21484-00)
product number: 9010910316
€
€ 5.00
add to cart
8
NUT SELFLOCKING 214214940000
product number: 9018510031
Hurry: only 1 left!
€
€ 3.00
add to cart
9
YBS67-10 WASHER, SPRING
YBS67-10 WASHER, SPRING
product number: 9299010100

show photo
€
€ 1.50
add to cart
10
BOX COMP, AIR CLEANER
product number: 322212400033
€
€ 0.00
add to cart
11
BOLT(3AP)
BOLT(3AP)
product number: 9701106016
supersession: 9701406016
show photo
€
€ 0.50
add to cart
12
WASHER(6A1)
WASHER(6A1)
product number: 9299506100

show photo
€
€ 0.50
add to cart
13
WASHER, PLATE(481)
WASHER, PLATE(481)
product number: 9020106067
supersession: 9020106765
show photo
€
€ 3.00
add to cart
14
COVER, SIDE LEFT
product number: 3222171100
€
€ 312.00
add to cart
14
COVER, SIDE LEFT
COVER, SIDE LEFT
product number: OC-0001.0896
imperfect alternative
show photo
€
€ 240.00
add to cart
15
KNOB, SIDE COVER
product number: 3022171400
€
€ 0.00
add to cart
16
WASHER PLATE 102283270000
WASHER PLATE 102283270000
product number: 9020206013

show photo
€
€ 2.00
add to cart
17
NUT(650)
NUT(650)
product number: 9538006700
supersession: 9538R06700
show photo
€
€ 0.50
add to cart
18
EMBLEM, NUMBER
product number: 3222178700
€
€ 0.00
add to cart
19
COVER, SIDE RIGHT
product number: 3222172100
€
€ 136.50
add to cart
20
BRACKET, ENGINE PROTECTOR FRONT YAMAHA BLACK
product number: 214214330033
€
€ 9.00
add to cart
21
BRACKET, ENGINE PROTECTOR FRONT YAMAHA BLACK
product number: 214214330033
€
€ 9.00
add to cart
22
BOLT (661)
BOLT (661)
product number: 9701306012
supersession: 9708006012
show photo
€
€ 2.00
add to cart
23
WASHER, PLAIN
product number: 9290106038
€
€ 0.00
add to cart
