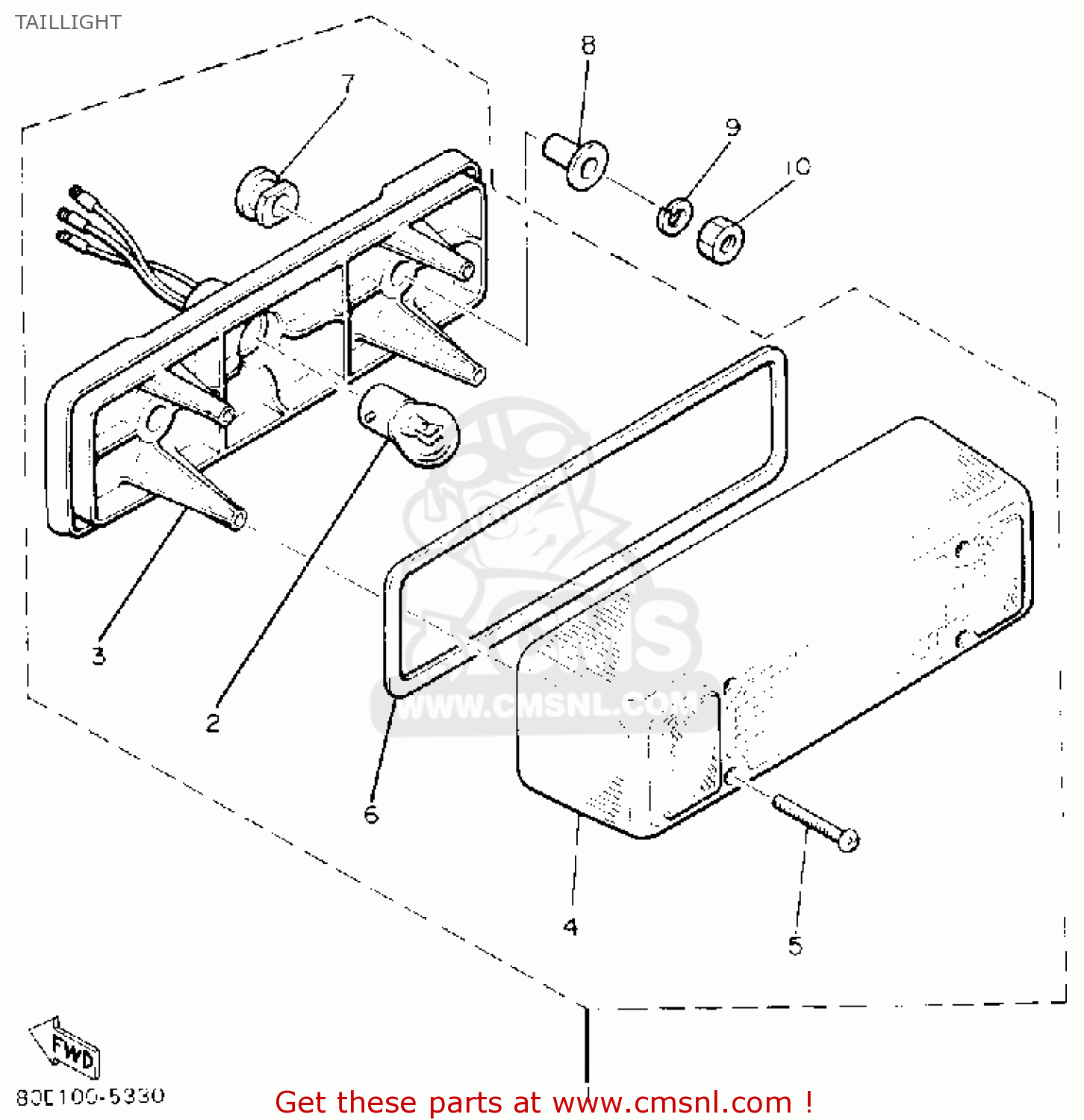

Yamaha BR250TT BRAVO 1993 taillight

In this schematic the "Ybs83-430 Screw,panh. Tapping" is used most often. Of all the components that make up this Taillight the Washer(6a1) has the lowest price. The ten Br250tt Bravo 1993 Taillight component parts are all listed in this schematic.


view large image
Ref
product
price
Quantity

1
TAILLIGHT UNIT ASSY
product number: 8K48471000
supersession: 8K48471001

€ 51.00

2
BULB, TAIL LAMP (12V23/8W)
BULB, TAIL LAMP (12V23/8W)
product number: 1378471461
supersession: 8388471401
show photo

€ 6.00

3
BASE, TAILLIGHT
product number: 8K48471100
supersession: 8K48471101

€ 37.00

4
LENS, TAILLIGHT
product number: 8K48472100
supersession: 8K48472101

€ 26.00

5
YBS83-430 SCREW,PANH. TAPPING
YBS83-430 SCREW,PANH. TAPPING
product number: 9778040130

show photo

€ 1.50

6
GASKET, TAIL LENS (NAS)
product number: 87M8472300
supersession: 26H8472300

€ 9.00

7
GROMMET
GROMMET
product number: 8K48471800

show photo

€ 3.00

8
COLLAR (10V)
COLLAR (10V)
product number: 90387060G8
supersession: 9038706166
show photo

€ 2.50

9
WASHER(6A1)
WASHER(6A1)
product number: 9299506100

show photo

€ 0.50

10
NUT(661)
NUT(661)
product number: 9538006600
supersession: 9560106200
rating:
show photo

€ 1.50
