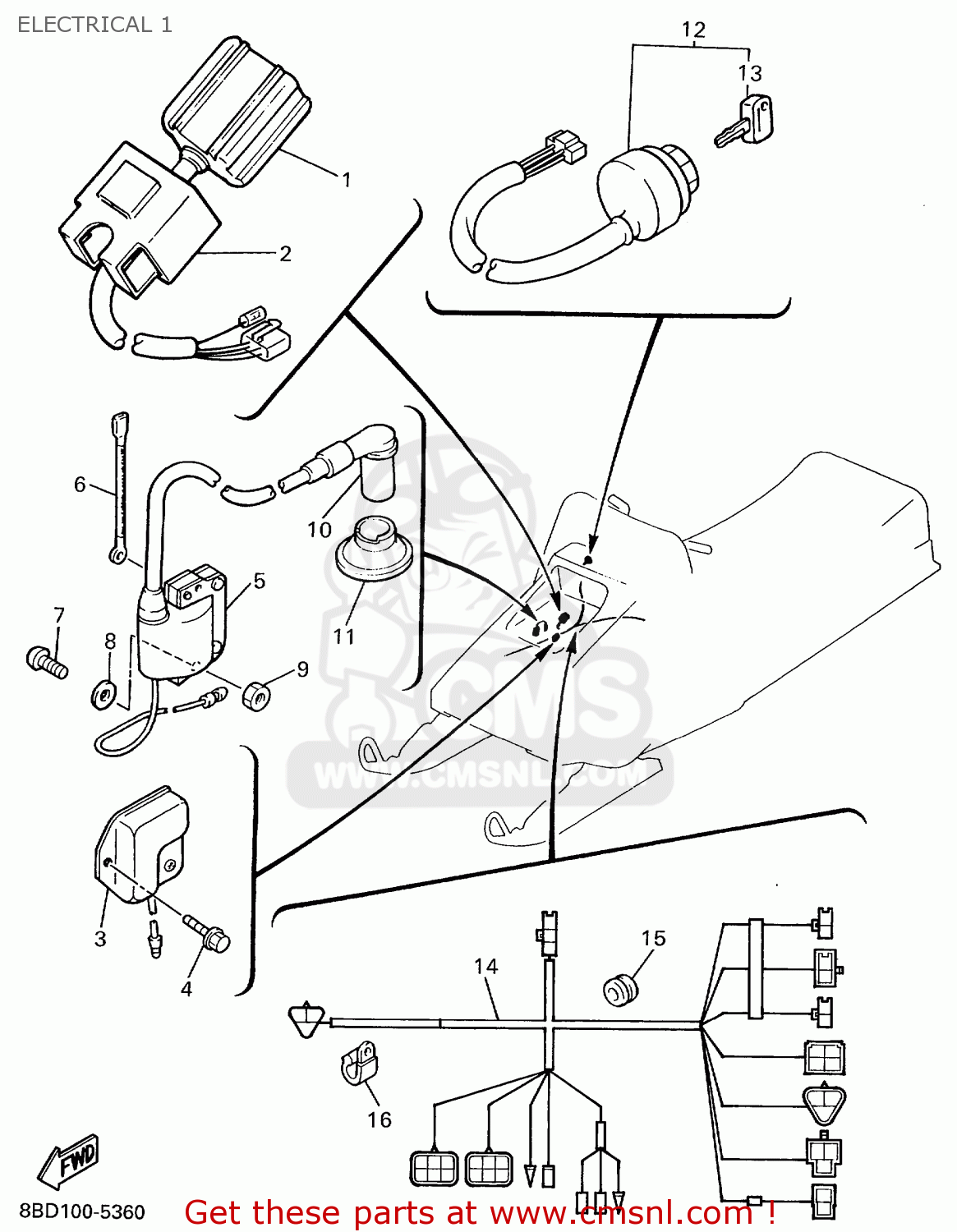

Yamaha BR250TC 1999 electrical 1

The most expensive part in this assembly is the Wire Harness Assy. Check out any of the sixteen Electrical 1 components enlisted. With all the components that make up the BR250TC 1999 ELECTRICAL 1 assembly. The Bolt, Flange(4my) is the most frequently specified with two applications.


view large image
Ref
product
price
Quantity

1
C.D.I. UNIT ASSY
C.D.I. UNIT ASSY
product number: 8AU8554000

show photo

€ 161.00

2
BAND
BAND
product number: 2A78554600

show photo

€ 12.50

3
VOLTAGE REGULATOR ASSY
product number: 82M81910A0

€ 91.00

4
BOLT, FLANGE(4MY)
product number: 9580706012
supersession: 9581706012

€ 0.50

5
IGNITION COIL ASSY
product number: 86B8231010
supersession: 86B8231012

€ 101.00

6
WIRE, SUB-LEAD
product number: 83Y8231800

€ 11.00

7
SCREW, PAN
SCREW, PAN
product number: 9850706040

show photo

€ 1.50

8
WASHER(6TA)
WASHER(6TA)
product number: 9290706600

show photo

€ 1.00

9
NUT (89W)
product number: 9530706600
supersession: 9531706600

€ 1.00

10
PLUG CAP ASSY
product number: 8K18237020
supersession: 85G8237020

€ 24.00

11
SEAL
SEAL
product number: 8G58237200

show photo

€ 6.00

12
MAIN SWITCH ASSY
MAIN SWITCH ASSY
product number: 8R48251020

show photo

€ 99.00

13
CAP, KEY
CAP, KEY
product number: 5268257900

show photo

€ 3.50

14
WIRE HARNESS ASSY
product number: 8BD8259000

€ 183.00

15
GROMMET(8Y1)
product number: 9048016422
supersession: 9048016233

€ 4.00

16
CLAMP (1E6)
CLAMP (1E6)
product number: 9046508028

show photo

€ 4.50
