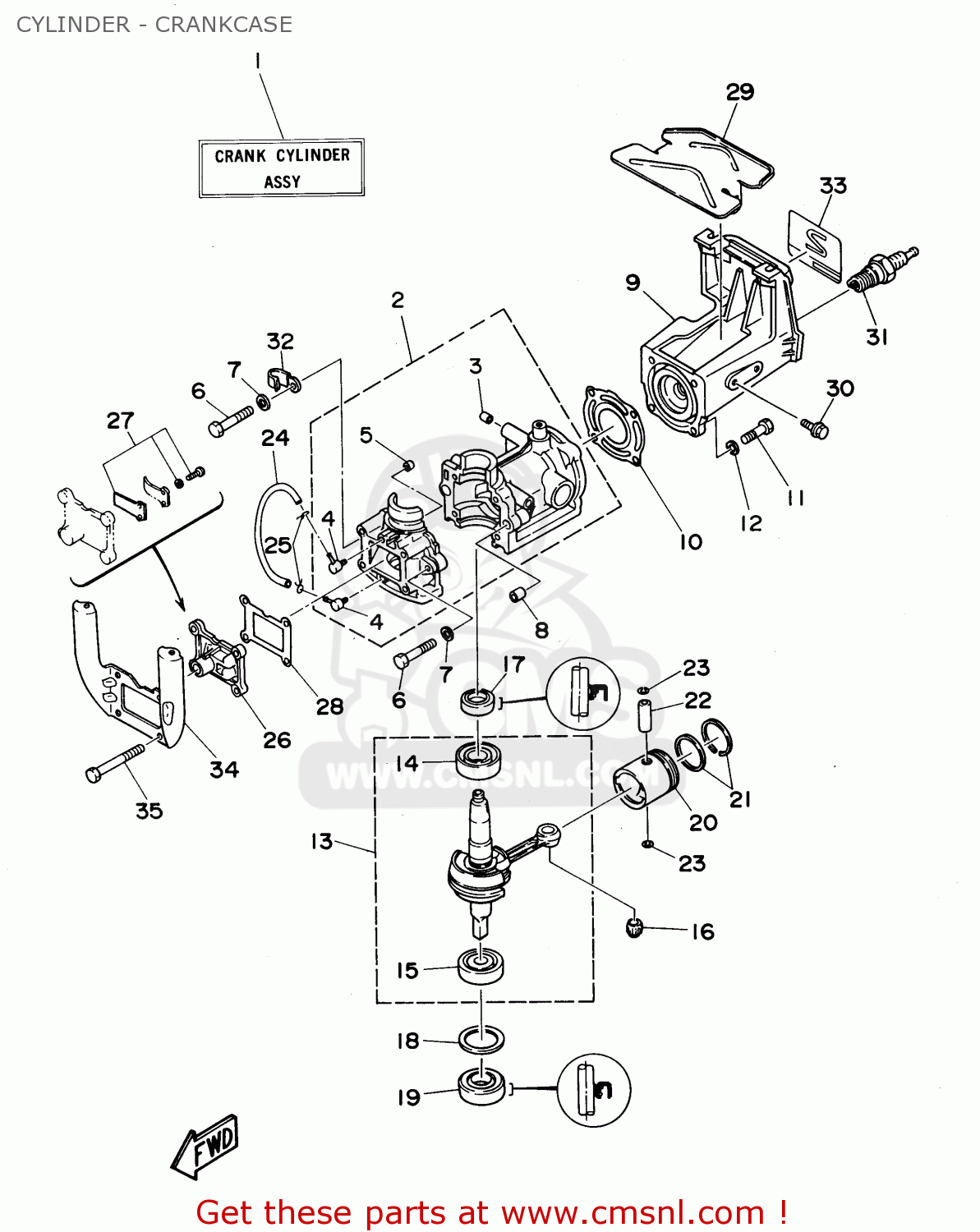

Yamaha 2MHU 1996 cylinder - crankcase

info

The Washer, Plain (646) is the lowest priced item on this Cylinder - Crankcase schematic. The sub assemblies and components that make up this Cylinder - Crankcase include this Crank Cylinder Assy, the most expensive part. Check out any of the thirty-seven Cylinder - Crankcase components enlisted.

view large image

Ref


product

price

Quantity

1

CRANK CYLINDER ASSY

product number: 6A1W009013

€ 808.00

2

CRANKCASE ASSY

product number: 6A1151006194

€ 492.50

3

PLUG, BLIND 6551131300

product number: 9033606001

€ 3.00

4

PIPE JOINT

product number: 6501448502
supersession: 6501448503

€ 10.50

5

VALVE, CHECK

product number: 6241137900

€ 6.00

6

BOLT, HEXAGON (646)

product number: 9731306040
supersession: 9709506040

€ 2.00

7

WASHER, PLAIN (646)

WASHER, PLAIN (646)

product number: 9299006600

show photo

€ 1.00

8

PIN, DOWEL

product number: 9953010014

show photo

€ 2.50

9

HEAD, CYLINDER 1

product number: 6A1111110294
supersession: 6A111111021S

€ 128.50

10

GASKET, CYLINDER HEAD (NAS)

product number: 6A111181A0
supersession: 6A111181A1

€ 35.00

11

BOLT(6N6)

product number: 9709506025
supersession: 9708006025
show photo

€ 1.50

12

WASHER, PLAIN (646)

WASHER, PLAIN (646)

product number: 9299006600

show photo

€ 1.00

13

CRANK ASSY

product number: 6A11140000
supersession: 6GDE140000

€ 345.00

14

BRG,R-B 6004 42MM 69G NK

BRG,R-B 6004 42MM 69G NK

product number: 9330600409

show photo

€ 34.00

15

BRG,R-B 6302 42MM 82G NK

BRG,R-B 6302 42MM 82G NK

product number: 9330630204

show photo

€ 40.00

16

BEARING, CYLINDRICAL(6A1)

product number: 93310210V1
supersession: 93310210M0

€ 16.00

17

OIL SEAL (20X30X7-371)

OIL SEAL (20X30X7-371)

product number: 9310220108
supersession: 9310220814
show photo

€ 12.50

17

OIL SEAL,20X30X7

OIL SEAL,20X30X7

product number: 91201GC8004
alternative part
show photo

€ 5.50

18

WASHER, LOCK 6461518600

product number: 9020135300
supersession: 90201352L0

€ 6.00

19

OIL SEAL(6A1)

product number: 9310215M32

show photo

€ 7.50

20

PISTON 0.97

product number: 646116310197
oversize info
Hurry: only 2 left!

€ 53.00

20

PISTON 2NDO/S

product number: 6461163601
oversize info
notes: AP

€ 44.00

21

PISTON RING SET (STD)

product number: 6461160101
oversize info

€ 53.50

21

PISTON RING SET(2NDO/S)

PISTON RING SET(2NDO/S)

product number: 6461160121
oversize info
notes: AP
Hurry: only 1 left!
show photo

€ 49.00

22

PIN,PISTON

product number: 6461163300
oversize info

€ 6.00

23

CIRCLIP 101116340000

CIRCLIP 101116340000

product number: 9345011021

show photo

€ 1.00

24

HOSE (L120)

product number: 9044507M32
supersession: 9044507MA3

€ 5.50

25

CLIP (655)

product number: 9046706016

show photo

€ 3.00

26

REED VALVE ASSY

REED VALVE ASSY

product number: 6A11361000
supersession: 6GDE361000
show photo

€ 67.00

27

REED SET

product number: 6A1W000400

€ 25.50

28

PACKING,VALVE SEAT (NAS)

product number: 6A113621A0
supersession: 6GDE362100

€ 2.00

29

PROTECTOR, FUEL TANK

product number: 6A12414100

€ 63.00

30

BOLT (6E0)

product number: 9589506010
supersession: 9588006010

€ 3.00

31

PLUG, SPARK (NGK B5HS)

product number: NGKB5HS000

€ 6.00

32

CLAMP (1E6)

product number: 9046508028

show photo

€ 4.50

33

GRAPHIC, REAR

product number: 6A14267811

€ 7.00

34

STAY 1

product number: 6A11577100

€ 34.50

35

BOLT, HEXAGON (646)

product number: 9731306060
supersession: 9701306060

€ 4.00
