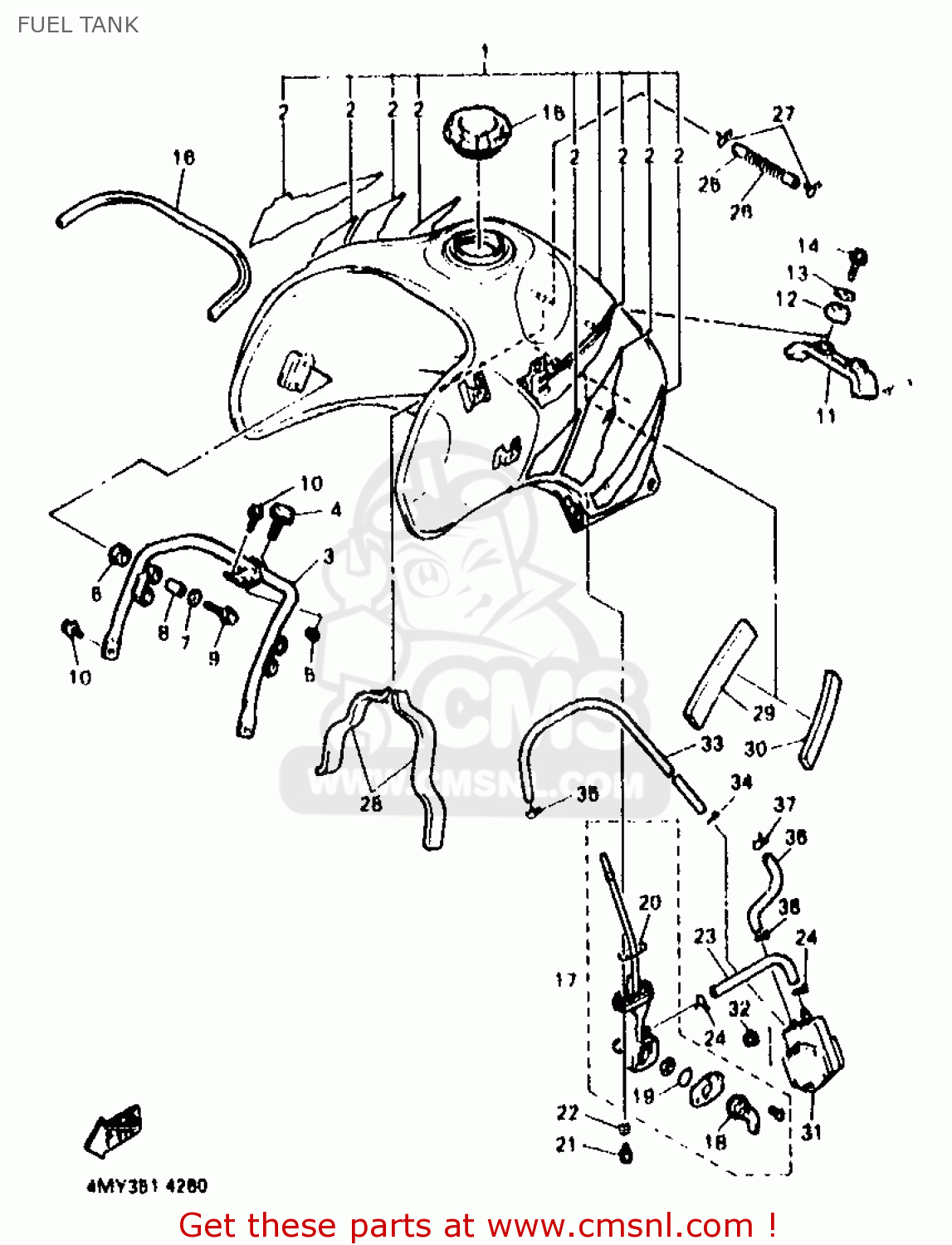

Yamaha XTZ660 (25KW) 1994 4NW1 GERMANY 244MY-332G1 fuel tank

info

On this parts fiche the Grommet (24x) is the most specified component. The Yamaha FUEL TANK has thirty-nine products enlisted in the schematic. The lowest price component in this Fuel Tank parts-list fiche is the Bolt, Flange (4h7).

view large image

Ref


product

price

Quantity

FUEL TANK COMP.

product number: 4MY241101001
notes: YAMAHA BLACK

€ 785.00

FUEL TANK COMP.

product number: 4MY241101002
notes: DARK BLUE COCKTAIL 2

€ 566.00

GRAPHIC SET

product number: 4MY2424000
notes: F DBC2

€ 219.00

GRAPHIC SET

product number: 4MY2424010
notes: F YB

€ 305.00

BRACKET, FUEL TANK 1

product number: 3YF2429101

€ 161.00

DAMPER, LOCATING 5

product number: 3AJ2418500
Hurry: only 1 left!
show photo

€ 15.50

NUT (4MY)

product number: 9530708600
supersession: 9533708600

€ 3.00

GROMMET (24X)

product number: 9048018354
supersession: 9048018549
show photo

€ 5.50

COLLAR 306847573000

product number: 9038706387

show photo

€ 1.50

BOLT, FLANGE(4MY)

product number: 9580706030
supersession: 9581706030

€ 1.00

BOLT, WITH WASHER(3LD)

product number: 9011908197
supersession: 9011908119
show photo

€ 2.00

DAMPER, LOCATING 2

product number: 3YF2418200

€ 20.00

DAMPER, LOCATING 3

product number: 3YF2418300

show photo

€ 6.00

WASHER (23T)

product number: 90201065G8

show photo

€ 3.50

BOLT, FLANGE (4H7)

product number: 9581106012
supersession: 9581206012
show photo

€ 0.50

CAP ASSY

product number: 48Y2460200
rating:
show photo

€ 113.00

MOLD, FUEL TANK

product number: 3AJ2418800

show photo

€ 25.50

FUEL COCK ASSY 1

product number: 3YF2450000

show photo

€ 98.50

VALVE PACKING (NAS)

product number: 3AJ2452300
supersession: 3AC2452300
rating:
show photo

€ 10.50

SEAL, COCK

product number: 3AJ2453400
supersession: 3AJ2453401
rating:
show photo

€ 3.50

O-RING

product number: 4X82451200
rating:
show photo

€ 2.50

BOLT, FLANGE(51L)

product number: 9502306016
supersession: 9010506707
show photo

€ 2.00

WASHER, PLATE(3MB)

product number: 9020205187

show photo

€ 1.00

PIPE, FUEL 1

product number: 3YF2431100

€ 9.00

CLIP 1432435600

product number: 9046710008
supersession: 9046711010
show photo

€ 2.00

HOSE (L135)

product number: 90445116G8
supersession: 90445110F5

€ 7.50

SPRING, COMPRESSION(1YU)

product number: 90501061E8

show photo

€ 3.50

CLIP 1432435600

product number: 9046710008
supersession: 9046711010
show photo

€ 2.00

DAMPER, PLATE 1

product number: 3YF2414H00

€ 4.50

DAMPER, PLATE 2

product number: 3YF2414J00

show photo

€ 3.50

DAMPER, LOCATING 1

product number: 3UL2418100
Hurry: only 1 left!
show photo

€ 7.50

FUEL PUMP ASSY

product number: 3LD1391000
supersession: 4BR1391000
rating:
show photo

€ 277.00

NUT, FLANGE(55X)

product number: 9570105500
supersession: 9570705500
show photo

€ 1.50

PIPE, IMPULSE (L400)

product number: 1VJ1392900

show photo

€ 5.00

CLIP (8L2)

product number: 9046708017

show photo

€ 2.50

CLIP (16G)

product number: 9046708021

show photo

€ 3.00

HOSE

product number: 3YF1429400

€ 11.00

CLIP (806-24356-00)

product number: 9046709006
supersession: 90467090A2
show photo

€ 1.00

CLIP 1432435600

product number: 9046710008
supersession: 9046711010
show photo

€ 2.00

CMS is an independent supplier of spare parts and has no commercial link with Honda, Suzuki, Yamaha or Kawasaki.
