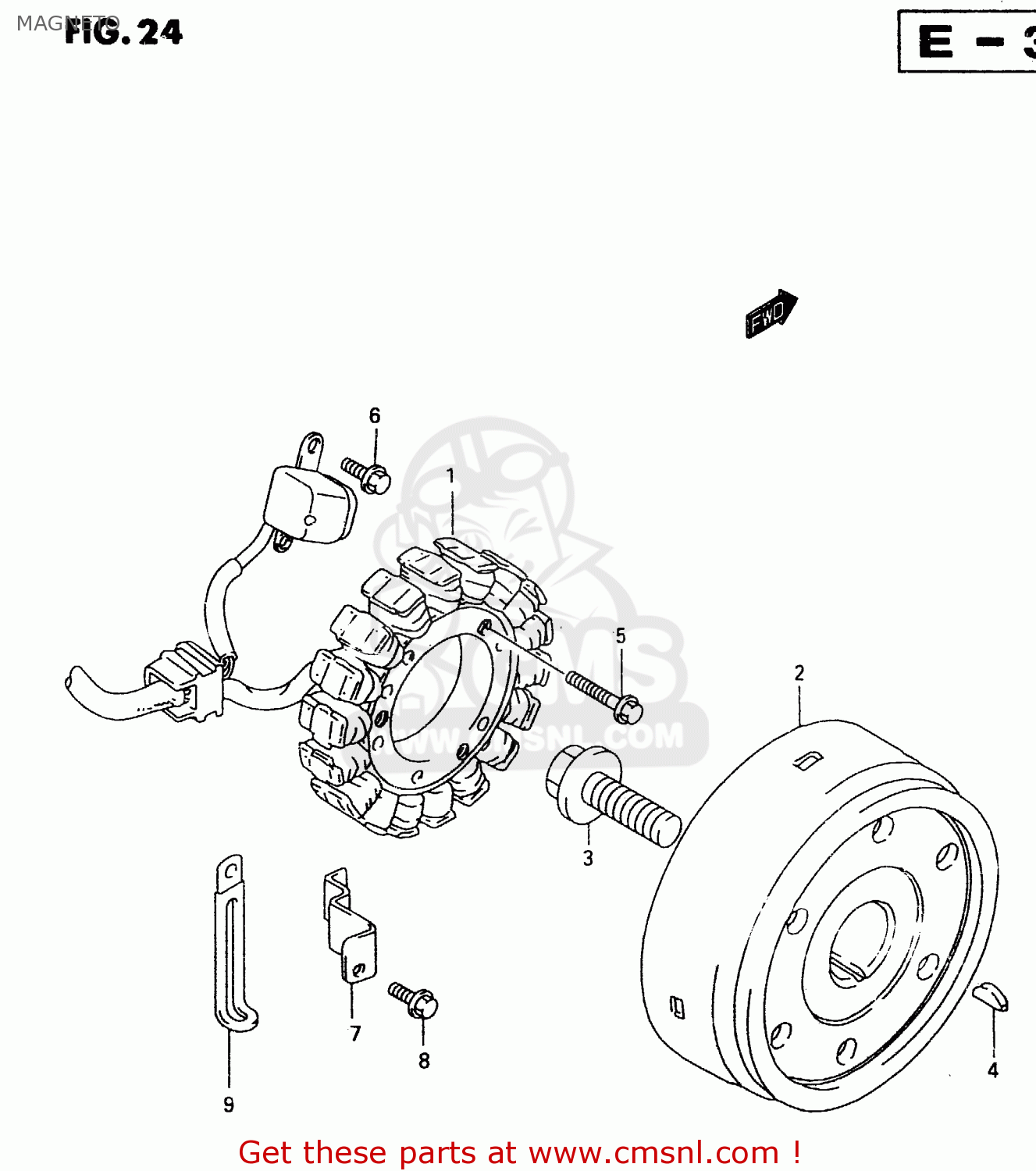

Suzuki VL1500 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34) magneto

The lowest price component in this Magneto parts-list fiche is the Bolt,g/s Switc. The sub assemblies and components that make up this Magneto include this Stator Assembly,magneto, the most expensive part. Some items from this specific schematic: Clamp(l:45), Bolt, Clamp,magneto Lead Wire, Key.


view large image
Ref
product
price
Quantity

1
STATOR ASSEMBLY,MAGNETO
product number: 3210110F00
supersession: 3210110F01

€ 518.00

2
ROTOR ASSY
product number: 3210210F00

€ 483.00

3
BOLT(14X43)
BOLT(14X43)
product number: 0910314001

show photo

€ 7.50

4
KEY
KEY
product number: 0942005007

show photo

€ 3.00

5
BOLT,G/S SWITC
BOLT,G/S SWITC
product number: 0154706303
supersession: 015470630B
show photo

€ 2.00

6
BOLT
BOLT
product number: 0154705103
supersession: 015470510B
show photo

€ 2.50

7
CLAMP,MAGNETO LEAD WIRE
CLAMP,MAGNETO LEAD WIRE
product number: 3237145C00

show photo

€ 3.00

8
BOLT
BOLT
product number: 0154705103
supersession: 015470510B
show photo

€ 2.50

9-1
CLAMP(L:45)
product number: 0940406429
supersession: 0940406432

€ 2.00

9-2
CLAMP(L:65 T:0.8)
CLAMP(L:65 T:0.8)
product number: 0940408206

show photo

€ 3.00
