Honda VFR750R RC30 1989 (K) GERMANY carburetor (component parts)

info

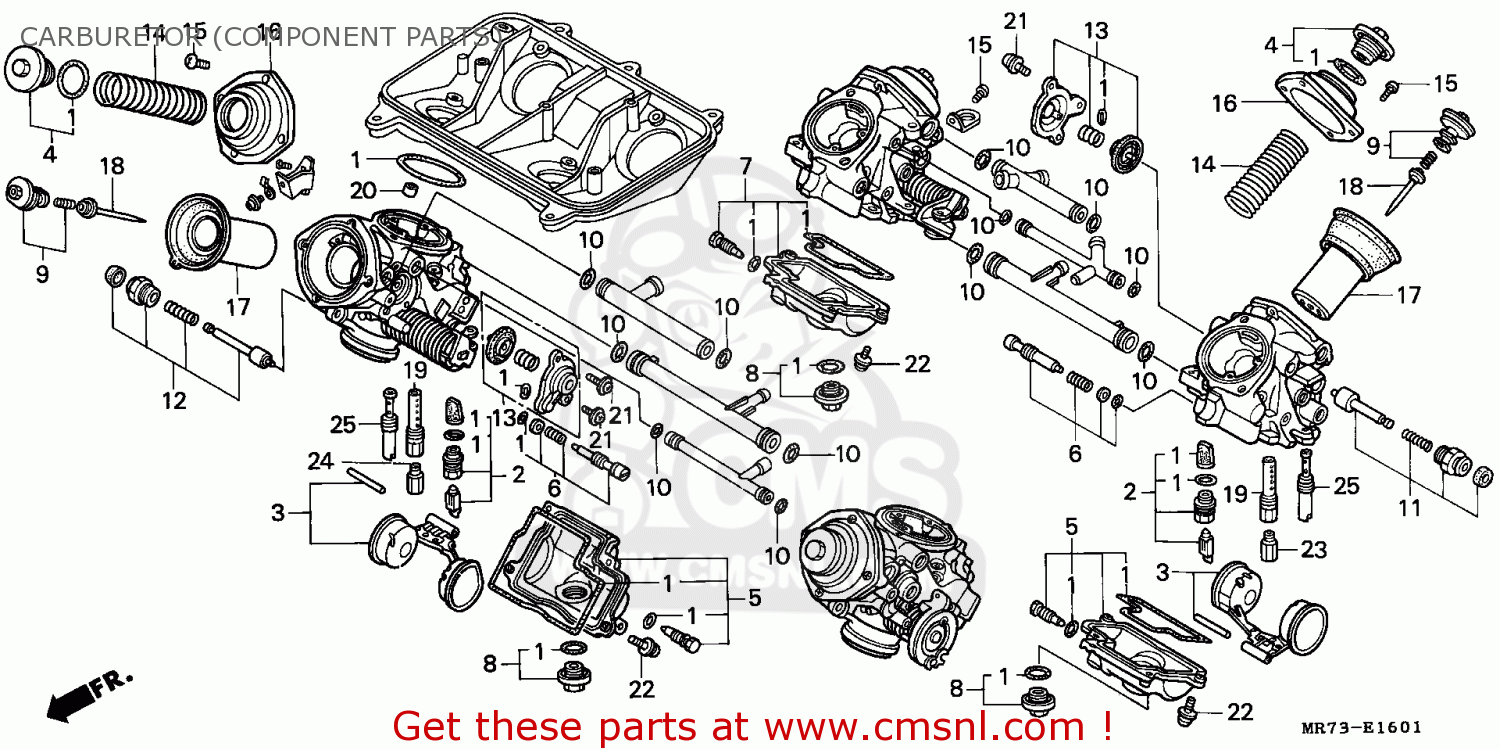

Of all the components that make up this Carburetor (component Parts) the Screw-washer,4x8 has the lowest price. This CARBURETOR (COMPONENT PARTS) assembly utilises sixteen Screw,pan(s) - the highest specified component. The twenty-seven Vfr750r Rc30 1989 (k) Germany Carburetor (component Parts) component parts are all listed in this schematic.

view large image

Ref


product

price

Quantity

1

GASKET SET A

product number: 16010MR7004
supersession: 16010MR7014

€ 68.00

1

GASKET SET A

product number: 16010MR7014
supersession: 16010MR7505
show photo

€ 68.00

2

SEAT SET,VALVE

product number: 16011MR7004

show photo

€ 64.00

3

FLOAT SET

product number: 16013ML7004
supersession: 16013MAH000

€ 37.00

4

CAP SET,TOP

product number: 16014MR7004

show photo

€ 49.50

5

CHAMBER SET A,FLO

product number: 16015MR7014

€ 142.00

5

CHAMBER SET A,FLO

product number: 16015MR7024

€ 142.00

6

SCREW SET A

product number: 16016ML0721
supersession: 16016ML7004

€ 18.50

7

CHAMBER SET A,FLO

product number: 16025MR7601

€ 142.00

8

CAP SET,TOP

product number: 16024MR7004

show photo

€ 30.50

9

PLATE SET,VALVE

product number: 16037MK7771
supersession: 16037MK7772
Hurry: only 2 left!

€ 19.50

10

GASKET SET B

product number: 16040MR7004
rating:
show photo

€ 38.00

11

VALVE SET,STARTER

VALVE SET,STARTER

product number: 16046MG9681
rating:
show photo

€ 53.00

12

STARTER VALVE SET

STARTER VALVE SET

product number: 16047ML7004
supersession: 16047MAJ870
show photo

€ 42.00

13

VALVE SET,AIR CUT

VALVE SET,AIR CUT

product number: 16048MR7004

show photo

€ 114.50

13

AIR CUT OFF VALVE SET (NON O.E. JAPANESE ALTERNATIVE)

AIR CUT OFF VALVE SET (NON O.E. JAPANESE ALTERNATIVE)

product number: 16048MR7004P
rating:
alternative part
show photo

€ 12.50

14

SPRING,COMPR.COIL

product number: 16050MR7004

€ 16.00

15

SCREW,PAN

product number: 16080MR7004

show photo

€ 8.50

16

TOP COMP.

product number: 16107MR7004

€ 47.00

17

PISTON COMP.,VACU

PISTON COMP.,VACU

product number: 16111MR7004

show photo

€ 230.50

18

NEEDLE,JET

product number: 16151MR7004

show photo

€ 61.50

19

HOLD,FR.JET NEEDL

HOLD,FR.JET NEEDL

product number: 16165MB1771

show photo

€ 61.00

20

PIN,KNOCK

product number: 16178MB0671

show photo

€ 3.50

21

SCREW-WASHER,4X8

SCREW-WASHER,4X8

product number: 938920400800

show photo

€ 1.00

22

SCREW-WASHER,4X16

SCREW-WASHER,4X16

product number: 938920401600

show photo

€ 1.00

23

JET,MAIN #112

product number: 991013571120
supersession: 99113GHB1120
show photo

€ 13.50

24

JET,MAIN#115

product number: 991013571150

show photo

€ 14.00

25

JET,SLOW,#38

product number: 991034370380
supersession: 99103MV90380A
show photo

€ 17.50
