Honda VFR750F INTERCEPTOR 1988 (J) GERMANY / KPH oil filter/oil pan/ oil pump

info

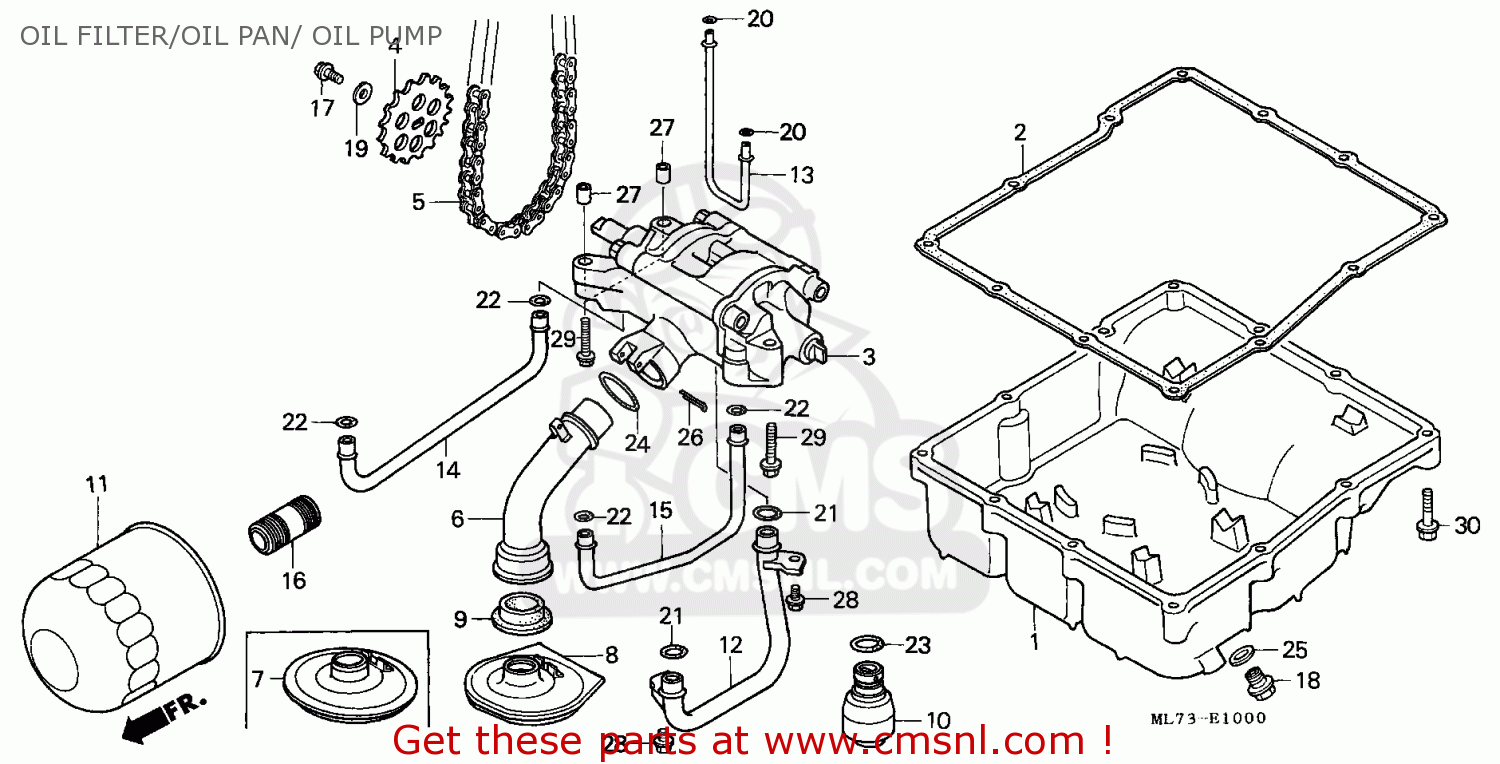

This OIL FILTER/OIL PAN/ OIL PUMP assembly utilises twelve Bolt,flange,6x28(s) - the highest specified component. This schematic depicts all components used in the Vfr750f Interceptor 1988 (j) Germany / Kph Oil Filter/oil Pan/ Oil Pump partslist. Of all the components that make up this Oil Filter/oil Pan/ Oil Pump the Washer,plug,drain 12 has the lowest price.

view large image

Ref


product

price

Quantity

1

PAN,OIL

product number: 11211ML7920

€ 150.00

2

GASKET,OIL PAN (MCA)

GASKET,OIL PAN (MCA)

product number: 11315ML7000
supersession: 11315ML7306
show photo

€ 13.00

3

PUMP ASSY.,OIL

product number: 15100ML7690
Hurry: only 1 left!
show photo

€ 275.00

4

SPRK OIL/P DRIVEN

SPRK OIL/P DRIVEN

product number: 15134MB0010

show photo

€ 22.00

5

CHAIN,OIL PUMP

product number: 15140ML7003

show photo

€ 38.00

5

CHAIN,OIL PUMP (NON O.E.ALTERNATIVE)

CHAIN,OIL PUMP (NON O.E.ALTERNATIVE)

product number: 15140ML7003P
alternative part
show photo

€ 32.00

6

PIPE OIL STRAINER

PIPE OIL STRAINER

product number: 15151ML7000

show photo

€ 34.50

8

STRAINER COMP,OIL

STRAINER COMP,OIL

product number: 15153ML7690

show photo

€ 19.00

9

PACKING,OIL STRAI (NAS)

PACKING,OIL STRAI (NAS)

product number: 15154ML7000

show photo

€ 6.00

10

VALVE ASSY,RELIEF

VALVE ASSY,RELIEF

product number: 15220MJ6000

show photo

€ 28.00

11

OIL FILTER CARTRI

product number: 15410MM9003
supersession: 15410MM9013
rating:

€ 14.50

11

OIL FILTER CARTRI (MEIWA) (NON O.E. ALTERNATIVE)

OIL FILTER CARTRI (MEIWA) (NON O.E. ALTERNATIVE)

product number: 15410MCJ505P
alternative part
show photo

€ 6.00

11

OIL FILTER CARTRI (HIFLO)

OIL FILTER CARTRI (HIFLO)

product number: 15410MM9P03P
supersession: 15410MM5003P
rating:
alternative part
show photo

€ 12.50

12

PIPE COMP.A,OIL

PIPE COMP.A,OIL

product number: 15511ML7000

show photo

€ 21.50

13

PIPE B,OIL

product number: 15512ML7000
Hurry: only 2 left!
show photo

€ 13.00

14

PIPE COMP C,OIL

PIPE COMP C,OIL

product number: 15521ML7000
Hurry: only 3 left!
show photo

€ 14.00

15

PIPE COMP D,OIL

PIPE COMP D,OIL

product number: 15522ML7000
Hurry: only 3 left!
show photo

€ 22.50

16

BOSS, OIL FILTER

BOSS, OIL FILTER

product number: 90019MB0000
rating:
show photo

€ 7.00

17

BOLT HEX,6X16

product number: 90021KE8010

show photo

€ 3.00

18

DRAIN COCK

product number: 9280012000

show photo

€ 3.50

18

ALUMINUM DRAIN BOLT 12MM WITH MAGNET (BLUE )

ALUMINUM DRAIN BOLT 12MM WITH MAGNET (BLUE )

product number: 0908002
supersession: 02090024
rating:
alternative part
show photo

€ 19.50

18

OIL BOLT MAGNETIC (NON O.E. ALTERNATIVE)

OIL BOLT MAGNETIC (NON O.E. ALTERNATIVE)

product number: 92800RRP000
rating:
alternative part
show photo

€ 9.50

19

WASHER, 6X2.3

product number: 90488MB0000

show photo

€ 2.50

20

O RING,6X2

product number: 91307ML7004

show photo

€ 1.50

21

O-RING,14.7X3.7

O-RING,14.7X3.7

product number: 91309MB0003
supersession: 91308MA6005
rating:
show photo

€ 4.50

22

O-RING,9.6X2.6

product number: 91309ML7003

show photo

€ 3.00

23

O-RING,14.8X2.2

O-RING,14.8X2.2

product number: 91313MB0003
supersession: 91313MG7004
show photo

€ 4.50

24

O-RING 21.2X2.4

O-RING 21.2X2.4

product number: 91331PC9003

show photo

€ 4.00

24

O-RING, 21.2X2.4

product number: 91331PC9004

€ 4.00

25

WASHER,PLUG,DRAIN 12

WASHER,PLUG,DRAIN 12

product number: 9410912000

show photo

€ 1.00

26

PIN,SPLIT, 2.0

product number: 9420120250

€ 1.00

27

DOWEL,PIN,8X14

product number: 9430108140
rating:
show photo

€ 2.00

28

BOLT,FLANGE 6X14

BOLT,FLANGE 6X14

product number: 957010601400

show photo

€ 1.00

29

BOLT,FLANGE,6X40

BOLT,FLANGE,6X40

product number: 957010604000

show photo

€ 1.50

30

BOLT,FLANGE,6X28

BOLT,FLANGE,6X28

product number: 960010602807

show photo

€ 1.50
