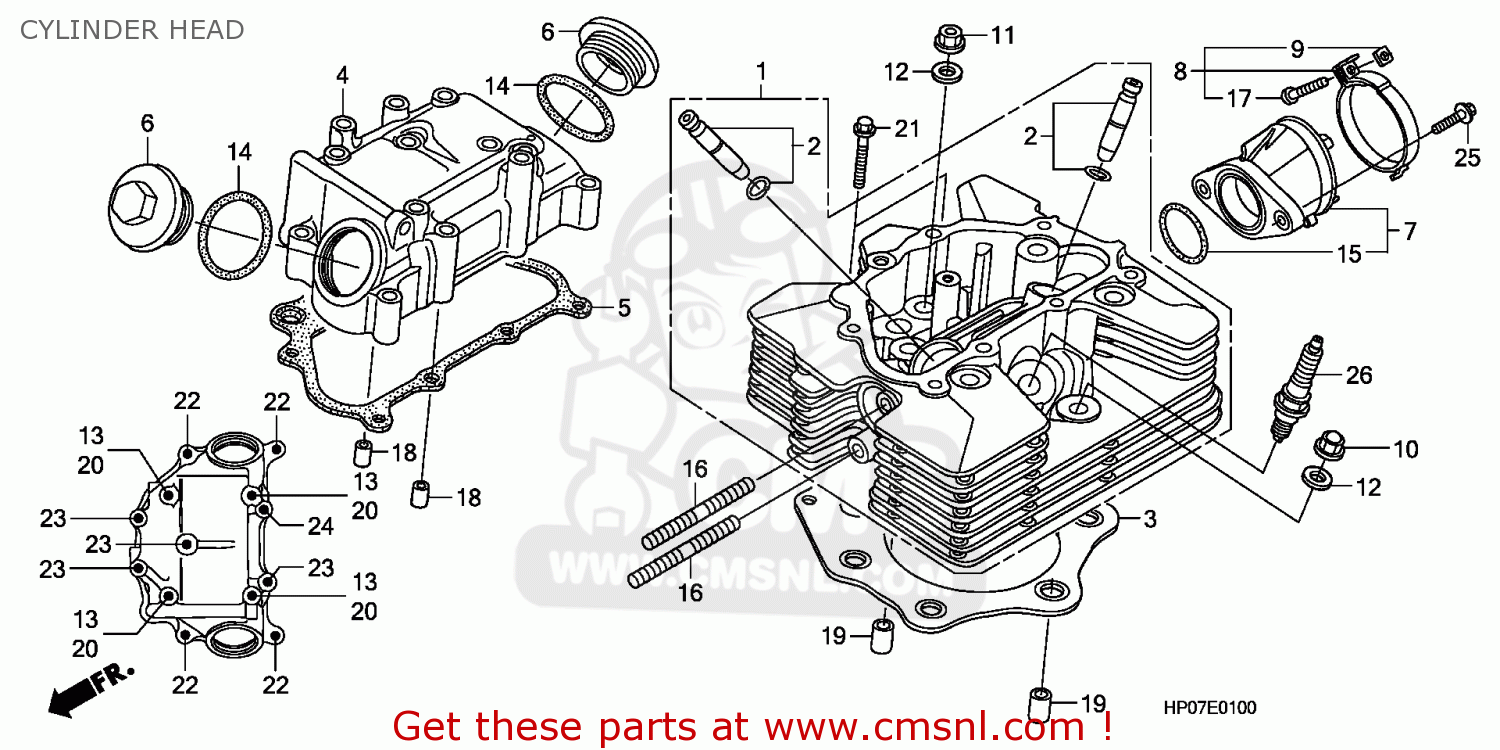

Honda TRX500FE 2010 (A) EUROPEAN DIRECT SALES / EC cylinder head

The Trx500fe 2010 (a) European Direct Sales / Ec Cylinder Head consists of twenty-seven pieces with the Head Comp,cylinde being the most expensive. The Washer Seal, 6mm is the lowest priced item on this Cylinder Head schematic. This part-list fiche shows all the components that make up the Trx500fe 2010 (a) European Direct Sales / Ec Cylinder Head .


view large image
Ref
product
price
Quantity

1
HEAD COMP,CYLINDE
product number: 12200HP0A01

€ 493.00

2
GUIDE ASSY,VALVE(
product number: 12204HP0305

€ 11.50

3
GASKET,CYLINDER H (NAS)
GASKET,CYLINDER H (NAS)
product number: 12251HP0A00

show photo

€ 14.00

3
GASKET,CYLINDER H (NAS)
GASKET,CYLINDER H (NAS)
product number: 12252HP0305

show photo

€ 14.00

4
COVER COMP,CYLIND
product number: 12310HP0A00

€ 148.00

5
GASKET,HEAD COVER (NAS)
GASKET,HEAD COVER (NAS)
product number: 12315HP0A00

show photo

€ 11.50

6
CAP, TAPPET
CAP, TAPPET
product number: 12361028000

show photo

€ 5.00

7
INSULATOR COMP,CA
INSULATOR COMP,CA
product number: 16210HP0A00

show photo

€ 36.00

8
BAND A,INSULATOR
BAND A,INSULATOR
product number: 16217MW4000

show photo

€ 9.50

9
NUT,SQUARE,5MM
NUT,SQUARE,5MM
product number: 16222MV4300

show photo

€ 1.50

10
NUT,FLANGE,10MM
product number: 90202HA0000
supersession: 90201HA0000

€ 4.00

11
NUT 10MM
product number: 90204634000
supersession: 9405010000

€ 1.50

12
WASHER,PLAIN 10MM
product number: 90401KF9900

€ 2.00

13
WASHER SEAL, 6MM
WASHER SEAL, 6MM
product number: 90441706000

show photo

€ 1.00

14
O-RING, 33.5X3
O-RING, 33.5X3
product number: 91302943003
supersession: 91304HB3003
show photo

€ 4.00

15
O-RING,39.5X2.6
O-RING,39.5X2.6
product number: 91352MG2792

show photo

€ 4.50

16
BOLT.STUD 2,8X25
BOLT.STUD 2,8X25
product number: 92900080250B

show photo

€ 2.00

17
SCREW,PAN,5X25
SCREW,PAN,5X25
product number: 93500050250G

show photo

€ 1.00

18
DOWEL,PIN,8X14
DOWEL,PIN,8X14
product number: 9430108140
rating:
show photo

€ 1.50

19
PIN,KNOCK,12X16
PIN,KNOCK,12X16
product number: 9430112160

show photo

€ 2.00

20
BOLT,FLANGE,6X28
BOLT,FLANGE,6X28
product number: 957010602800

show photo

€ 1.00

21
BOLT,FLANGE,6X32
BOLT,FLANGE,6X32
product number: 957010603200

show photo

€ 1.00

22
BOLT,FLANGE,6X40
BOLT,FLANGE,6X40
product number: 957010604000

show photo

€ 1.50

23
BOLT,FLANGE,6X65
BOLT,FLANGE,6X65
product number: 957010606500

show photo

€ 1.50

24
BOLT,FLANGE,6X75
BOLT,FLANGE,6X75
product number: 957010607500

show photo

€ 2.00

25
BOLT,FLANGE,6X22
BOLT,FLANGE,6X22
product number: 960010602200

show photo

€ 1.00

26
SPARK PLUG(BKR5E-11)
SPARK PLUG(BKR5E-11)
product number: 980795514E

show photo

€ 8.50
