Suzuki RM-Z250 2019 front fork damper

info

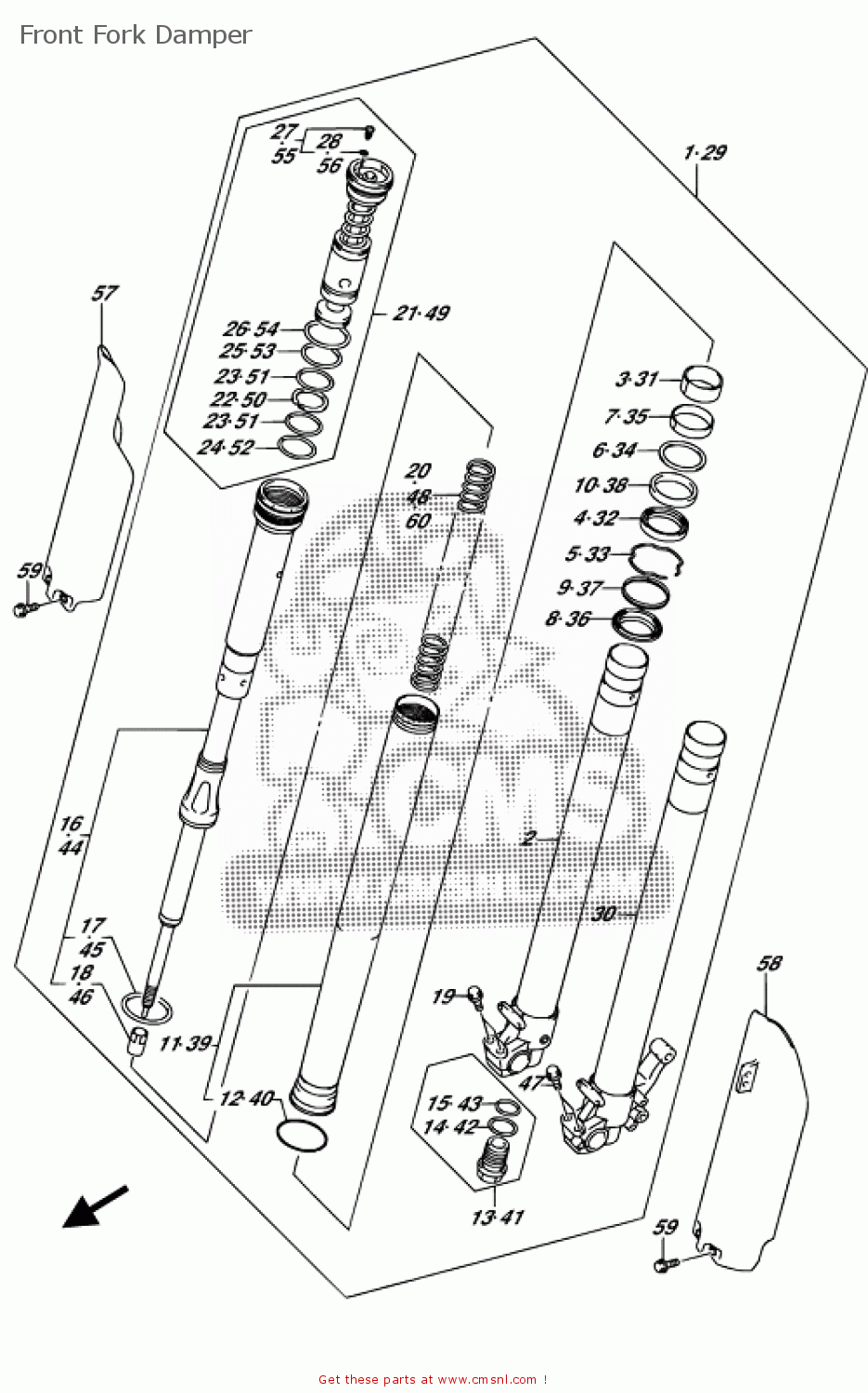

Of all the components used in this assembly the Damper Assy. Front Fork Rh is the most expensive. The Bolt(6x10) is the most widely applied product in the RM-Z250 2019 Front Fork Damper ( six times ). sixty-one components are shown in this Rm-z250 2019 Front Fork Damper exploded diagram.

view large image

Ref


product

price

Quantity

1

DAMPER ASSY. FRONT FORK RH

product number: 5110346K00

€ 1404.00

2

.TUBE. INNER RH

product number: 5111046K00

€ 261.50

3

PISTON

product number: 5112749HE0

€ 20.00

4

SEAL,OIL

product number: 5115349HE0

€ 15.50

5

RING,SNAP

product number: 5115649HE0

€ 3.50

6

.WASHER

product number: 5115846K00

€ 16.00

7

METAL,SLIDE

product number: 5116749HE0

show photo

€ 13.00

8

SEAL,DUST

product number: 5117349HE0

€ 13.00

9

SCRAPER

product number: 5115249HE0

€ 17.50

10

COLLAR

product number: 5115549HE0

show photo

€ 6.00

11

.TUBE. OUTER

product number: 5113046K00

€ 733.00

12

RING,SNAP

product number: 5121149H40

€ 4.00

13

ADJUSTER

product number: 5117046K00

€ 25.00

14

GASKET

product number: 5114801B20

€ 4.00

15

O-RING,FORK INNER TUBE

O-RING,FORK INNER TUBE

product number: 5118143010
supersession: 0928018010
show photo

€ 4.00

16

CYLINDER ASSY

product number: 5119046K00

€ 406.00

17

O RING

product number: 5111748G00
supersession: 5111748G01
show photo

€ 2.00

18

NUT

product number: 5181449H40

€ 11.50

19

BOLT

product number: 5116624F60

show photo

€ 4.50

20

.SPRING

product number: 5117146K00

€ 69.00

21

.VALVE ASSY.BASE

product number: 5135046K00

€ 239.00

22

..RING.BACKUP

product number: 5112446K00

€ 2.50

23

..O RING

product number: 5117446K00

€ 1.50

24

..O RING

product number: 5117546K00

€ 1.50

25

..O RING

product number: 5118646K00

€ 2.00

26

..O RING

product number: 5118746K00

€ 1.50

27

..SCREW

product number: 5135746K00

€ 2.50

28

...O RING

product number: 5135846K00

€ 1.50

29

DAMPER ASSY. FRONT FORK LH

product number: 5110446K00

€ 1404.00

30

.TUBE. INNER LH

product number: 5112046K00

€ 268.00

31

PISTON

product number: 5112749HE0

€ 20.00

32

SEAL,OIL

product number: 5115349HE0

€ 15.50

33

RING,SNAP

product number: 5115649HE0

€ 3.50

34

.WASHER

product number: 5115846K00

€ 16.00

35

METAL,SLIDE

product number: 5116749HE0

show photo

€ 13.00

36

SEAL,DUST

product number: 5117349HE0

€ 13.00

37

SCRAPER

product number: 5115249HE0

€ 17.50

38

COLLAR

product number: 5115549HE0

show photo

€ 6.00

39

.TUBE. OUTER

product number: 5113046K00

€ 733.00

40

RING,SNAP

product number: 5121149H40

€ 4.00

41

ADJUSTER

product number: 5117046K00

€ 25.00

42

GASKET

product number: 5114801B20

€ 4.00

43

O-RING,FORK INNER TUBE

O-RING,FORK INNER TUBE

product number: 5118143010
supersession: 0928018010
show photo

€ 4.00

44

CYLINDER ASSY

product number: 5119046K00

€ 406.00

45

O RING

product number: 5111748G00
supersession: 5111748G01
show photo

€ 2.00

46

NUT

product number: 5181449H40

€ 11.50

47

BOLT

product number: 5116624F60

show photo

€ 4.50

48

.SPRING

product number: 5117146K00

€ 69.00

49

.VALVE ASSY.BASE

product number: 5135046K00

€ 239.00

50

..RING.BACKUP

product number: 5112446K00

€ 2.50

51

..O RING

product number: 5117446K00

€ 1.50

52

..O RING

product number: 5117546K00

€ 1.50

53

..O RING

product number: 5118646K00

€ 2.00

54

..O RING

product number: 5118746K00

€ 1.50

55

..SCREW

product number: 5135746K00

€ 2.50

56

...O RING

product number: 5135846K00

€ 1.50

57

PROTECTOR,FRONT FORK,R

PROTECTOR,FRONT FORK,R

product number: 5150128H60

show photo

€ 29.50

58

PROTECTOR,FRONT FORK,L

product number: 5151028H70

€ 54.50

59

BOLT(6X10)

product number: 0911106098

show photo

€ 1.50

60

SPRING.FRONT

product number: 5117146K20

€ 68.50

60

SPRING.FRONT

product number: 5117146K10

€ 69.50
