Suzuki RM-Z250 2019 rear wheel

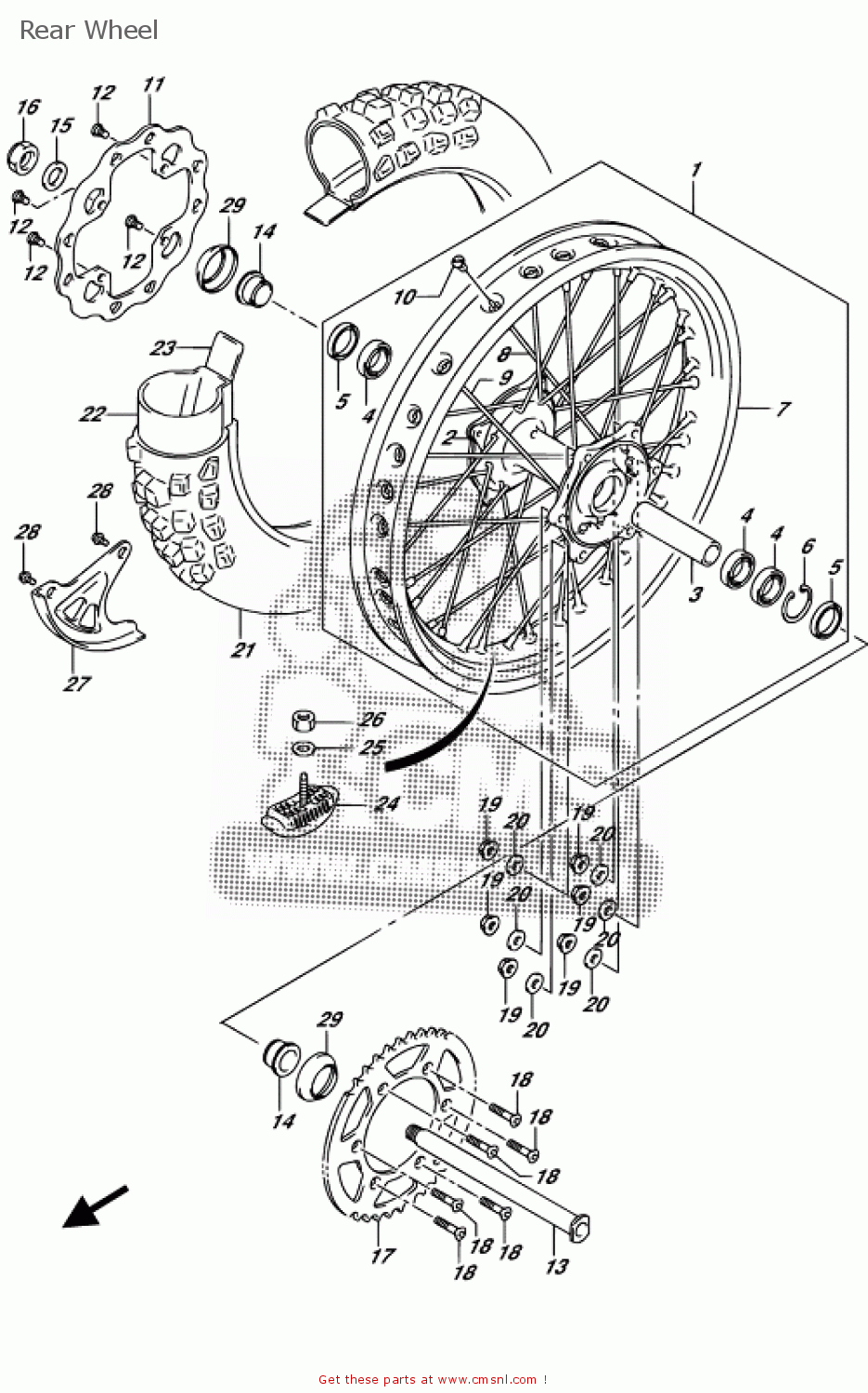

With thirty-six applications this Nipple,rr Wheel is the most specified part. The component with the lowest price in the Rear Wheel schematic is the Circlip. The thirty-two Rm-z250 2019 Rear Wheel component parts are all listed in this schematic.


view large image
Ref
product
price
Quantity

1
WHEEL ASSY.REAR
product number: 6410046K00
supersession: 6410046K01

€ 538.50

2
.HUB.REAR
product number: 6411135G30

€ 174.00

3
SPACER,RR HUB BEARING
SPACER,RR HUB BEARING
product number: 6473135G01

show photo

€ 31.50

4
BEARING(25X42X9)
BEARING(25X42X9)
product number: 0926225139

show photo

€ 28.00

5
SEAL,OIL(32X43X7)
SEAL,OIL(32X43X7)
product number: 0928332045
supersession: 0928332049
show photo

€ 13.00

6
CIRCLIP
CIRCLIP
product number: 0833141429

show photo

€ 1.50

7
.RIM.RR WHEEL
product number: 6531146K00

€ 252.50

8
SPOKE,RR WHEEL INNER
SPOKE,RR WHEEL INNER
product number: 6532135G10

show photo

€ 2.50

9
SPOKE,RR WHEEL OUTER
SPOKE,RR WHEEL OUTER
product number: 6532235G10

show photo

€ 2.50

10
NIPPLE,RR WHEEL
NIPPLE,RR WHEEL
product number: 6532535G10

show photo

€ 3.00

11
DISC,RR BRAKE
product number: 6921128H10

€ 113.50

12
SCREW(8X15)
SCREW(8X15)
product number: 0913908022

show photo

€ 3.50

13
AXLE,RR
product number: 6471135G10

€ 71.50

14
SPACER,RR AXLE
product number: 6475128H10

€ 23.00

15
WASHER(22X35X2)
WASHER(22X35X2)
product number: 0916022081
supersession: 0916022081A05
show photo

€ 2.00

16
NUT
product number: 6472113K00

€ 9.50

17
SPROCKET,RR(NT:47-520)
SPROCKET,RR(NT:47-520)
product number: 6451129F00

show photo

€ 79.50

17
REAR SPROCKET STEEL 520, 47T
REAR SPROCKET STEEL 520, 47T
product number: 1420347
alternative part
show photo

€ 55.50

17
SPROCKET,RR(NT:51 AL)
SPROCKET,RR(NT:51 AL)
product number: 6451140261
rating:
show photo

€ 76.00

17
REAR SPROCKET STEEL 520, 51T
REAR SPROCKET STEEL 520, 51T
product number: 1420351
alternative part
show photo

€ 62.50

17
SPROCKET,RR(NT:50)
SPROCKET,RR(NT:50)
product number: 6451136E00

show photo

€ 85.00

17
SPROCKET,RR(NT:48)
SPROCKET,RR(NT:48)
product number: 6451137E00

show photo

€ 87.50

18
BOLT(8X28)
BOLT(8X28)
product number: 0912008017

show photo

€ 1.50

19
NUT
NUT
product number: 0915908133

show photo

€ 3.00

20
WASHER(8.5X16X1.2)
WASHER(8.5X16X1.2)
product number: 0916008082

show photo

€ 1.50

21
TIRE.REAR
product number: 6511046K00

€ 118.50

22
TUBE
product number: 5520044610

€ 41.00

23
PROTECTOR,WHL INR TUBE
PROTECTOR,WHL INR TUBE
product number: 6526101B30

show photo

€ 3.50

24
STOPPER,BEAD(1.85)
STOPPER,BEAD(1.85)
product number: 6527043D00

show photo

€ 27.00

25
WASHER
WASHER
product number: 083220108A

show photo

€ 1.50

26
NUT
NUT
product number: 083100008A

show photo

€ 1.50

27
COVER,REAR DISC
COVER,REAR DISC
product number: 6923137F20

show photo

€ 8.50

28
BOLT(6X12)
BOLT(6X12)
product number: 0911606197

show photo

€ 2.50

29
COVER,RR AXLE SPACER
COVER,RR AXLE SPACER
product number: 6475228H00

show photo

€ 4.50
