Suzuki RM-Z250 2019 muffler

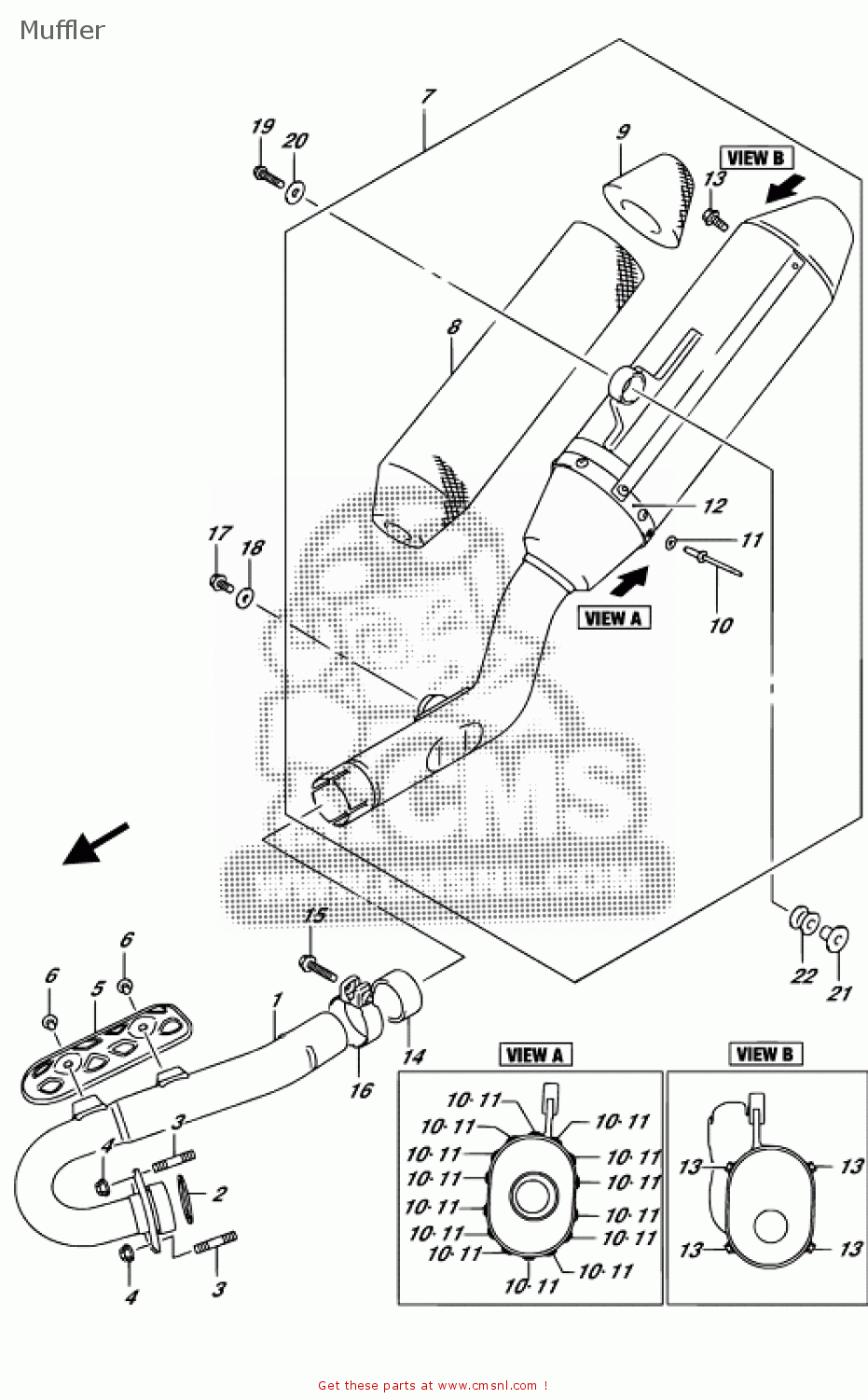

twenty-two components are listed in the schematic for this Rm-z250 2019 Muffler . With all the components that make up the RM-Z250 2019 Muffler assembly. The Washer is the most frequently specified with fourteen applications. Of all the components used in this assembly the Body.muffler is the most expensive.


view large image
Ref
product
price
Quantity

1
PIPE.EXHAUST
product number: 1415046K00

€ 160.50

2
GASKET,EXHAUST PIPE (NAS)
GASKET,EXHAUST PIPE (NAS)
product number: 1418149H00

show photo

€ 5.00

3
BOLT,STUD
BOLT,STUD
product number: 014210816A

show photo

€ 1.50

4
NUT
product number: 0915908144

€ 11.50

5
COVER,EXHAUST PIPE
COVER,EXHAUST PIPE
product number: 1418649H10

show photo

€ 24.00

6
BOLT(6X8)
BOLT(6X8)
product number: 0913906178

show photo

€ 2.50

7
BODY.MUFFLER
product number: 1431046K00

€ 586.00

8
.SILENCER.MUF
product number: 1435146K00

€ 157.50

9
GLASS WOOL,MUF TAIL
GLASS WOOL,MUF TAIL
product number: 1435549H00

show photo

€ 9.50

10
RIVET,MUFFLER
product number: 1445428H00

€ 2.00

11
WASHER
product number: 1445628H00

€ 1.50

12
BAND,FR
product number: 1478135G10

€ 6.00

13
BOLT
BOLT
product number: 015470612A

show photo

€ 1.50

14
CONNECTOR,MUFFLER
CONNECTOR,MUFFLER
product number: 1477142F10
rating:
show photo

€ 17.00

15
BOLT(8X35)
BOLT(8X35)
product number: 0910308391

show photo

€ 2.50

16
CLAMP,CONNECTOR
CLAMP,CONNECTOR
product number: 1445928H00

show photo

€ 17.00

17
BOLT(8X20)
BOLT(8X20)
product number: 0910308426

show photo

€ 4.50

18
WASHER(8X20X1)
product number: 0916008103

€ 2.00

19
BOLT(8X35)
BOLT(8X35)
product number: 0910308391

show photo

€ 2.50

20
WASHER(8.5X26X1.6)
WASHER(8.5X26X1.6)
product number: 0916008151

show photo

€ 2.00

21
SPACER(8.6X12X18.5)
SPACER(8.6X12X18.5)
product number: 0918008157

show photo

€ 5.00

22
CUSHION
CUSHION
product number: 0932012043
rating:
show photo

€ 6.00


CMS is an independent supplier of spare parts and has no commercial link with Honda, Suzuki, Yamaha or Kawasaki.
