Suzuki RM-Z250 2012 (L2) USA (E03) RMZ250 RM Z250 radiator

info

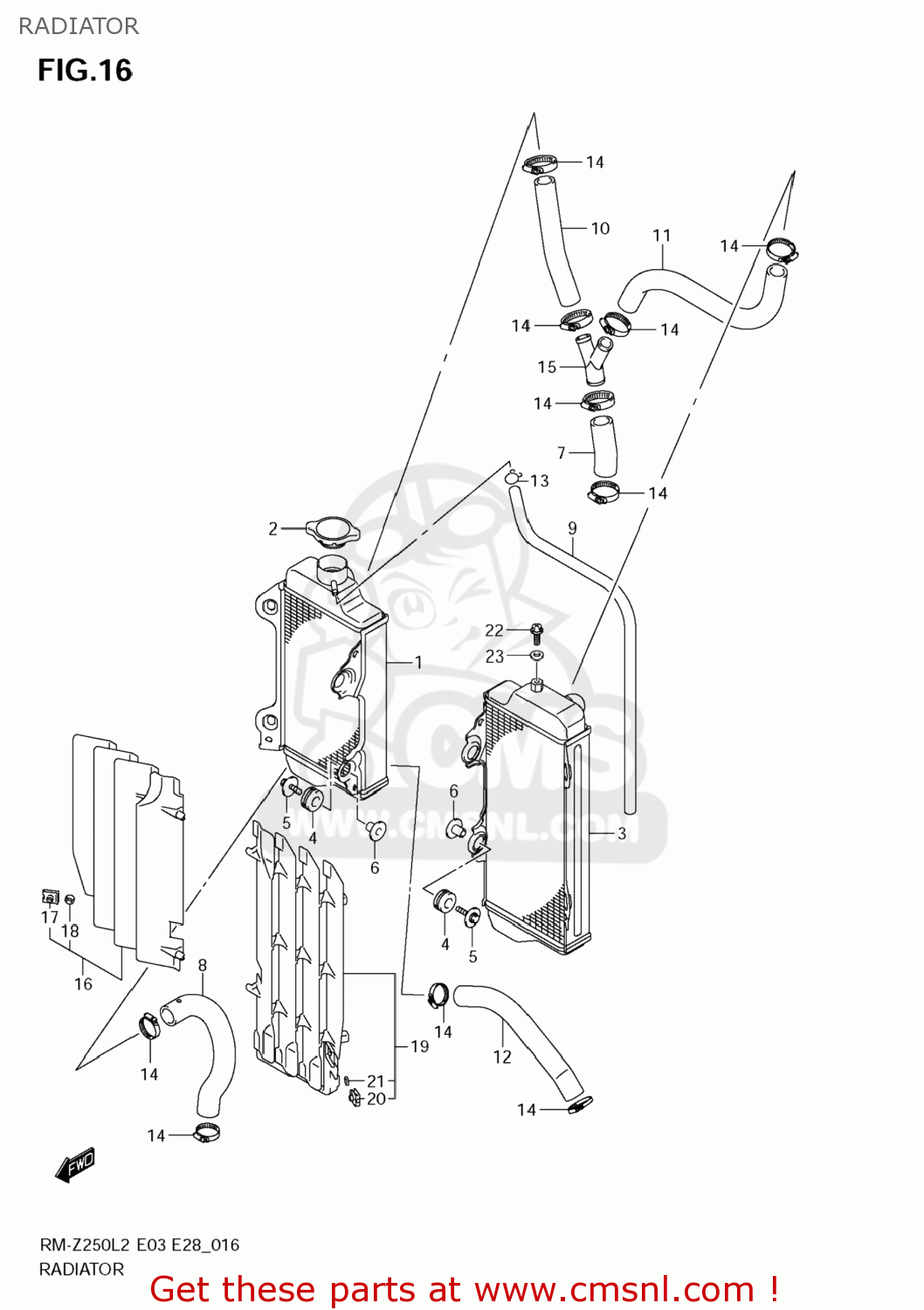

The Rm-z250 2012 (l2) Usa (e03) Rmz250 Rm Z250 Radiator consists of twenty-three pieces with the Radiator Comp, being the most expensive. In this schematic the "Clamp" is used most often. A sample from the products for the Radiator include: Gasket(6.4x11.5x0.8) (nas), Radiator Comp,, Nut, Union Bolt,air Vent.

view large image

Ref


product

price

Quantity

1

RADIATOR,WATER

product number: 1771049H01
supersession: 1771049H02
notes: 17710-49H02
Hurry: only 1 left!
show photo

€ 428.50

2

CAP COMP,RADIATOR

CAP COMP,RADIATOR

product number: 1773012C20
supersession: 1773008J00
notes: 17730-08J00
show photo

€ 34.00

3

RADIATOR COMP,

product number: 1772049H00
supersession: 1772049H01

€ 517.00

4

CUSHION,RADIATOR LWR

CUSHION,RADIATOR LWR

product number: 1778719A00

show photo

€ 2.50

5

BOLT(6X25)

product number: 0911606186

show photo

€ 2.50

6

SPACER(6.5X10.5X14.1)

SPACER(6.5X10.5X14.1)

product number: 0918006243

show photo

€ 4.50

7

HOSE,RADIATOR INLET NO.1

HOSE,RADIATOR INLET NO.1

product number: 1785149H10

show photo

€ 10.00

8

HOSE,RADIATOR OUTLET

HOSE,RADIATOR OUTLET

product number: 1785249H00

show photo

€ 13.00

9

HOSE(6X8X700)

product number: 0935160801700

show photo

€ 5.50

10

HOSE,RADIATOR INLET NO.2

product number: 1785349H10

€ 11.50

11

HOSE,RADIATOR INLET NO.3

product number: 1785449H10

€ 16.00

12

HOSE,RADIATOR JOINT LWR

HOSE,RADIATOR JOINT LWR

product number: 1785549H00

show photo

€ 10.50

13

CLIP

product number: 0940107101

show photo

€ 2.50

14

CLAMP

product number: 0940228513

show photo

€ 5.50

15

JOINT,RADIATOR HOSE

JOINT,RADIATOR HOSE

product number: 1785610H00

show photo

€ 5.50

16

LOUVER,RADIATOR,R

product number: 1780149H00

€ 22.00

17

NUT

product number: 0914806017

€ 2.50

18

SPACER(6.2X10X2.2)

SPACER(6.2X10X2.2)

product number: 0918006129

show photo

€ 1.50

19

LOUVER,RADIATOR,L

LOUVER,RADIATOR,L

product number: 1780249H00

show photo

€ 24.50

20

NUT

product number: 0914806017

€ 2.50

21

SPACER(6.2X10X2.2)

SPACER(6.2X10X2.2)

product number: 0918006129

show photo

€ 1.50

22

UNION BOLT,AIR VENT

UNION BOLT,AIR VENT

product number: 1756850F00

show photo

€ 3.50

23

GASKET(6.4X11.5X0.8) (NAS)

GASKET(6.4X11.5X0.8) (NAS)

product number: 0916806026

show photo

€ 2.50
