Suzuki GSX600F KATANA 1999 (X) USA (E03) frame cover (model y)

info

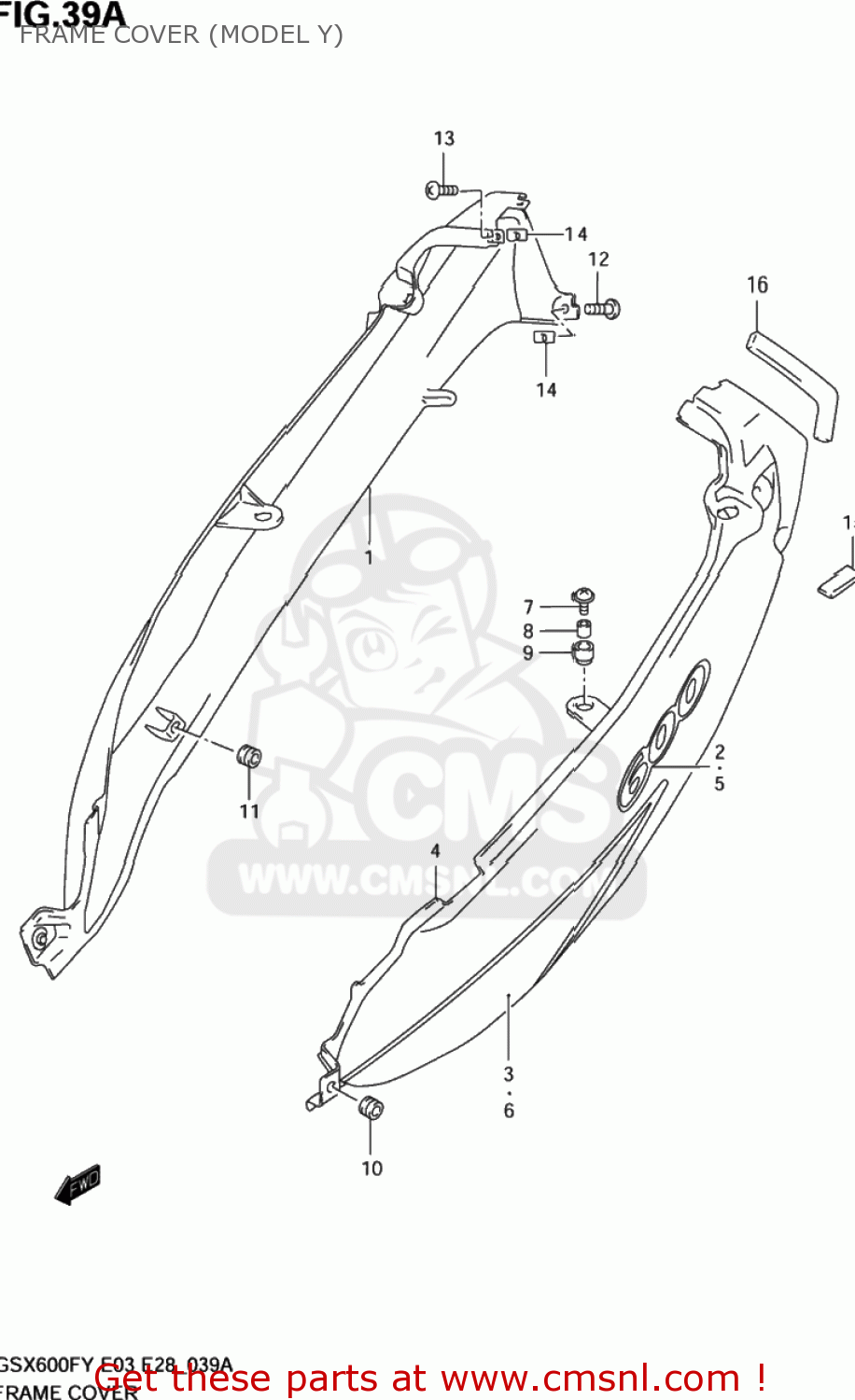

The Frame Cover (model Y) assembly is constructed from several parts from which the Cover,frame,r(blue) is the most expensive. The Nut is the most widely applied product in the GSX600F KATANA 1999 (X) USA (E03) FRAME COVER (MODEL Y) ( three times ). twenty-two components are shown in this Gsx600f Katana 1999 (x) Usa (e03) Frame Cover (model Y) exploded diagram.

view large image

Ref


product

price

Quantity

1-1

COVER,FRAME,R(BLUE)

product number: 4711008F40Y7E

€ 199.50

1-2

COVER,FRAME,R(RED)

product number: 4711008F40Y7M

€ 199.50

2-1

EMBLEM,FRAME COVER

EMBLEM,FRAME COVER

product number: 6813108F40BC6

show photo

€ 8.50

2-1

EMBLEM,FRAME COVER

EMBLEM,FRAME COVER

product number: 6813108F40BC7
alternative part
show photo

€ 8.50

2-1

EMBLEM,FRAME COVER

EMBLEM,FRAME COVER

product number: 6813108F40BC8
alternative part
show photo

€ 8.50

2-2

EMBLEM,FRAME COVER

EMBLEM,FRAME COVER

product number: 6813108F40BC8

show photo

€ 8.50

2-2

EMBLEM,FRAME COVER

EMBLEM,FRAME COVER

product number: 6813108F40BC6
alternative part
show photo

€ 8.50

2-2

EMBLEM,FRAME COVER

EMBLEM,FRAME COVER

product number: 6813108F40BC7
alternative part
show photo

€ 8.50

3-1

TAPE,FRAME COVER,R

product number: 6813508F00BF7

€ 24.50

3-2

TAPE,FRAME COVER,R

product number: 6813508F00BF9

€ 25.00

4-1

COVER,FRAME,L(BLUE)

product number: 4721008F40Y7E

€ 189.00

4-2

COVER,FRAME,L(RED)

product number: 4721008F40Y7M

€ 199.50

5-1

EMBLEM,FRAME COVER

EMBLEM,FRAME COVER

product number: 6813108F40BC6

show photo

€ 8.50

5-1

EMBLEM,FRAME COVER

EMBLEM,FRAME COVER

product number: 6813108F40BC7
alternative part
show photo

€ 8.50

5-1

EMBLEM,FRAME COVER

EMBLEM,FRAME COVER

product number: 6813108F40BC8
alternative part
show photo

€ 8.50

5-2

EMBLEM,FRAME COVER

EMBLEM,FRAME COVER

product number: 6813108F40BC8

show photo

€ 8.50

5-2

EMBLEM,FRAME COVER

EMBLEM,FRAME COVER

product number: 6813108F40BC6
alternative part
show photo

€ 8.50

5-2

EMBLEM,FRAME COVER

EMBLEM,FRAME COVER

product number: 6813108F40BC7
alternative part
show photo

€ 8.50

6-1

TAPE,FRAME COVER,L

TAPE,FRAME COVER,L

product number: 6814508F00BF7
Hurry: only 1 left!
show photo

€ 32.50

6-1

TAPE,FRAME COVER,L

TAPE,FRAME COVER,L

product number: 6814508F00BF9
alternative part
show photo

€ 25.00

6-1

TAPE,FRAME COVER,L

TAPE,FRAME COVER,L

product number: 6814508F00BU4
alternative part
show photo

€ 25.00

6-1

TAPE,FRAME COVER,L

TAPE,FRAME COVER,L

product number: 6814508F00EE3
alternative part
show photo

€ 25.00

6-2

TAPE,FRAME COVER,L

TAPE,FRAME COVER,L

product number: 6814508F00BF9

show photo

€ 25.00

6-2

TAPE,FRAME COVER,L

TAPE,FRAME COVER,L

product number: 6814508F00BF7
Hurry: only 1 left!
alternative part
show photo

€ 32.50

6-2

TAPE,FRAME COVER,L

TAPE,FRAME COVER,L

product number: 6814508F00BU4
alternative part
show photo

€ 25.00

6-2

TAPE,FRAME COVER,L

TAPE,FRAME COVER,L

product number: 6814508F00EE3
alternative part
show photo

€ 25.00

7

SCREW(6X20)

product number: 0913606105

show photo

€ 1.50

8

SPACER(6.5X10X9.4)

SPACER(6.5X10X9.4)

product number: 0918006286

show photo

€ 2.00

9

CUSHION

product number: 0932010045

show photo

€ 3.00

10

CUSHION

product number: 0932008028
supersession: 0932008514
show photo

€ 2.00

11

CUSHION

product number: 0932008018
supersession: 0932008513
rating:
show photo

€ 4.00

12

SCREW

product number: 0324115163
supersession: 032411516A
notes: 03241-1516A
show photo

€ 1.50

13

SCREW

product number: 0324115123
supersession: 032411512B
notes: 03241-1512B
show photo

€ 2.50

14

NUT

product number: 0914805038

show photo

€ 1.50

15

CUSHION

product number: 4489424A00

show photo

€ 1.50

16

CUSHION,FRAME COVER

CUSHION,FRAME COVER

product number: 4716108F00

show photo

€ 6.00
