Honda ST1100A PANEUROPEAN 1992 (N) FRANCE / YB radiator

This RADIATOR assembly utilises four Nut,serrat,5mm(s) - the highest specified component. The most reasonably priced component used on the St1100a Paneuropean 1992 (n) France / Yb Radiator is the Bolt,flang,6x16. The Radiator is made up of components including this Radiator Comp which is the most expensive.

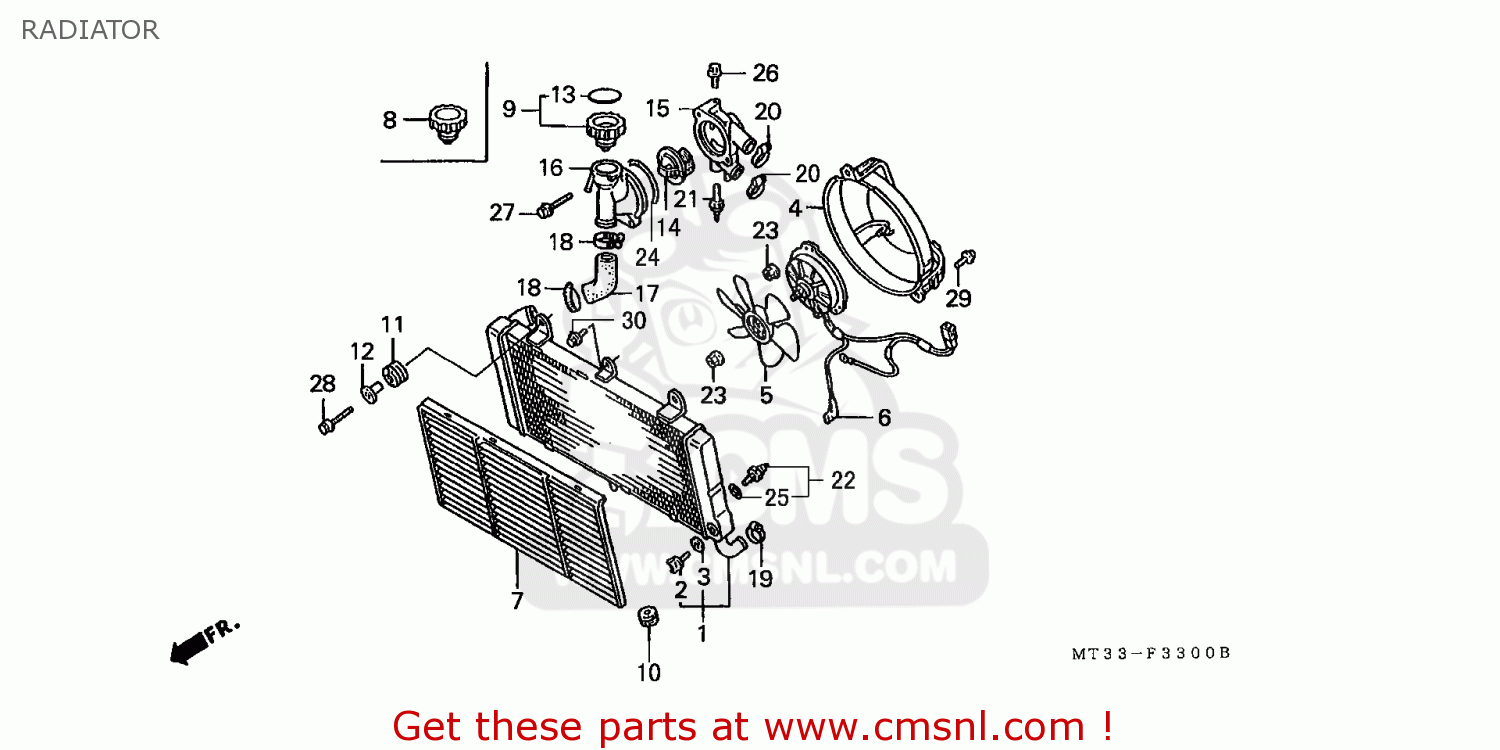

view large image
Ref
product
price
Quantity

1
RADIATOR COMP
product number: 19010MT3003
supersession: 19010MAJG20

€ 715.50

2
COCK,DRAIN (TOYO)
product number: 19011PH9004
supersession: 19011PH9014

€ 9.00

3
PAKING DRAIN
PAKING DRAIN
product number: 19012PA0004

show photo

€ 4.00

4
SHROUD COMP.(TOYO
SHROUD COMP.(TOYO
product number: 19015MT3003

show photo

€ 95.00

5
FAN COMP.,COOLING
FAN COMP.,COOLING
product number: 19020MM5003

show photo

€ 53.50

6
MOTOR,FAN
MOTOR,FAN
product number: 19030MT3003
Hurry: only 1 left!
show photo

€ 357.00

7
GRILL,RADIATOR
product number: 19032MT3000

€ 80.50

8
CAP COMP.,RADIATO
product number: 19045MT3620
supersession: 19045MY3621

€ 39.00

10
RUB,RADIATOR MTG.
RUB,RADIATOR MTG.
product number: 19051GE2000
rating:
show photo

€ 6.00

11
RUBBER,RAD.MOUNT
RUBBER,RAD.MOUNT
product number: 19051KA3830
rating:
show photo

€ 4.50

12
COLLAR,RAD MT
COLLAR,RAD MT
product number: 19052MN8000
supersession: 19052MGH640
rating:
show photo

€ 4.50

14
THERMOSTAT
THERMOSTAT
product number: 19300MG9000
rating:
show photo

€ 57.50

15
CASE,THERMOSTAT
CASE,THERMOSTAT
product number: 19311MT3000

show photo

€ 77.50

16
FILLER,NECK
FILLER,NECK
product number: 19312MS2000

show photo

€ 65.50

17
HOSE,RADIATOR (A)
HOSE,RADIATOR (A)
product number: 19503MT3000

show photo

€ 14.50

18
CLAMPER,RADIATOR
CLAMPER,RADIATOR
product number: 19509MM5003

show photo

€ 8.50

19
CLAMP.WATER HOSE
CLAMP.WATER HOSE
product number: 19516MB6000

show photo

€ 9.50

20
CLAMP,HOSE,22-29
CLAMP,HOSE,22-29
product number: 19517ML7691
rating:
show photo

€ 7.00

21
THERMO UNIT ASSY
THERMO UNIT ASSY
product number: 37750PC1004
rating:
show photo

€ 84.50

21
THERMO UNIT ASSY (NON O.E. ALTERNATIVE)
THERMO UNIT ASSY (NON O.E. ALTERNATIVE)
product number: 37750PC1004P
rating:
alternative part
show photo

€ 39.50

22
SWITCH ASSY.,THER
SWITCH ASSY.,THER
product number: 37760MT2003
rating:
show photo

€ 78.50

22
SWITCH .ASSY,THERMO (NON O.E. ALTERNATIVE)
SWITCH .ASSY,THERMO (NON O.E. ALTERNATIVE)
product number: 37760MT2003P
rating:
alternative part
show photo

€ 55.50

23
NUT,SERRAT,5MM
NUT,SERRAT,5MM
product number: 90315MK3003

show photo

€ 3.00

24
O-RING,54X2
O-RING,54X2
product number: 91307MB0003

show photo

€ 3.00

25
O-RING 13.5X1.4
O-RING 13.5X1.4
product number: 91307611000
supersession: 91307PH7660
show photo

€ 3.00

26
BOLT,FLANG,6X16
BOLT,FLANG,6X16
product number: 957010601600

show photo

€ 1.00

27
BOLT,FLANGE,6X22
BOLT,FLANGE,6X22
product number: 957010602200

show photo

€ 1.50

28
BOLT,FLANGE,6X22
BOLT,FLANGE,6X22
product number: 957010602207

show photo

€ 1.50

29
BOLT,FLANGE,SH 6X
BOLT,FLANGE,SH 6X
product number: 960010601000

show photo

€ 1.50

30
BOLT,FLANGE,SH 6X10
BOLT,FLANGE,SH 6X10
product number: 960010601007

show photo

€ 1.00
