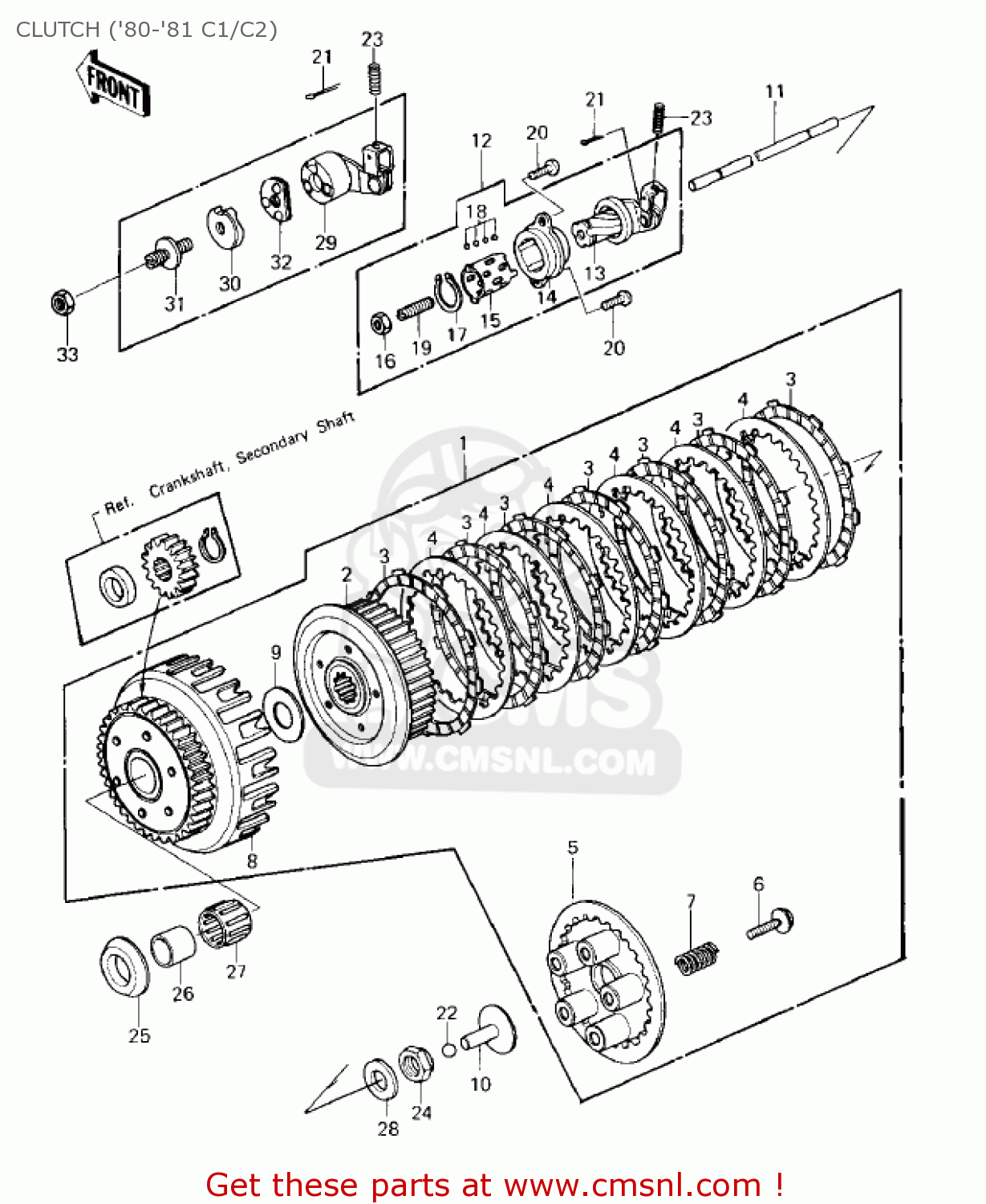

Kawasaki KZ550C2 LTD 1981 USA CANADA clutch ('80-'81 c1/c2)

info set as my vehicle my vehicles

In this schematic the "Ball-steel,1/8" is used most often. The most expensive part in this assembly is the Clutch Assy. The lowest price component in this Clutch ('80-'81 C1/c2) parts-list fiche is the Nut,8mm.


view large image
Ref
product
price
Quantity
1
CLUTCH ASSY
product number: 130811044
€
€ 541.00
add to cart
2
HUB-CLUTCH
product number: 130871052
supersession: 130871162
€
€ 86.50
add to cart
3
PLATE,CLUTCH FRICTION (NAS)
PLATE,CLUTCH FRICTION (NAS)
product number: 13088040

show photo
€
€ 11.50
add to cart
4
PLATE,CLUTCH STEEL (NAS)
PLATE,CLUTCH STEEL (NAS)
product number: 13089026

show photo
€
€ 6.00
add to cart
5
PLATE,CLUTCH SPRING (NAS)
PLATE,CLUTCH SPRING (NAS)
product number: 13187008

show photo
€
€ 47.50
add to cart
6
BOLT, CLUTCH SPR FITT
BOLT, CLUTCH SPR FITT
product number: 920011066

show photo
€
€ 3.50
add to cart
7
SPRING,CLUTCH
SPRING,CLUTCH
product number: 92081139

show photo
€
€ 5.00
add to cart
8
HOUSING-COMP-CLUTCH
HOUSING-COMP-CLUTCH
product number: 130951030

show photo
€
€ 292.00
add to cart
9
SPACER,25.5X47X2.5
SPACER,25.5X47X2.5
product number: 92026022

show photo
€
€ 6.00
add to cart
10
ROD-PUSH,CLUTCH SPRIN
ROD-PUSH,CLUTCH SPRIN
product number: 13116029
rating:
show photo
€
€ 17.00
add to cart
11
ROD-PUSH,CLUTCH,8X270
ROD-PUSH,CLUTCH,8X270
product number: 131161007
rating:
show photo
€
€ 22.50
add to cart
12
RELEASE ASSY,CLUTCH
product number: 13231020
notes: USE WITH 14026-1015
€
€ 54.50
add to cart
13
INNER, CLUTCH RELEASE
INNER, CLUTCH RELEASE
product number: 13102027
notes: USE WITH 14026-1015
show photo
€
€ 35.50
add to cart
14
OUTER,CLUTCH REREASEL
OUTER,CLUTCH REREASEL
product number: 13118011
notes: USE WITH 14026-1015
show photo
€
€ 13.00
add to cart
15
RETAINER
RETAINER
product number: 13197004
notes: USE WITH 14026-1015
show photo
€
€ 1.00
add to cart
16
NUT,8MM
NUT,8MM
product number: 318B0800
supersession: 318AA0800
notes: USE WITH 14026-1015
show photo
€
€ 0.50
add to cart
17
CIRCLIP-TYPE-C,15MM
CIRCLIP-TYPE-C,15MM
product number: 480J1500
notes: USE WITH 14026-1015
show photo
€
€ 1.00
add to cart
18
BALL-STEEL,1/8
BALL-STEEL,1/8
product number: 600A0400
notes: USE WITH 14026-1015
show photo
€
€ 2.00
add to cart
19
SCREW-SLOTTED,8X25
SCREW-SLOTTED,8X25
product number: 92014014
rating:
notes: USE WITH 14026-1015
Hurry: only 3 left!
show photo
€
€ 4.00
add to cart
20
SCREW-PAN HEAD,6X16
SCREW-PAN HEAD,6X16
product number: 220B0616
supersession: 220AA0616
notes: USE WITH 14026-1015
show photo
€
€ 2.00
add to cart
21
PIN-COTTER,1.6X15
PIN-COTTER,1.6X15
product number: 550D1615
supersession: 550AA1615
show photo
€
€ 1.50
add to cart
22
BALL-STEEL,3/8
BALL-STEEL,3/8
product number: 600A1200

show photo
€
€ 0.50
add to cart
23
SPRING-CLUTCH RELEASE
SPRING-CLUTCH RELEASE
product number: 92081069

show photo
€
€ 4.00
add to cart
24
NUT,20MM
NUT,20MM
product number: 920151555
rating:
show photo
€
€ 8.00
add to cart
25
SPACER,THRUST,T=5.5MM
SPACER,THRUST,T=5.5MM
product number: 92026116

show photo
€
€ 11.00
add to cart
26
BUSHING,CLUTCH
BUSHING,CLUTCH
product number: 92028178

show photo
€
€ 15.50
add to cart
27
BEARING-NEEDLE,KTV323
BEARING-NEEDLE,KTV323
product number: 92046028
rating:
show photo
€
€ 18.50
add to cart
28
WASHER,SPRING,20MM
product number: 92125002
€
€ 8.00
add to cart
29
RELEASE-COMP-CLUTCH
RELEASE-COMP-CLUTCH
product number: 131021008
notes: USE WITH 14026-1041
show photo
€
€ 32.50
add to cart
30
CAM-RELEASE,CLUTCH
CAM-RELEASE,CLUTCH
product number: 131191003
rating:
notes: USE WITH 14026-1041
show photo
€
€ 10.50
add to cart
31
SCREW,SLOTTED,8M/M
SCREW,SLOTTED,8M/M
product number: 920091009
notes: USE WITH 14026-1041
show photo
€
€ 2.50
add to cart
32
BEARING,B.CLUTCH
BEARING,B.CLUTCH
product number: 920451001
supersession: 140201091
notes: USE WITH 14026-1041
show photo
€
€ 7.00
add to cart
33
NUT,8MM
NUT,8MM
product number: 318B0800
supersession: 318AA0800
notes: USE WITH 14026-1041
show photo
€
€ 0.50
add to cart
