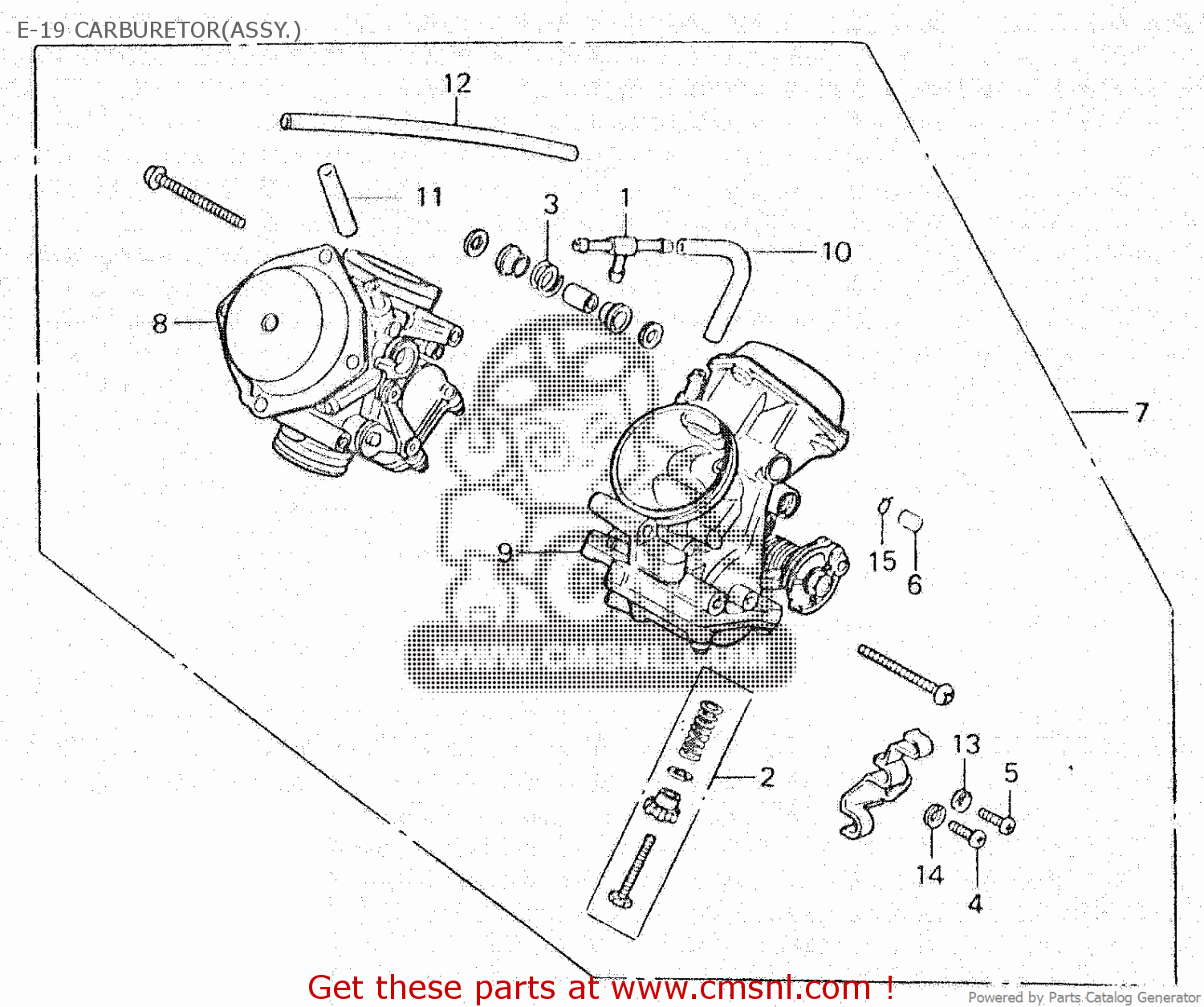

E-19 Carburetor(assy.) schematic Honda Vt500e 1985 (f)

The Honda E-19 CARBURETOR(ASSY.) has twenty-one products enlisted in the schematic. The most expensive part in this assembly is the (16100-mf5-672) Carburetor Assy..

find your parts in the schematic below

E-19 Carburetor(assy.) schematic


big image of E-19 Carburetor(assy.) schematic

add selected to cart
ref.no.
assist me
  product
assist me
serial numbers
assist me
Area
assist me
price
assist me
quantity
assist me
1 Joint Set
more info >

product number: 16026mf5671



this product is superseded by 17195MN5000

€9.00
add to cart
click to view the product page
€ 9.00

2 16028-mah-000 Screw Set B Screw Set B
more info >

product number: 16028me9671




(16028-MAH-000) SCREW SET B
this product is superseded by 16028MAH000

€29.00
add to cart
click to view the product page
€ 29.00

3 Spg vacuum Piston Spg,vacuum Piston
more info >

product number: 16053me9672




SPG,VACUUM PISTON

€3.50
add to cart
click to view the product page
€ 3.50

4 Screw pan Screw,pan
more info >

product number: 16080me9671




SCREW,PAN

€1.50
add to cart
click to view the product page
€ 1.50

5 Screw,pan
more info >

product number: 16081me9671



this product is superseded by 16081MR1004

€2.00
add to cart
click to view the product page
€ 2.00

7 Carburetor Assy
more info >

product number: 16100mf9601



this product is no longer available, however you can add it to your watch list

click to view the product page
upto serial number: 2100959 ED,U
area code : ED
Area : General Export

area code : U
Area : Australia
€ 940.00


Product is not available, add it to the watch list and receive a notification if it becomes available again.
assist me
7 Carburetor Assy.
more info >

product number: 16100mf9641



this product is no longer available, however you can add it to your watch list

click to view the product page
2G
area code : 2G
Area : Germany (type 2)
€ 0.00


Product is not available, add it to the watch list and receive a notification if it becomes available again.
assist me
7 Carburetor Assy.
more info >

product number: 16100mf5751



this product is superseded by 16100MF5752

€1182.50
add to cart
click to view the product page
upto serial number: 2100959 E,F,1G
area code : E
Area : England

area code : F
Area : France

area code : 1G
Area : Germany
€ 1182.50

7 Carburetor Assy.
more info >

product number: 16100mf9602



this product is no longer available, however you can add it to your watch list

click to view the product page
from serial number: 2100960
E,ED,F,U,1G
area code : E
Area : England

area code : ED
Area : General Export

area code : F
Area : France

area code : U
Area : Australia

area code : 1G
Area : Germany
€ 940.00


Product is not available, add it to the watch list and receive a notification if it becomes available again.
assist me
8 16101-mf9-602 Carburetor Assy r Carburetor Assy,r
more info >

product number: 16101mf9601




(16101-MF9-602) CARBURETOR ASSY,R
this product is superseded by 16101MF9602
Hurry: only 2 left!

€526.00
add to cart
click to view the product page
upto serial number: VD6UA [B] ED,U
area code : ED
Area : General Export

area code : U
Area : Australia
€ 526.00

Hurry: only 2 left!
8 Carburetor Assy.,
more info >

product number: 16101mf5751



this product is no longer available, however you can add it to your watch list

click to view the product page
upto serial number: VD6HC [A] E,F,1G
area code : E
Area : England

area code : F
Area : France

area code : 1G
Area : Germany
€ 526.00


Product is not available, add it to the watch list and receive a notification if it becomes available again.
assist me
8 Carburetor Assy.,
more info >

product number: 16101mf9602



€526.00
add to cart
click to view the product page
from serial number: VD6UA [C]
E,ED,F,U,1G
area code : E
Area : England

area code : ED
Area : General Export

area code : F
Area : France

area code : U
Area : Australia

area code : 1G
Area : Germany
€ 526.00

9 Carburetor Assy., L.
more info >

product number: 16102mf5751



this product is no longer available, however you can add it to your watch list

click to view the product page
upto serial number: VD6HC [A] E,F,1G
area code : E
Area : England

area code : F
Area : France

area code : 1G
Area : Germany
€ 448.50


Product is not available, add it to the watch list and receive a notification if it becomes available again.
assist me
9 Carburetor Assy,l
more info >

product number: 16102mf9602



this product is no longer available, however you can add it to your watch list

click to view the product page
upto serial number: VD6UA [B] ED,U
area code : ED
Area : General Export

area code : U
Area : Australia
€ 526.00


Product is not available, add it to the watch list and receive a notification if it becomes available again.
assist me
9 Carburetor Assy.,
more info >

product number: 16102mf9603



this product is no longer available, however you can add it to your watch list

click to view the product page
from serial number: VD6UA [C]
E,ED,F,U,1G
area code : E
Area : England

area code : ED
Area : General Export

area code : F
Area : France

area code : U
Area : Australia

area code : 1G
Area : Germany
€ 526.00


Product is not available, add it to the watch list and receive a notification if it becomes available again.
assist me
10 Pipe air Vent Pipe,air Vent
more info >

product number: 16143mf5671




PIPE,AIR VENT

€7.50
add to cart
click to view the product page
€ 7.50

11 Pipe,air Vent
more info >

product number: 16198mf5671



€32.00
add to cart
click to view the product page
€ 32.00

12 Pipe,air Vent
more info >

product number: 16199mf5671



this product is superseded by 16144MM8004

€11.50
add to cart
click to view the product page
€ 11.50

13 Washer spg  4mm Washer,spg.,4mm
more info >

product number: 9411104800




WASHER,SPG.,4MM

Using the correct fasteners, including Spring Washers, specified by the manufacturers can never be overstated. The right specification fasteners used throughout the machine is the only way to go.
Another M4 Spring Washer you may wish to consider:

9411104800HE

  • Use the correct specification fasteners. Why take the chance with any other make?
  • Order all the fasteners required in one shopping cart and avoid multiple shipping costs.
  • €0.50
    add to cart
    click to view the product page
    € 0.50

    14 Washer  Spring  5 Mm Washer, Spring, 5 Mm
    more info >

    product number: 9411105000




    WASHER, SPRING, 5 MM

    At a low price like this, for such a high quality component, it really is not worth trying to reuse the old part - in this case this Spring Washer should be replaced as a matter of course!
    For other related components, check our online schematic and ensure you order all the parts you need to complete your task perfectly!

  • Add as many items as you like to your shopping cart and pay just one fixed price shipping cost.
  • CMS is the supplier of choice for most enthusiasts when purchasing quality parts and accessories for Japanese motorcycles.
  • €0.50
    add to cart
    click to view the product page
    € 0.50

    15 Clip B7 tube Clip B7,tube
    more info >

    product number: 9500202070




    CLIP B7,TUBE

    The professional way to locate the tube is using this correct, OE Clip.
    For other professional looking items, you may require for the work you are carrying out, browse the product gallery and our online schematic for your model.
    A similar clip:

    9500202070HE

  • Make sure you order all the parts required at the same time and save money with a multiple order combining shipping costs.
  • Achieving motorcycle perfection is easier and less expensive when purchasing spares from us.
  • €0.50
    add to cart
    click to view the product page
    € 0.50
