Honda ST50K3 DAX BELGIUM clutch

info

The lowest price component in this Clutch parts-list fiche is the Screw,cross 5x10. A sample from the products for the Clutch include: Spring,clutch, Plate,drive, Guide, Clutch, Gasket, Clutch (mca). The Roller 8x10 is the most widely applied product in the ST50K3 DAX BELGIUM CLUTCH ( eight times ).

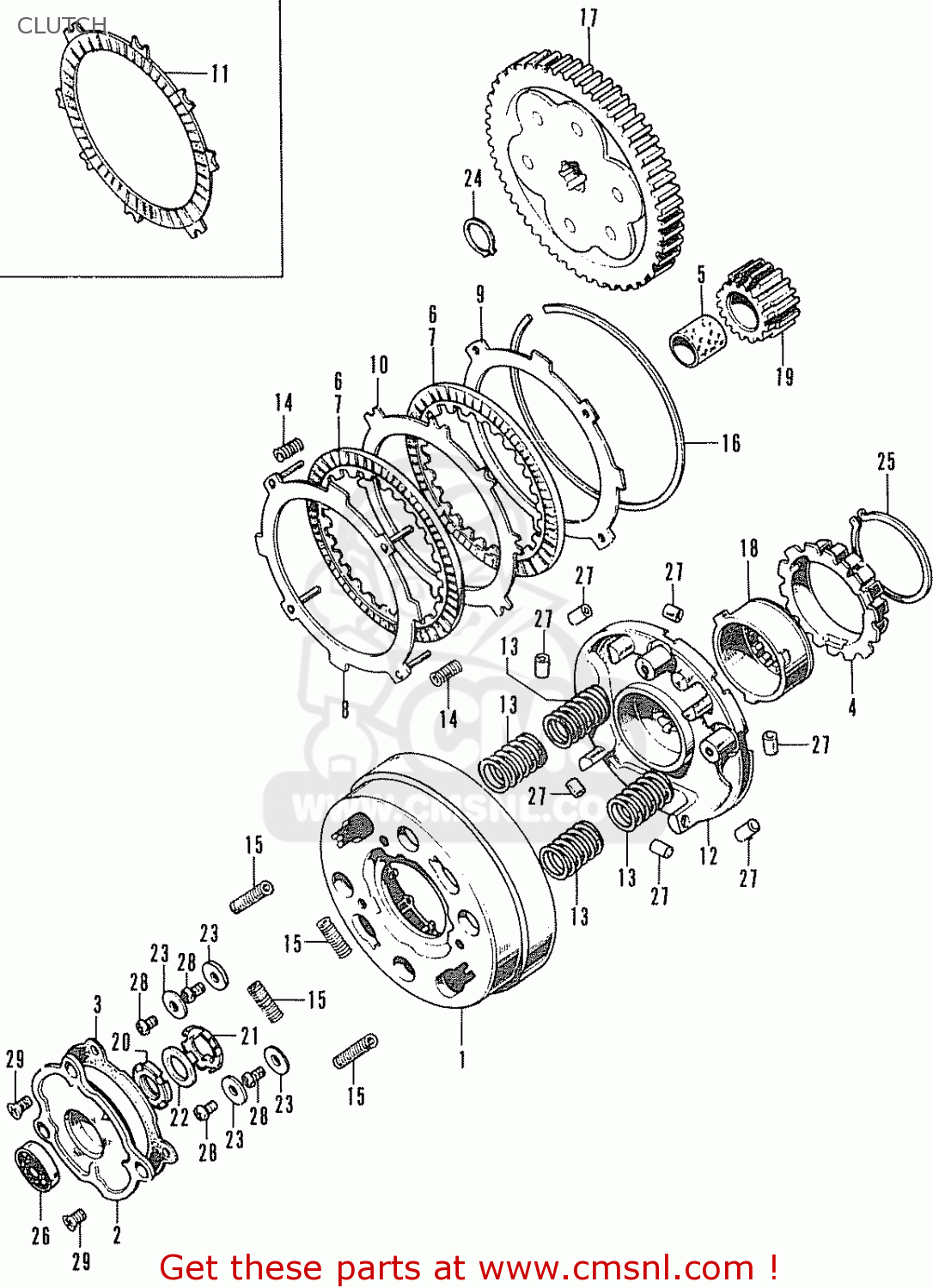

view large image

Ref


product

price

Quantity

1

OUTER CLUTCH

product number: 22101040030

show photo

€ 58.50

2

COVER,CLUTCH

product number: 22111040000

show photo

€ 9.50

3

GASKET, CLUTCH (MCA)

GASKET, CLUTCH (MCA)

product number: 22119040000
supersession: 22119040306
show photo

€ 3.00

3

GASKET KIT (A+B) (Ø39) TOP + BOTTOM (NAS (NON O.E. ALTERN (NAS)

GASKET KIT (A+B) (Ø39) TOP + BOTTOM (NAS (NON O.E. ALTERN (NAS)

product number: 06112041405P
rating:
alternative part
show photo

€ 13.50

4

CENTER,CLUTCH

product number: 22120040030
rating:
show photo

€ 41.50

5

GUIDE, CLUTCH

product number: 22131035020
supersession: 22131035030
show photo

€ 12.50

6

DISK, FRICTION (MCA)

DISK, FRICTION (MCA)

product number: 22201040000
supersession: 22201087306
rating:
show photo

€ 9.50

6

DISK, FRICTION (NON O.E. ALTERNATIVE)

DISK, FRICTION (NON O.E. ALTERNATIVE)

product number: 22201040000P
alternative part
show photo

€ 5.50

8

PLATE,CLUTCH

product number: 22310041010
supersession: 22310GB0910
rating:
show photo

€ 12.50

9

PLATE B,CLUTCH

product number: 22321041000
supersession: 22321046020
show photo

€ 6.00

10

PLATE C,CLUTCH

product number: 22331041000

show photo

€ 5.50

12

PLATE,DRIVE

product number: 22351120690

show photo

€ 38.50

13

SPRING, CLUTCH

product number: 22401040010

show photo

€ 3.00

14

SPRING,CLUTCH

product number: 22411041000

show photo

€ 2.50

15

SPRING, CLUTCH

product number: 22421040000

show photo

€ 2.00

16

SET RING,101.5M/M

SET RING,101.5M/M

product number: 22901001000

show photo

€ 3.00

17

GEAR,DRIVEN

product number: 23110098740

show photo

€ 89.00

17

CLUTCH SET, 2 PLATE COMPLETE (NON O.E. ALTERNATIVE)

CLUTCH SET, 2 PLATE COMPLETE (NON O.E. ALTERNATIVE)

product number: 22000035010P
alternative part
show photo

€ 49.50

18

OUTER,DRIVE GEAR

OUTER,DRIVE GEAR

product number: 23112041040
supersession: 23112041050
show photo

€ 22.00

19

GEAR DRIVE

product number: 23120041000
rating:
show photo

€ 31.00

20

NUT LOCK 14MM

product number: 90231087000
supersession: 90231087010
show photo

€ 3.00

20

CLUTCH NUT & LOCK PLATE SET (NON O.E. ALTERNATIVE)

CLUTCH NUT & LOCK PLATE SET (NON O.E. ALTERNATIVE)

product number: 0904A086000P
rating:
alternative part
show photo

€ 4.50

21

WASHER,LOCK 14MM

WASHER,LOCK 14MM

product number: 90431086000

show photo

€ 2.50

21

CLUTCH NUT & LOCK PLATE SET (NON O.E. ALTERNATIVE)

CLUTCH NUT & LOCK PLATE SET (NON O.E. ALTERNATIVE)

product number: 0904A086000P
rating:
alternative part
show photo

€ 4.50

22

WASHER B,LOCK

product number: 90432086000

show photo

€ 5.00

23

WASHER,STOPPER

product number: 90483041000

show photo

€ 2.50

24

CIRCLIP, 17M/M

product number: 90601001000

show photo

€ 1.50

26

B/BRG RAD N/COM

B/BRG RAD N/COM

product number: 9610060000
supersession: 961006000000
show photo

€ 13.00

27

ROLLER 8X10

product number: 91102041000
supersession: 91102041007
show photo

€ 2.00

28

SCREW,CROSS 5X10

SCREW,CROSS 5X10

product number: 93500050100A

show photo

€ 0.50

28

SCREW CROSS 5X10

SCREW CROSS 5X10

product number: 9350005010
supersession: 93500050100A
alternative part
show photo

€ 0.50

28

SCREW CROSS 5X10

SCREW CROSS 5X10

product number: 93500050100B
alternative part
show photo

€ 1.00

28

SCREW,CROSS 5X10

SCREW,CROSS 5X10

product number: 93500050100H
alternative part
show photo

€ 0.50

28

SCREW,PAN.5X10

product number: 93500050101G
supersession: 93500050100G
alternative part
show photo

€ 1.00

29

SCREW,FLAT,5X10

SCREW,FLAT,5X10

product number: 93600050100A

show photo

€ 1.00
