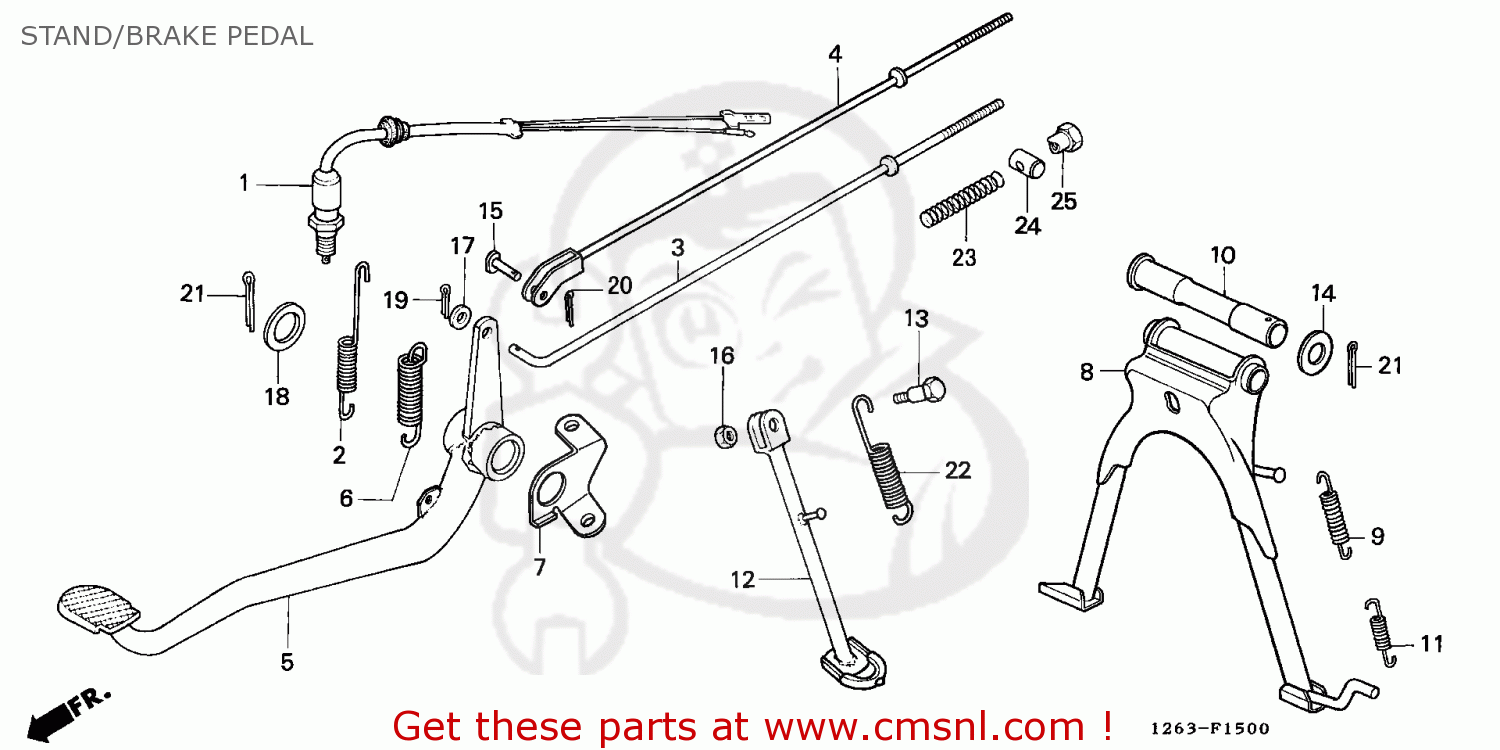

Honda ST50 DAX 1982 (C) GENERAL EXPORT (KPH) stand/brake pedal

The Honda STAND/BRAKE PEDAL has sixteen products enlisted in the schematic. The most reasonably priced component used on the St50 Dax 1982 (c) General Export (kph) Stand/brake Pedal is the Washer,plain, 6mm.


view large image
Ref
product
price
Quantity

1
SWITCH ASSY,,STOP
SWITCH ASSY,,STOP
product number: 35350098005

show photo

€ 17.50

1
SWITCH ASSY, STOP (NON O.E. ALTERNATIVE)
SWITCH ASSY, STOP (NON O.E. ALTERNATIVE)
product number: 35350098005P
alternative part
show photo

€ 12.50

2
SPRING, SWITCH
SPRING, SWITCH
product number: 35357046000

show photo

€ 2.00

3
ROD,RR.BRAKE
ROD,RR.BRAKE
product number: 43451098770

show photo

€ 7.00

5
PEDAL,BRAKE
PEDAL,BRAKE
product number: 46500098000
rating:
show photo

€ 34.50

6
SPRING,BRK.PEDAL
SPRING,BRK.PEDAL
product number: 46514086720

show photo

€ 3.50

12
BAR,SIDE STAND
product number: 50530098700

€ 21.50

13
SCREW,STAND PIVOT
SCREW,STAND PIVOT
product number: 90108223000
rating:
show photo

€ 4.50

16
NUT,HEX.,10MM
NUT,HEX.,10MM
product number: 94002100000S
rating:
show photo

€ 1.00

17
WASHER,PLAIN, 6MM
WASHER,PLAIN, 6MM
product number: 9410106000

show photo

€ 0.50

18
WASHER 14MM
WASHER 14MM
product number: 9410114000

show photo

€ 1.00

19
PIN,COTTER 1.6X15
PIN,COTTER 1.6X15
product number: 9420116150

show photo

€ 0.50

21
PIN,SPLIT,3X25
PIN,SPLIT,3X25
product number: 9420130250

show photo

€ 1.00

22
SPRING,D STAND
SPRING,D STAND
product number: 9501472402
rating:
show photo

€ 4.00

23
SPG.A,BRAKE ROD
SPG.A,BRAKE ROD
product number: 9501473100

show photo

€ 1.50

24
JOINT A,BRAKE ARM
JOINT A,BRAKE ARM
product number: 9501531001

show photo

€ 1.50

25
NUT A,FR.BRK.ADJ.
NUT A,FR.BRK.ADJ.
product number: 9501541000

show photo

€ 1.50
