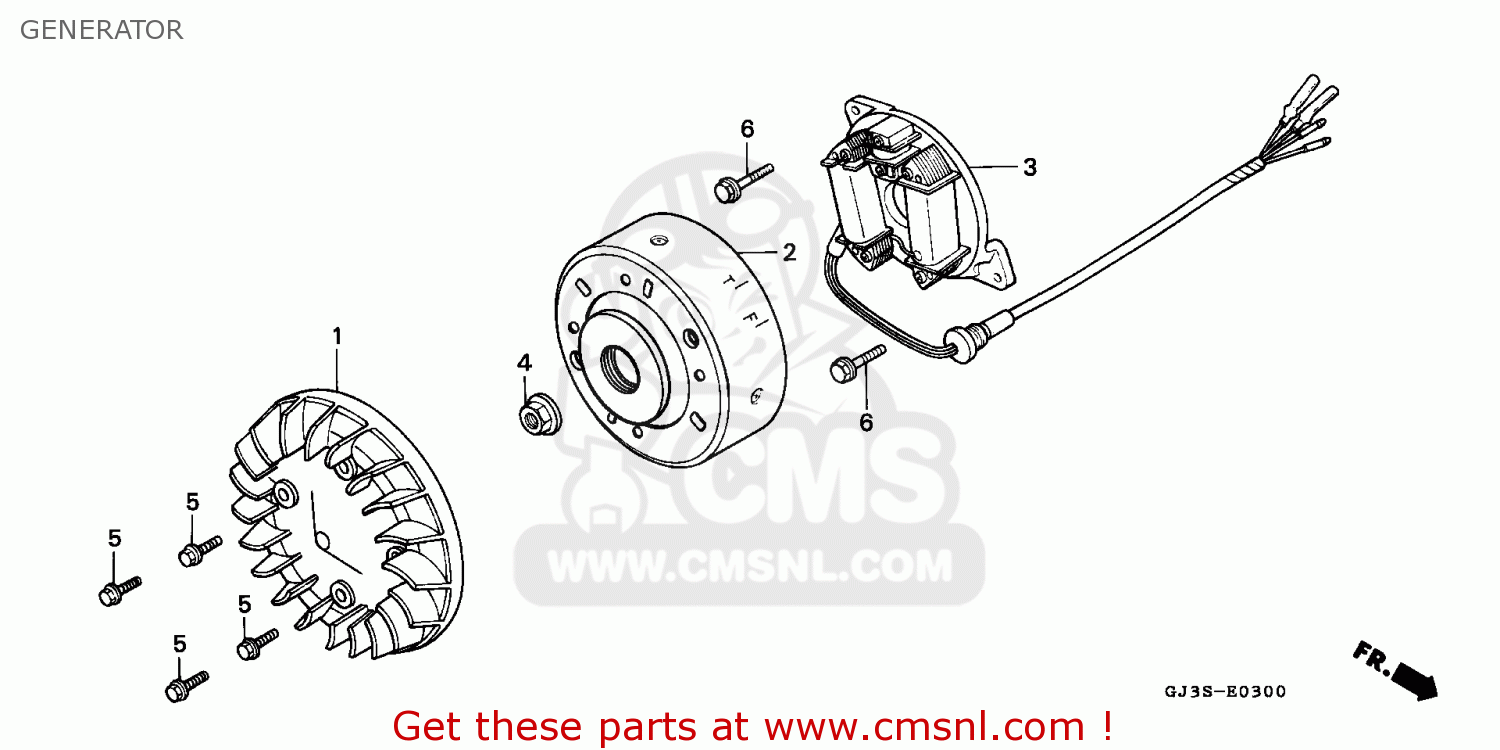

Honda SH50 SCOOPY 1993 (P) BELGIUM CMF KPH generator

Some items from this specific schematic: Bolt Flang 6x20, Bolt,flange,6x12, Nut,hex.,10mm, Stator Comp.(c.d.. The sub assemblies and components that make up this Generator include this Flywheel Comp, the most expensive part. The component with the lowest price in the GENERATOR schematic is the Bolt,flange,6x12.


view large image
Ref
product
price
Quantity

1
FAN COMP,COOLING
FAN COMP,COOLING
product number: 19510GC7000

show photo

€ 16.00

2
FLYWHEEL COMP
product number: 31110GJ3621
Hurry: only 1 left!

€ 149.50

3
STATOR COMP.(C.D.
product number: 31120GJ3731

€ 128.00

4
NUT,HEX.,10MM
NUT,HEX.,10MM
product number: 90308357000

show photo

€ 4.00

5
BOLT,FLANGE,6X12
BOLT,FLANGE,6X12
product number: 960010601200

show photo

€ 1.50

5
BOLT,FLG.,6X16
BOLT,FLG.,6X16
product number: 90003883000
supersession: 957010601608
alternative part
show photo

€ 1.00

5
BOLT,HEX 6X12
BOLT,HEX 6X12
product number: 9200006012
supersession: 9210106012
alternative part
show photo

€ 1.00

5
BOLT,HEX.,6X12
BOLT,HEX.,6X12
product number: 920000601208
supersession: 92101060120H
alternative part
show photo

€ 1.00

5
BOLT,HEX 6X12
BOLT,HEX 6X12
product number: 92000060120A
supersession: 9200006012
alternative part
show photo

€ 1.00

5
BOLT HEX.,6X12
BOLT HEX.,6X12
product number: 92000060120G
supersession: 92101060120G
alternative part
show photo

€ 1.50

6
BOLT FLANG 6X20
BOLT FLANG 6X20
product number: 960010602000

show photo

€ 1.50
