Honda NC50 EXPRESS 1981 (B) USA rear fender

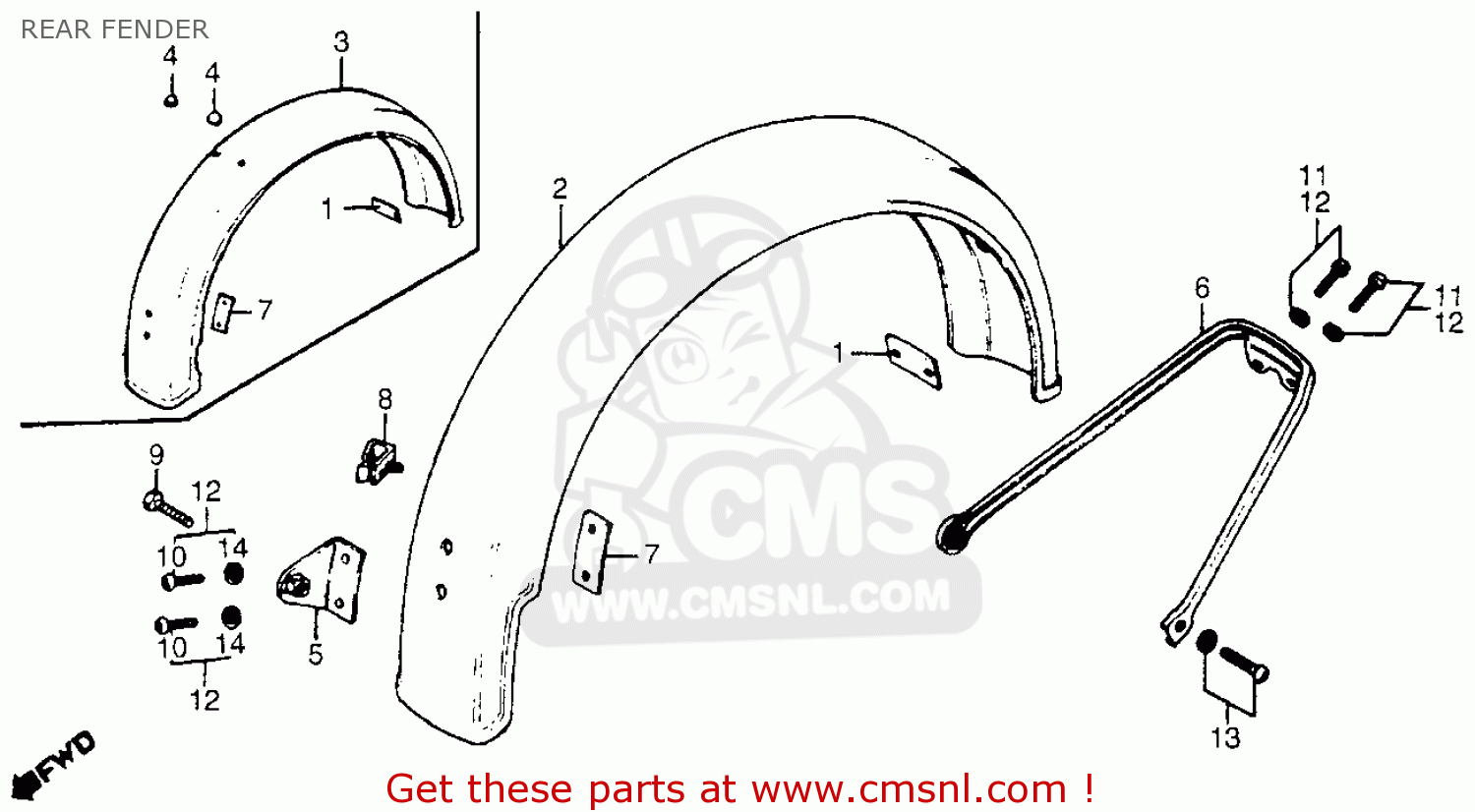

The Rear Fender assembly is constructed from several parts from which the Pnl,rr.fend*nh-24 is the most expensive. twelve components are shown in this Nc50 Express 1981 (b) Usa Rear Fender exploded diagram. A sample from the products for the Rear Fender include: Clamp, Cable, Pnl,rr.fend*nh-24, Bracket, Fender, Nut.


view large image
Ref
product
price
Quantity

1
NUT,FENDER SET
NUT,FENDER SET
product number: 61106147670

show photo

€ 2.50

3
PNL,RR.FEND*NH-24
product number: 80101191000ZD

€ 19.50

4
PLUG,RR.FENDER
PLUG,RR.FENDER
product number: 80103192600

show photo

€ 2.50

5
BRACKET, FENDER
BRACKET, FENDER
product number: 80104147000

show photo

€ 4.50

6
STAY,RR.FENDER
STAY,RR.FENDER
product number: 80106147671

show photo

€ 11.50

7
NUT
NUT
product number: 80107147000

show photo

€ 2.50

8
CLAMP, CABLE
CLAMP, CABLE
product number: 80110147000

show photo

€ 4.00

9
BOLT-WASHER (6X14)
product number: 90111GC1000

€ 2.00

9
BOLT-WASHER,6X14
BOLT-WASHER,6X14
product number: 934810601400
supersession: 934010601400
show photo

€ 1.00

12
SCREW-WASHER,5X10
SCREW-WASHER,5X10
product number: 938920501000

show photo

€ 1.00

13
SCREW-WASH. 6X20
SCREW-WASH. 6X20
product number: 938920602000

show photo

€ 0.50

13
WASHER-SCREW,6X20
product number: 938920602010
supersession: 938920602000

€ 0.50
