Honda GV100\A2\13ZG1IE1 oil pan

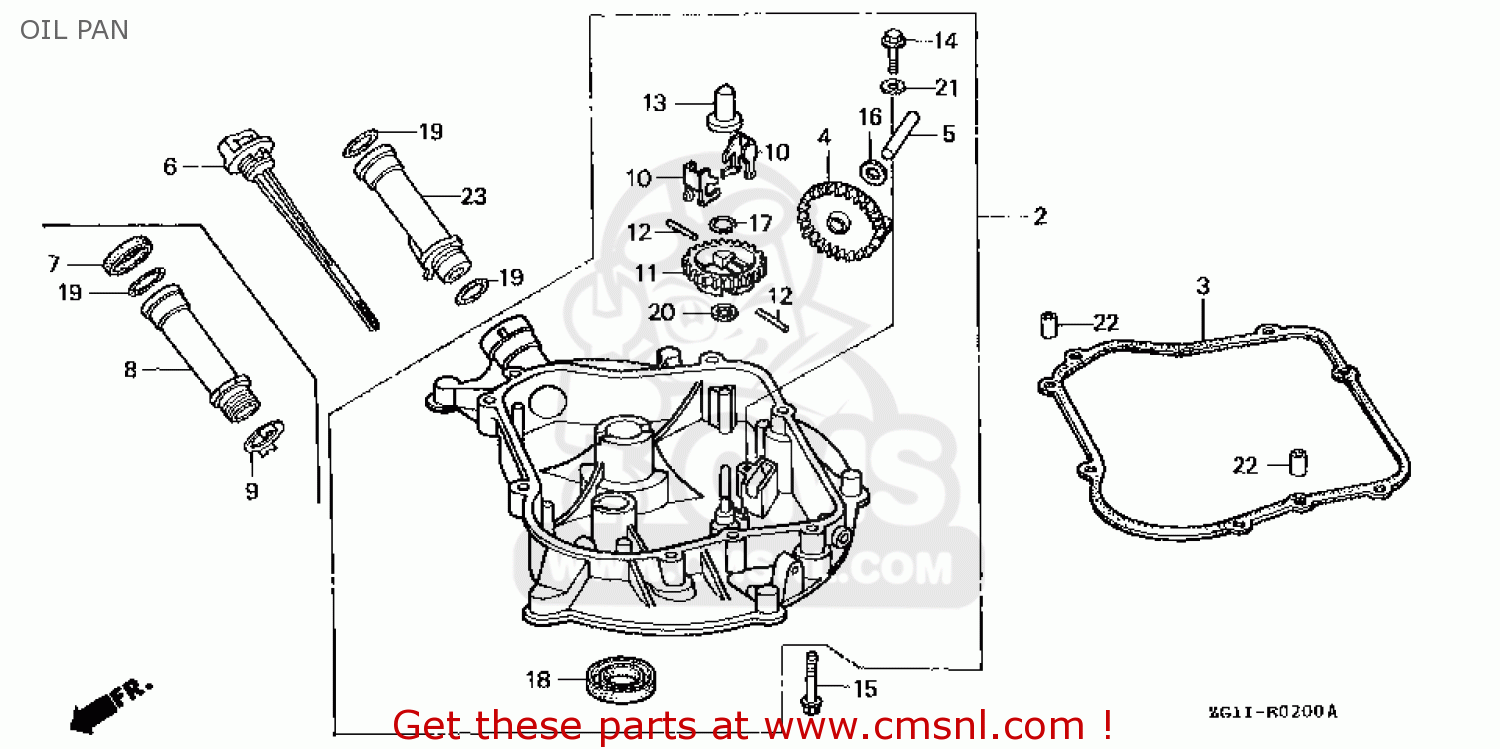

A sample from the products for the Oil Pan include: O-ring,22.1x2, Hold,goven.weight, Bolt,flange,5x16, Pin Gov Weight. The Washer,plain, 6mm is the lowest priced item on this Oil Pan schematic. This part-list fiche shows all the components that make up the Gv100\a2\13zg1ie1 Oil Pan .


view large image
Ref
product
price
Quantity

002
PAN ASSY,OIL
product number: 11300ZL1000

€ 168.00

003
PKG,CASE COVER
PKG,CASE COVER
product number: 11381ZL1000

show photo

€ 5.00

004
SLINGER,OIL
product number: 15331ZG1750

€ 11.50

005
SHAFT,OIL SLINGER
product number: 15332896700

€ 5.00

006
GAUGE,OIL LEVEL
product number: 15651ZL1000

€ 11.50

010
WEIGHT,GOVERNOR
product number: 16511ZL1000

€ 2.00

011
HOLD,GOVEN.WEIGHT
product number: 16512ZG0000

€ 11.50

012
PIN GOV WEIGHT
PIN GOV WEIGHT
product number: 16513ZE1000

show photo

€ 2.00

013
SLIDER,GOVERNOR
product number: 16531ZG0000

€ 4.50

014
BOLT,FLANGE,5X16
BOLT,FLANGE,5X16
product number: 90005896000

show photo

€ 2.50

015
BOLT,FLANG,6X28
BOLT,FLANG,6X28
product number: 90015883000

show photo

€ 4.00

017
CLIP,GOV HOLDER
CLIP,GOV HOLDER
product number: 90602ZE1000

show photo

€ 1.50

018
OIL,SEAL,23.5X36X
product number: 91201ZL1004

€ 4.00

019
O-RING,22.1X2
O-RING,22.1X2
product number: 91305679003

show photo

€ 3.50

020
WASHER,PLAIN, 6MM
WASHER,PLAIN, 6MM
product number: 9410106000

show photo

€ 0.50

021
WASHER,PLAIN,5MM
WASHER,PLAIN,5MM
product number: 9410305000

show photo

€ 0.50

022
DOWEL,PIN,8X14
DOWEL,PIN,8X14
product number: 9430108140
rating:
show photo

€ 2.00

023
EXTN,OIL FILLER
product number: 15631ZL1000

€ 4.50
