Honda GSV190LA\S3A\14Z8E701 flywheel

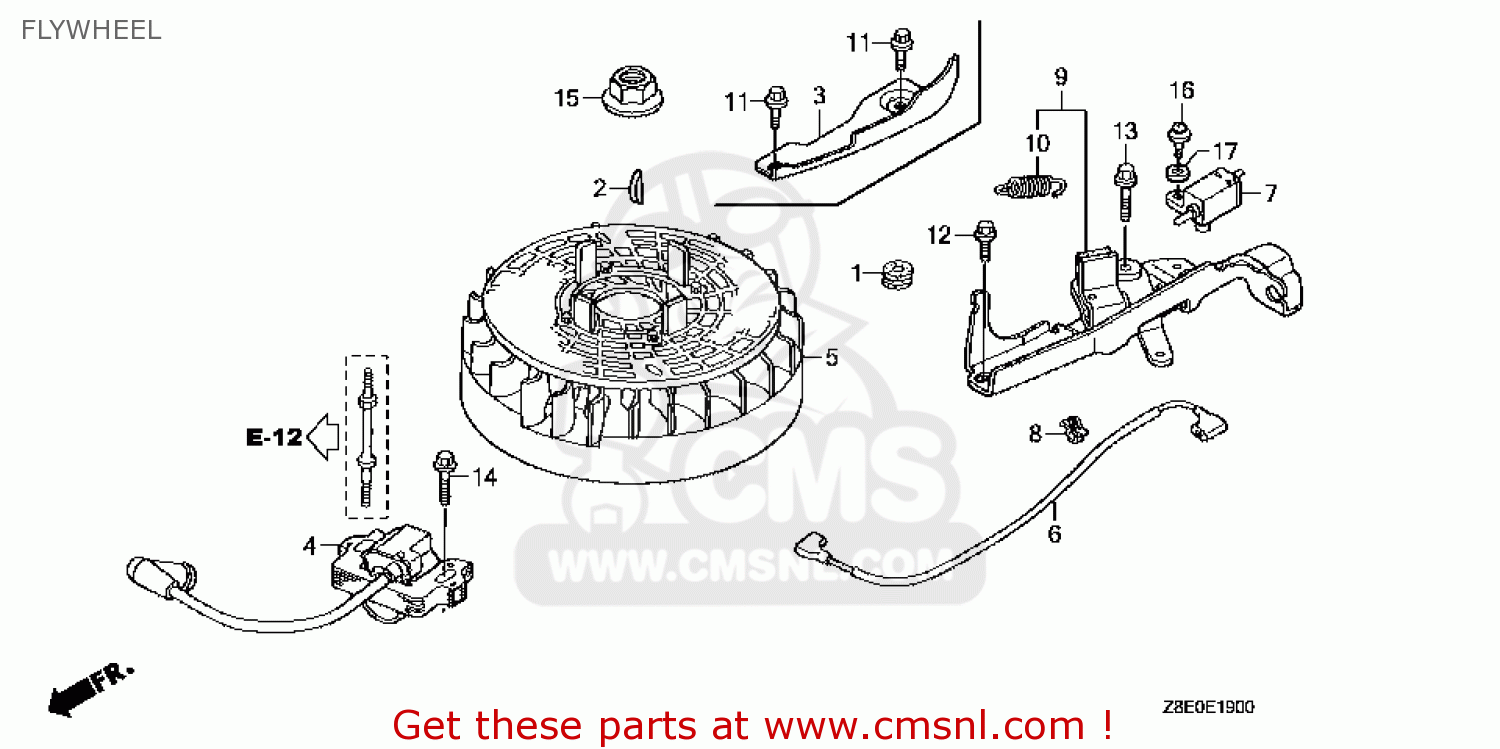

The Screw-wash.,4x12 is the lowest priced item on this Flywheel schematic. sixteen components are shown in this Gsv190la\s3a\14z8e701 Flywheel exploded diagram.


view large image
Ref
product
price
Quantity

001
GROM.A,RR.COVER
GROM.A,RR.COVER
product number: 11344MB0000

show photo

€ 3.50

002
KEY,WOODRUFF25X18
KEY,WOODRUFF25X18
product number: 13331357000
rating:
show photo

€ 5.00

004
COIL ASSY.,IGNITI
product number: 30500Z0J003
supersession: 30500Z8B901

€ 90.00

005
FLYWHEEL ASSY
product number: 31105Z0Y010

€ 78.00

006
CORD,STOP SW
product number: 32195ZM0800

€ 10.50

007
SW ASSY,ENG STOP
SW ASSY,ENG STOP
product number: 35120ZM0003

show photo

€ 14.00

008
HOLDER,WIRE
product number: 51125Z0L003

€ 3.50

008
CLIP A,CABLE
product number: 90681959003

€ 1.50

009
BRAKE SUB ASSY
product number: 75110Z0L800

€ 49.00

010
SPRING,BRAKE LEVE
product number: 75113ZM0000

€ 3.00

012
BOLT,FLANGE,6X14
BOLT,FLANGE,6X14
product number: 90014952000

show photo

€ 4.00

013
BOLT,FLANGE,6X23
BOLT,FLANGE,6X23
product number: 90018ZE1000

show photo

€ 3.00

014
BOLT,FLANGE,6X20
BOLT,FLANGE,6X20
product number: 90022888010

show photo

€ 3.00

015
NUT,FLANGE 14MM
product number: 90213S3Y000

€ 5.50

016
SCREW-WASH.,4X12
SCREW-WASH.,4X12
product number: 938920401200

show photo

€ 1.00

017
WASHER,PLAIN,4MM
WASHER,PLAIN,4MM
product number: 9410304000

show photo

€ 1.00
