Honda GSV190A\A1AF\14Z2D403 muffler

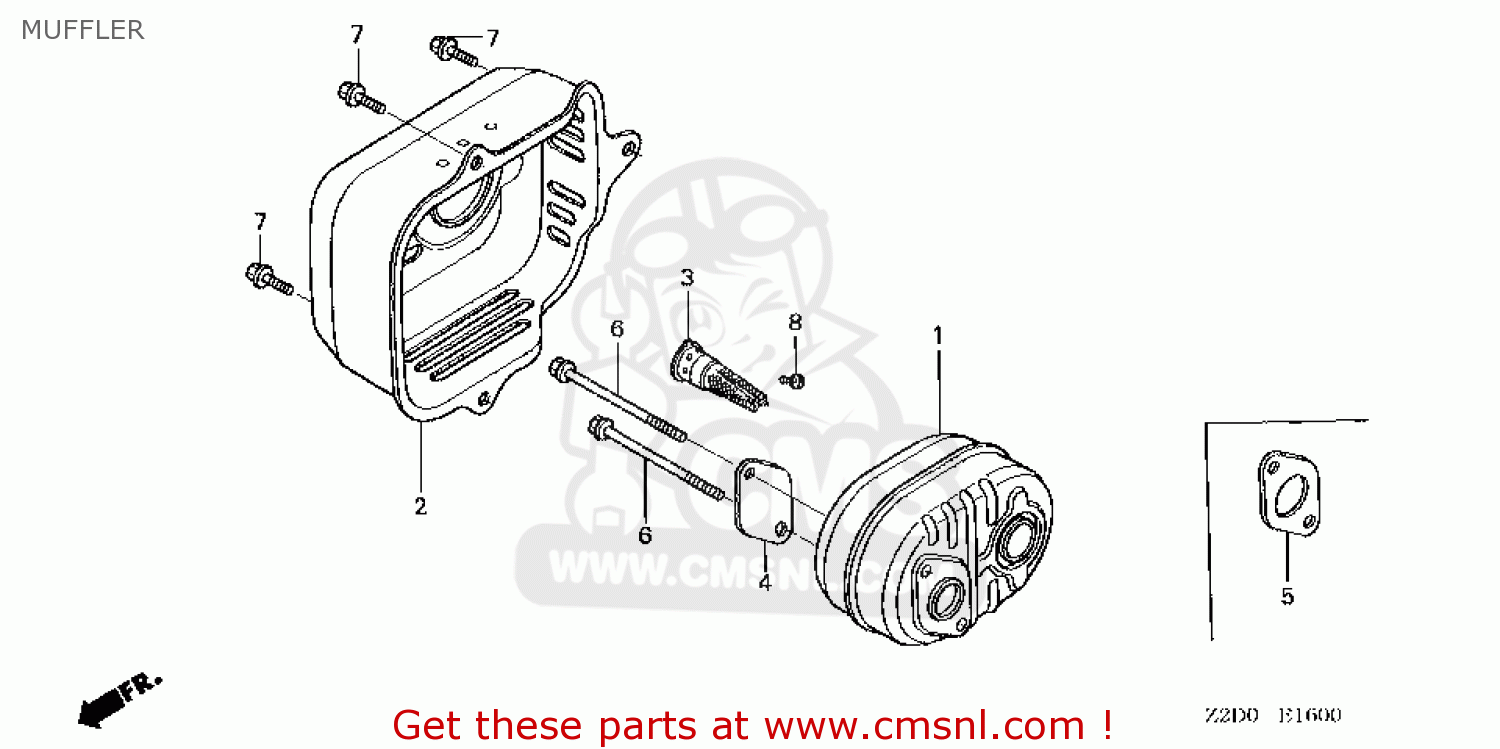

A sample from the products for the Muffler include: Bolt Flange 6x12, Muffler Comp, Protector,muffler, Screw,tapping,4x6. eight components are listed in the schematic for this Gsv190a\a1af\14z2d403 Muffler . The sub assemblies and components that make up this Muffler include this Arrester Comp,spa, the most expensive part.


view large image
Ref
product
price
Quantity

001
MUFFLER COMP
product number: 18310Z0Y000
supersession: 18310Z0Y010

€ 31.00

002
PROTECTOR,MUFFLER
product number: 18321Z0L000
supersession: 18321Z0L010

€ 18.00

003
ARRESTER COMP,SPA
product number: 18350ZL8000

€ 38.00

004
PLATE,ARRESTER NU
PLATE,ARRESTER NU
product number: 18356ZL8000

show photo

€ 4.50

005
GASKET,MUFFLER (NAS)
GASKET,MUFFLER (NAS)
product number: 18381ZL8305

show photo

€ 6.50

006
BOLT,FLANGE,6X79
BOLT,FLANGE,6X79
product number: 90004ZL8000

show photo

€ 2.50

007
BOLT FLANGE 6X12
BOLT FLANGE 6X12
product number: 90013883000

show photo

€ 3.50

008
SCREW,TAPPING,4X6
SCREW,TAPPING,4X6
product number: 90055ZE1000

show photo

€ 2.00
