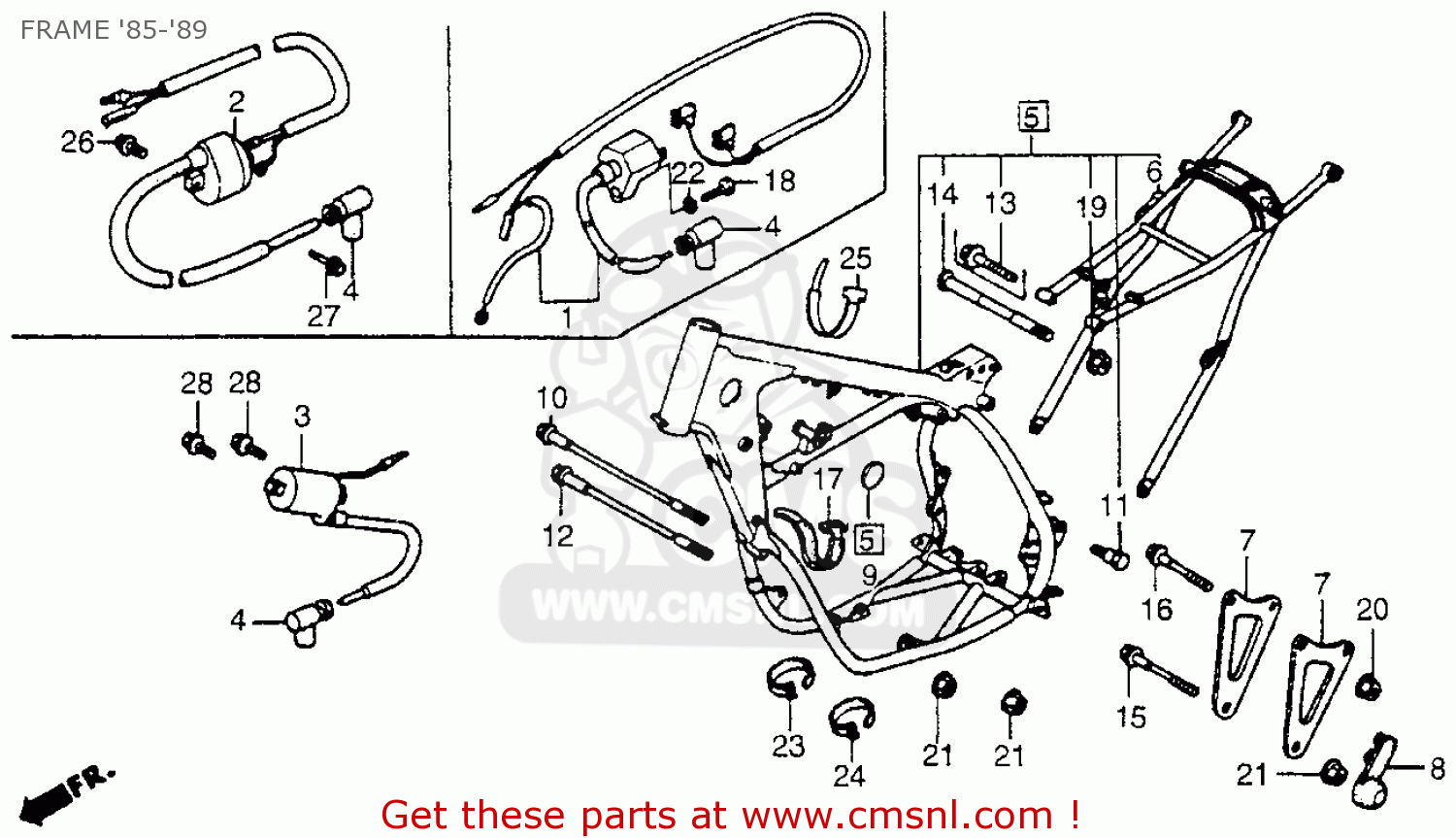

Honda CR250R ELSINORE 1985 (F) USA frame '85-'89

On this parts fiche the Nut,flange,10mm is the most specified component. The sub assemblies and components that make up this Frame '85-'89 include this Body Comp.*r-119*, the most expensive part. The Honda FRAME '85-'89 has twenty-eight products enlisted in the schematic.


view large image
Ref
product
price
Quantity

1
COIL COMP,IGN
COIL COMP,IGN
product number: 30500KA3830

show photo

€ 87.50

4
CAP ASSY.,NOISE
CAP ASSY.,NOISE
product number: 30700KA5771
rating:
show photo

€ 25.00

5
BODY COMP.*R-119*
product number: 50100KA4831ZA

€ 2855.00

6
RR.FRAME B*R-119*
product number: 50140KA3830ZA

€ 532.50

7
BRKT.,HEAD HANGER
BRKT.,HEAD HANGER
product number: 50401KA4830
rating:
show photo

€ 32.00

9
SEAL,HOLE 24MM
product number: 87150KA3730

€ 2.00

10
BOLT,FLG 10X103
product number: 90018KA4830

€ 4.00

10
BOLT,FLANGE,10X10
product number: 90152KW3000

€ 4.00

11
BOLT,JOINT 8X20.6
BOLT,JOINT 8X20.6
product number: 90108KA3830

show photo

€ 3.00

12
BOLT,FLG 10X125
BOLT,FLG 10X125
product number: 90115KA4830
supersession: 90115ML3910
rating:
show photo

€ 11.00

12
BOLT,FLANGE,10X12
BOLT,FLANGE,10X12
product number: 90115ML3910

show photo

€ 11.00

13
BOLT,JOINT 8X37
product number: 90118KA3830
supersession: 90118KA3831
Hurry: only 3 left!

€ 4.00

13
BOLT,FLANGE,8X37
BOLT,FLANGE,8X37
product number: 90118KA3831
Hurry: only 3 left!
show photo

€ 4.00

15
BOLT,FLANGE,10X53
BOLT,FLANGE,10X53
product number: 90131KA4730
supersession: 90131ML3910
show photo

€ 3.00

15
BOLT,FLANGE,10X53
BOLT,FLANGE,10X53
product number: 90131ML3910
supersession: 90112GK4000
show photo

€ 3.00

16
BOLT,FLANGE,8X51
product number: 90135KA4830
supersession: 90135KZ3700

€ 4.50

16
BOLT,FLANGE,8X51
BOLT,FLANGE,8X51
product number: 90135KZ3700

show photo

€ 4.50

18
BOLT, HEX., 5X20
BOLT, HEX., 5X20
product number: 92000050200A
supersession: 92101050200A
show photo

€ 1.00

18
BOLT,HEX.,5X20
BOLT,HEX.,5X20
product number: 92101050200A

show photo

€ 1.00

18
BOLT,RECESSED,5X2
product number: 92301050200A

€ 1.00

20
NUT,FLANGE,8MM
NUT,FLANGE,8MM
product number: 9405008080

show photo

€ 1.00

21
NUT,FLANGE,10MM
NUT,FLANGE,10MM
product number: 9405010080

show photo

€ 1.00

22
WASHER,PLAIN,5MM
WASHER,PLAIN,5MM
product number: 9410105000

show photo

€ 1.00

23
BAND,BI WIRE
BAND,BI WIRE
product number: 32161404000

show photo

€ 3.00

23
BAND A1,WIRE
BAND A1,WIRE
product number: 9501461100
supersession: 32161404000
show photo

€ 3.00

24
BAND,BI WIRE
BAND,BI WIRE
product number: 32161404000

show photo

€ 3.00

24
BAND A1,WIRE
BAND A1,WIRE
product number: 9501461100
supersession: 32161404000
show photo

€ 3.00

25
BAND A3,WIRE
BAND A3,WIRE
product number: 9501461300

show photo

€ 2.00
