Honda CL350 SCRAMBLER 1972 K4 USA lower crankcase

info

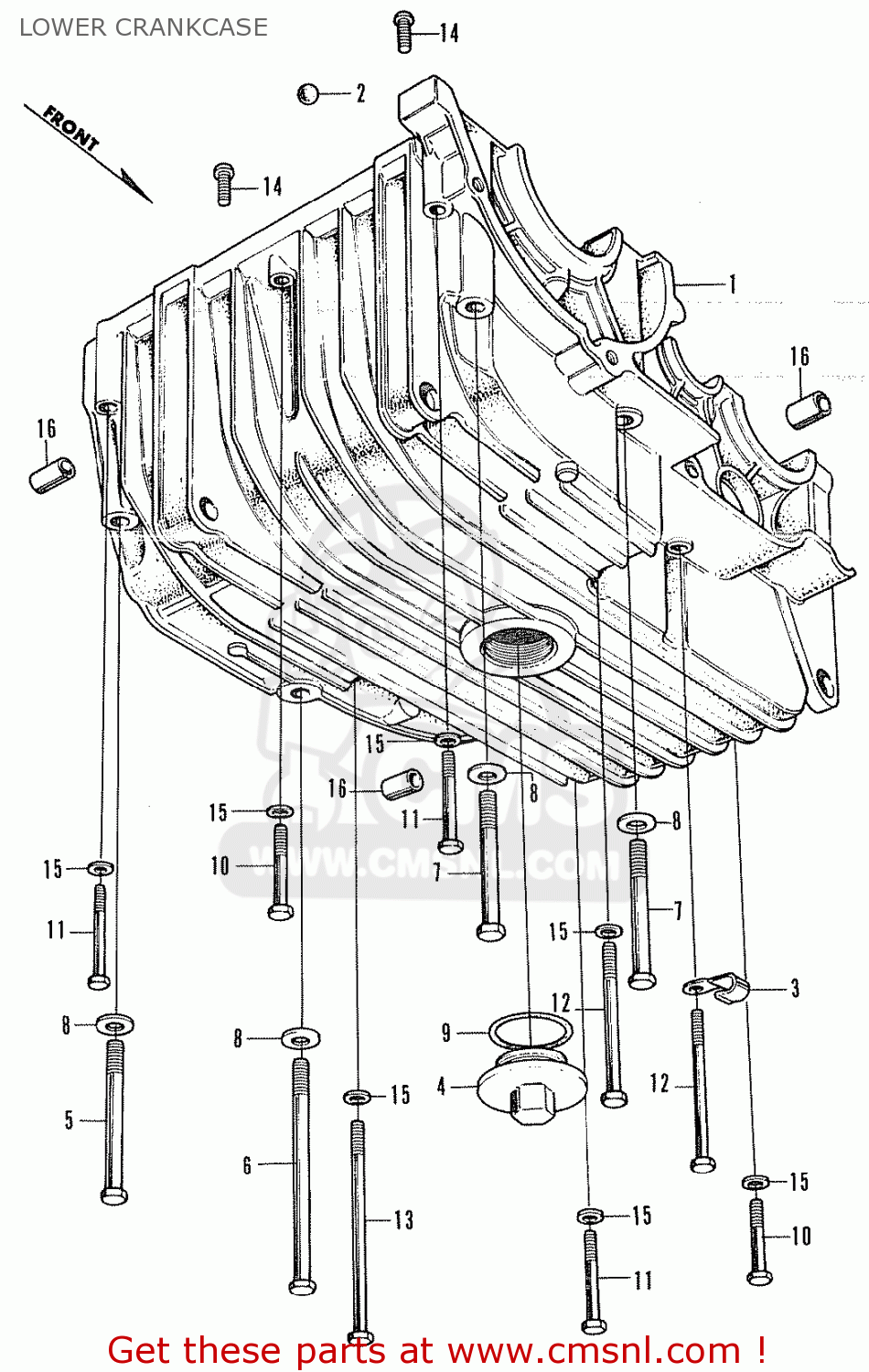

seventeen components are listed in the schematic for this Cl350 Scrambler 1972 K4 Usa Lower Crankcase . The lowest price component in this Lower Crankcase parts-list fiche is the Washer,plain, 6mm. On this parts fiche the Washer, 14m/m is the most specified component.

view large image

Ref


product

price

Quantity

1

CRANKCASE (LOWER)

CRANKCASE (LOWER)

product number: 11200286100

show photo

€ 415.50

1

CRANKCASE (LOWER)

CRANKCASE (LOWER)

product number: OC-0001.5618
imperfect alternative
show photo

€ 259.50

2

RUBBER,SEALING

product number: 11796286010

show photo

€ 6.00

3

CLAMPER,CABLE

product number: 32911286000

show photo

€ 4.00

4

BOLT,DRAIN.COCK

BOLT,DRAIN.COCK

product number: 90013312000
rating:
show photo

€ 24.00

5

BOLT,HEX 8X115

product number: 90082286000

show photo

€ 9.50

6

BOLT,HEX,8X150

product number: 90083286000

show photo

€ 17.00

7

BOLT,HEX 8X97

product number: 90086286000

show photo

€ 12.00

8

WASHER, 14M/M

product number: 90485035000
rating:
show photo

€ 3.50

9

ORING,33.5X3

product number: 91302200000
supersession: 91302943003
rating:
show photo

€ 4.50

10

BOLT,HEX 6X45

product number: 9200006045
supersession: 92000060450A
show photo

€ 1.00

10

BOLT HEX 6X45

product number: 92000060450B
supersession: 92200060450B
alternative part

€ 1.50

10

BOLT,HEX,6X45

product number: 92000060450J
supersession: 92101060450A
alternative part
show photo

€ 1.00

10

BOLT,HEX,6X45

product number: 92101060450A
alternative part
show photo

€ 1.00

10

BOLT,HEX,6X45

product number: 92201060450A
alternative part
show photo

€ 1.50

11

BOLT,HEX 6X56

product number: 9200006056
supersession: 92000060560A
upto serial number: 4161166
show photo

€ 1.00

11

BOLT HEX 6X48

product number: 9200006048
supersession: 9200006050
upto serial number: 4161166
alternative part
show photo

€ 1.00

11

BOLT, HEX., 6X50

BOLT, HEX., 6X50

product number: 9200006050
supersession: 92000060500A
upto serial number: 4161166
alternative part
show photo

€ 1.00

11

BOLT,HEX.,6X50

product number: 92000060500A
supersession: 92101060550A
upto serial number: 4161166
alternative part
show photo

€ 1.00

11

STUD, BOLT, 6X52

STUD, BOLT, 6X52

product number: 9200006052
supersession: 92000060500A
upto serial number: 4161166
alternative part
show photo

€ 1.00

11

BOLT,HEX.,6X53

product number: 9200006053
supersession: 92101060550A
upto serial number: 4161166
alternative part
show photo

€ 1.00

11

BOLT,FLANGE 6X55

BOLT,FLANGE 6X55

product number: 9570006055
supersession: 957000605500
from serial number: 4161167
show photo

€ 1.50

12

BOLT HEX 6X100

product number: 9200006100

show photo

€ 1.50

13

BOLT,HEX 6X140

product number: 9200006140
supersession: 9210006140
show photo

€ 2.50

14

SCREW,PAN,6X16

product number: 9350006016
supersession: 93500060160A
show photo

€ 1.00

15

WASHER,PLAIN, 6MM

WASHER,PLAIN, 6MM

product number: 9410106000
from serial number: 4161167
show photo

€ 0.50

15

BOLT, TENSIONER (SET) (NON O.E. ALTERNATIVE)

BOLT, TENSIONER (SET) (NON O.E. ALTERNATIVE)

product number: 09001286000P
rating:
from serial number: 4161167
alternative part
show photo

€ 34.50

16

PIN,KNOCK 10X14

PIN,KNOCK 10X14

product number: 9430110140
rating:
show photo

€ 2.00
