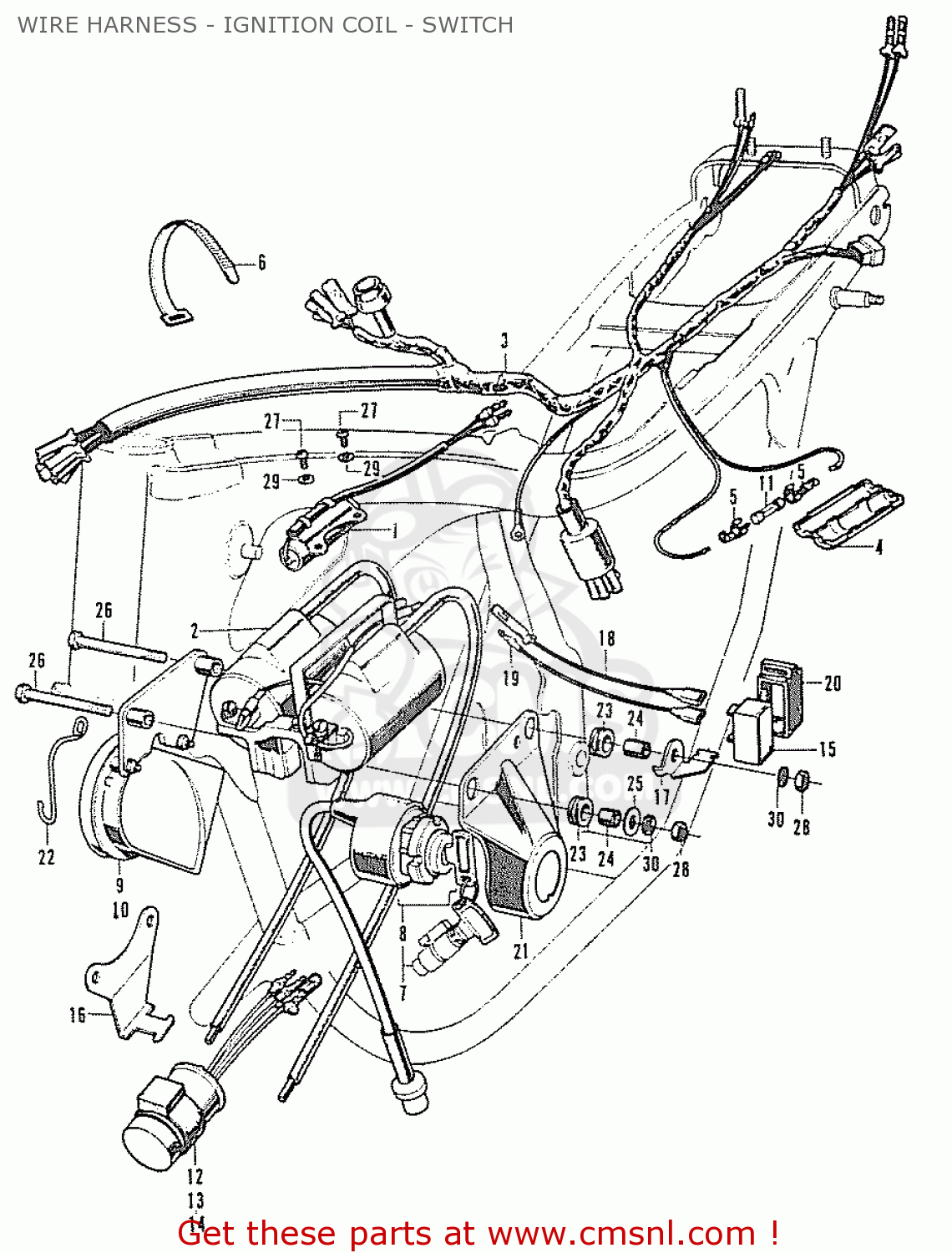

Honda CL250 K2 GENERAL EXPORT wire harness - ignition coil - switch

The Cl250 K2 General Export Wire Harness - Ignition Coil - Switch consists of twenty-four pieces with the Coil Assy., Ignition being the most expensive. A sample from the products for the Wire Harness - Ignition Coil - Switch include: Collar No Bracket, Condenser, Rubber,nu Bracket, Washer,18mm. The Honda WIRE HARNESS - IGNITION COIL - SWITCH has twenty-four products enlisted in the schematic.


view large image
Ref
product
price
Quantity

1
CONDENSER
CONDENSER
product number: 30280292670
supersession: 30280292672
rating:
Hurry: only 1 left!
show photo

€ 65.50

1
CONDENSER M (NON O.E. ALTERNATIVE)
CONDENSER M (NON O.E. ALTERNATIVE)
product number: 30280292670P
alternative part
show photo

€ 42.00

1
CONDENSER ASSY
CONDENSER ASSY
product number: 30280292672
rating:
Hurry: only 1 left!
show photo

€ 65.50

1
CONDENSER M (NON O.E. ALTERNATIVE)
CONDENSER M (NON O.E. ALTERNATIVE)
product number: 30280292670P
alternative part
show photo

€ 42.00

2
COIL ASSY., IGNITION
COIL ASSY., IGNITION
product number: 30500310670
rating:
show photo

€ 468.00

3
HARNESS,WIRE
product number: 32100317670

€ 117.00

4
CASE,FUSE
CASE,FUSE
product number: 32111230000

show photo

€ 4.50

5
CONNECTOR,FUSE
CONNECTOR,FUSE
product number: 32112230000

show photo

€ 5.50

6
BAND B3,WIRE HARN
product number: 32162286000
supersession: 9501462300

€ 3.50

7
KEY-SET
product number: 35010303003
supersession: 35010336611

€ 111.50

8
SWITCH,COMB
SWITCH,COMB
product number: 35100303003
supersession: 35100303007
rating:
show photo

€ 135.50

11
FUSE,15A
FUSE,15A
product number: 38201250000
supersession: 9820011500
rating:
show photo

€ 1.00

12
RELAY WINKER
RELAY WINKER
product number: 38300292038

show photo

€ 103.00

14
RELAY WINKER
RELAY WINKER
product number: 38300292611
area code G: Germany
show photo

€ 80.00

14
RELAY WINKER
RELAY WINKER
product number: 38300292611
area code S: Sweden
show photo

€ 80.00

16
STAY WINKER RELAY
STAY WINKER RELAY
product number: 38301292010

show photo

€ 3.50

21
BRACKET SWITCH
BRACKET SWITCH
product number: 50375292020B

show photo

€ 14.50

22
CLAMP TACHOMETER
CLAMP TACHOMETER
product number: 50462286000

show photo

€ 7.50

23
RUBBER,NU BRACKET
RUBBER,NU BRACKET
product number: 84705292000
rating:
show photo

€ 2.00

24
COLLAR NO BRACKET
COLLAR NO BRACKET
product number: 84706286000
rating:
show photo

€ 3.00

25
WASHER,18MM
WASHER,18MM
product number: 90581701000

show photo

€ 2.50

26
BOLT,HEX,6X78
BOLT,HEX,6X78
product number: 9200006078

show photo

€ 1.50

27
SCREW,CROSS 5X8
SCREW,CROSS 5X8
product number: 93500050080A

show photo

€ 0.50

28
NUT,HEX 6MM
NUT,HEX 6MM
product number: 9400106000
supersession: 94001060000S
show photo

€ 1.00

29
WASHER,SPG.,5MM
WASHER,SPG.,5MM
product number: 9411105000

show photo

€ 1.00

30
WASHER,SPRING,6MM
WASHER,SPRING,6MM
product number: 9411106000

show photo

€ 1.00
