Honda CH125 SPACY 1986 (G) ENGLAND side rail/floor panel (ch125e/g)

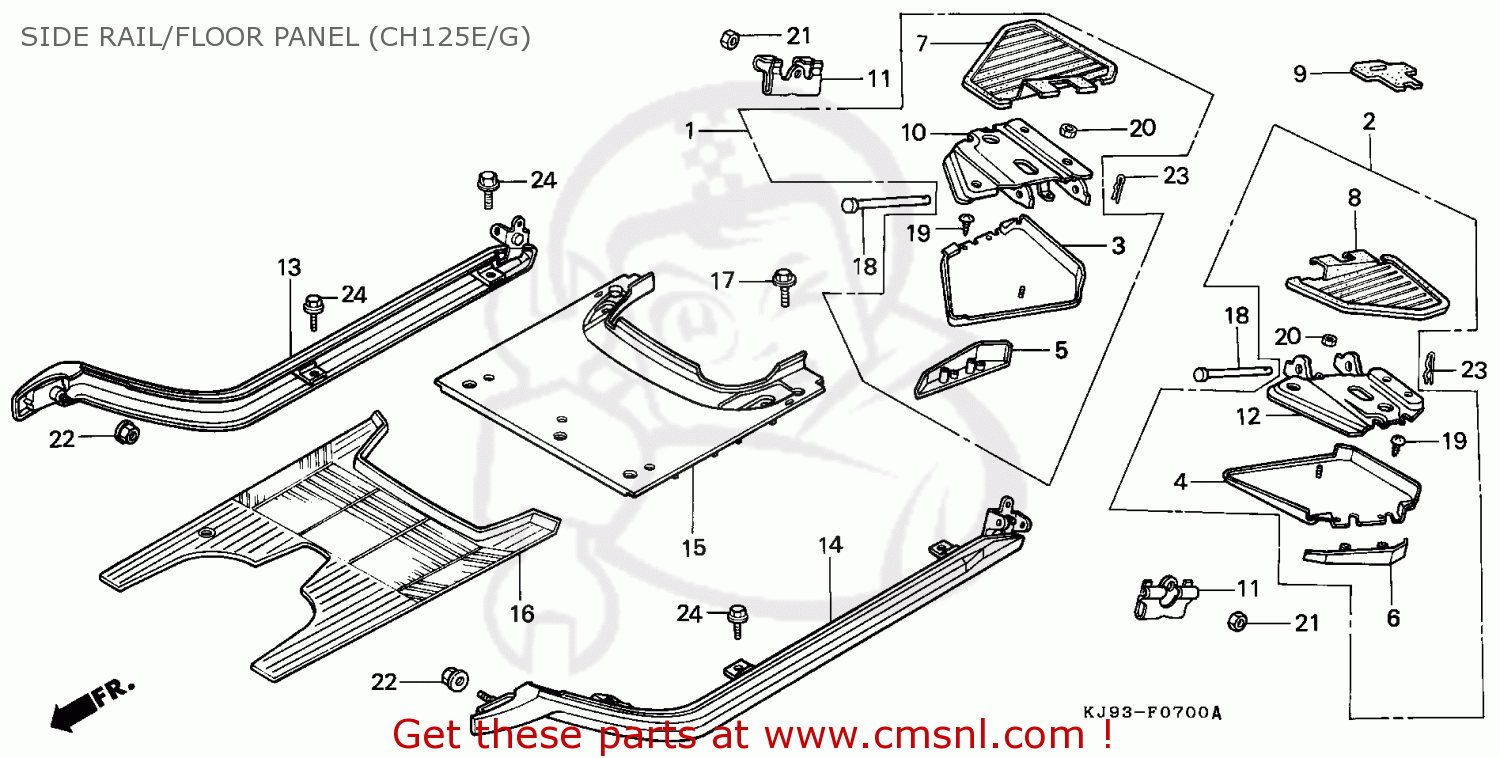

This Side Rail/floor Panel (ch125e/g) diagram displays the required parts for the Ch125 Spacy 1986 (g) England Side Rail/floor Panel (ch125e/g). The most expensive part in this assembly is the Rail,r.s*nh-137m*.


view large image
Ref
product
price
Quantity

1
STEP ASS*NH-137M*
product number: 50612KJ9000ZM

€ 55.50

1
STEP,R*NH-114M-U*
STEP,R*NH-114M-U*
product number: 50612KJ9000ZE
Hurry: only 1 left!
alternative part
show photo

€ 55.50

1
STEP, R. *PB112MU*
STEP, R. *PB112MU*
product number: 50612KJ9000ZJ
Hurry: only 2 left!
alternative part
show photo

€ 49.50

2
STEP ASSY., L. PILLION *NH137M*
product number: 50613KN7670ZJ

€ 0.00

3
COVER, R. PILLION STEP *NH137M*
product number: 50619KJ9300ZM

€ 0.00

4
COVER, L. PILLION STEP *NH137M*
product number: 50620KJ9300ZM

€ 0.00

5
COV,R P STEP
product number: 50700KJ9300

€ 6.50

6
COV,L P STEP
COV,L P STEP
product number: 50702KJ9300

show photo

€ 9.50

7
RUBBER,R.STEP
RUBBER,R.STEP
product number: 50710KJ9300
Hurry: only 1 left!
show photo

€ 17.50

8
RUBBER,L.STEP
product number: 50712KN7670

€ 17.50

9
GUARD,L.PILLION S
product number: 50713KN7670

€ 3.00

10
BASE,R.PILLION
BASE,R.PILLION
product number: 50715KJ9300
Hurry: only 2 left!
show photo

€ 22.00

11
SPG,PILLION STEP
SPG,PILLION STEP
product number: 50716KJ9000

show photo

€ 2.50

12
BASE,L.PILLION
product number: 50718KJ9300

€ 43.00

13
RAIL,R.S*NH-137M*
product number: 64306KJ9000ZM

€ 96.50

14
RAIL,L.S*NH-137M*
product number: 64307KN7670ZJ

€ 96.50

15
PANEL,FLOOR
product number: 64310KJ9000

€ 73.50

16
MAT,FLOOR
product number: 64315KJ9000

€ 88.50

17
BOLT,FLANG,6MM
BOLT,FLANG,6MM
product number: 90111147000

show photo

€ 2.50

18
PIN,PILLION STEP
PIN,PILLION STEP
product number: 90131KJ9000

show photo

€ 3.00

19
SCREW,TAPPING,4X10
SCREW,TAPPING,4X10
product number: 9390324220

show photo

€ 0.50

20
NUT HEX.,4MM
NUT HEX.,4MM
product number: 94002040000S

show photo

€ 1.00

21
NUT,THIN  6MM
NUT,THIN 6MM
product number: 94002060000S

show photo

€ 1.00

22
NUT,FLANGE,6MM
NUT,FLANGE,6MM
product number: 9405006000
rating:
show photo

€ 1.00

23
PIN,LOCK 6MM
PIN,LOCK 6MM
product number: 9425106000

show photo

€ 1.00

24
BOLT, FLANGE,6X12
BOLT, FLANGE,6X12
product number: 957000601200
supersession: 957010601200
show photo

€ 1.00
