Honda CBR600F HURRICANE 1989 (K) NORWAY / KPH rear brake caliper

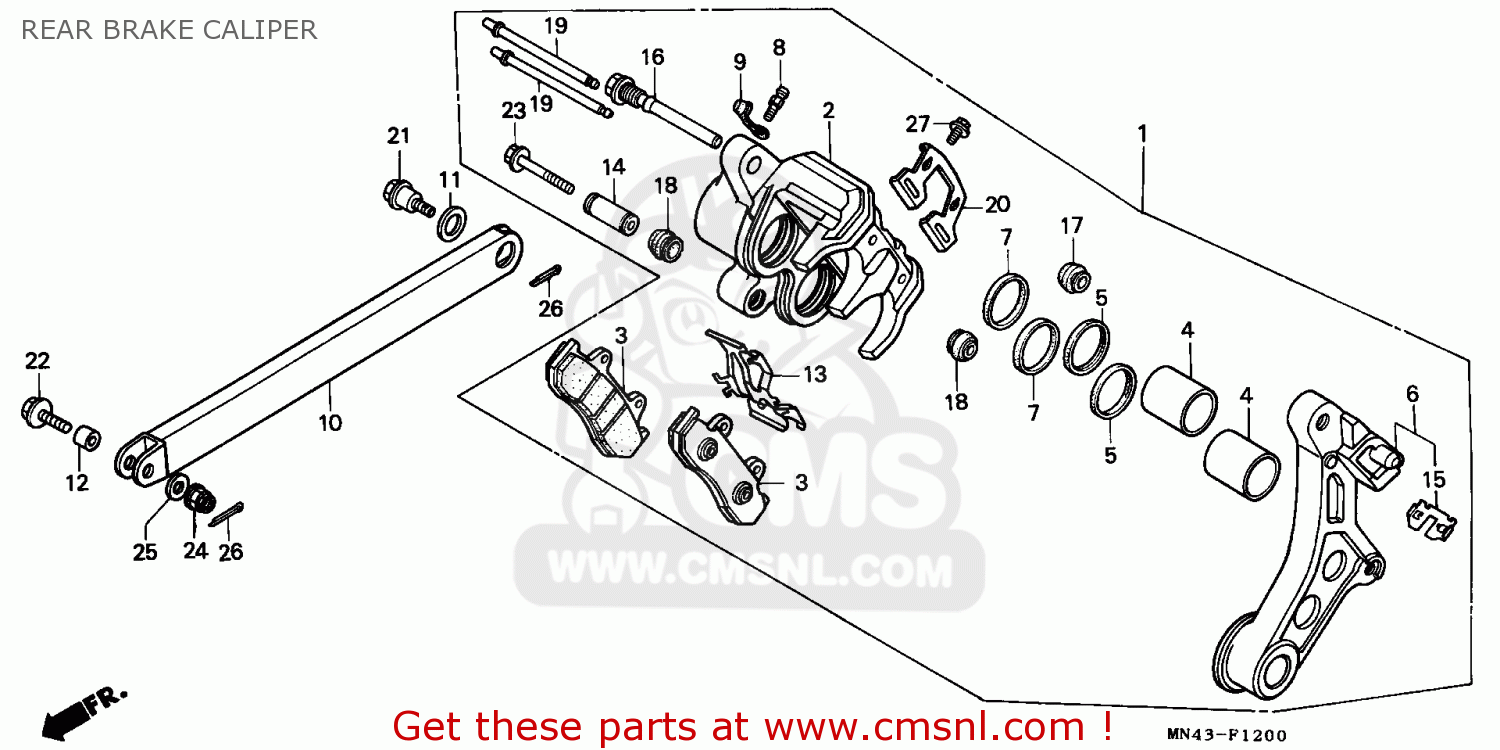

The Pad Comp.,rr.(nis (mca) is the most widely applied product in the CBR600F HURRICANE 1989 (K) NORWAY / KPH REAR BRAKE CALIPER ( two times ). This Caliper Assy,rr. is the most expensive of the items that make up this Rear Brake Caliper assembly. This part-list fiche shows all the components that make up the Cbr600f Hurricane 1989 (k) Norway / Kph Rear Brake Caliper .


view large image
Ref
product
price
Quantity

1
CALIPER ASSY,RR.
product number: 43100MN4832
supersession: 43100MN4833
Hurry: only 1 left!

€ 471.50

2
CALIPER COMP.,RR.
CALIPER COMP.,RR.
product number: 43101KT8006

show photo

€ 161.50

3
PAD COMP.,RR.(NIS (MCA)
PAD COMP.,RR.(NIS (MCA)
product number: 43105ML7027

show photo

€ 37.50

4
PISTON
PISTON
product number: 43107MA3006
rating:
show photo

€ 32.50

5
DUST SEAL
DUST SEAL
product number: 43109MA3006
rating:
show photo

€ 6.00

6
BRACKET COMP.,RR.
product number: 43110MN4831
Hurry: only 1 left!

€ 127.50

7
SEAL,PISTON
SEAL,PISTON
product number: 43209MA3006

show photo

€ 6.00

8
SCREW, BLEEDER
SCREW, BLEEDER
product number: 43352568003
rating:
show photo

€ 8.50

9
CAP,BLEEDER
CAP,BLEEDER
product number: 43353461771

show photo

€ 5.00

10
LINK COMP.,TORQUE
LINK COMP.,TORQUE
product number: 43431MN4000
Hurry: only 2 left!
show photo

€ 49.50

11
WASHER, TORQUE
WASHER, TORQUE
product number: 43434MA3640

show photo

€ 4.00

12
COLLAR,LINK
COLLAR,LINK
product number: 43435392000

show photo

€ 7.50

13
SPRING,PAD
SPRING,PAD
product number: 45108MA3006
rating:
show photo

€ 8.00

14
SLEEVE
SLEEVE
product number: 45111MA3006
rating:
show photo

€ 11.00

15
RETAINER,REAR
RETAINER,REAR
product number: 43112445631
rating:
show photo

€ 7.00

16
PIN,BOLT
PIN,BOLT
product number: 45131MA3006
rating:
show photo

€ 12.00

17
BOOT B
BOOT B
product number: 45133MA3006
rating:
show photo

€ 5.00

18
BOOT,PIN
BOOT,PIN
product number: 45133166016
rating:
show photo

€ 2.50

19
PIN,HANGER
PIN,HANGER
product number: 45215MA3006

show photo

€ 8.00

20
PLATE
PLATE
product number: 45217MA3006
rating:
show photo

€ 4.00

21
BOLT,TORQUE LINK
BOLT,TORQUE LINK
product number: 90124ML7000

show photo

€ 10.50

22
BOLT,STOPPER ARM
BOLT,STOPPER ARM
product number: 90124392000

show photo

€ 4.50

23
BOLT,FLANGE 8X49
BOLT,FLANGE 8X49
product number: 90180MA3006
supersession: 90180MN8006
show photo

€ 3.50

24
NUT,CASTLE,8MM
NUT,CASTLE,8MM
product number: 94011080000S

show photo

€ 1.50

25
WASHER,PLAIN,8MM
WASHER,PLAIN,8MM
product number: 9410108000

show photo

€ 1.00

26
PIN,SPLIT, 2.0
PIN,SPLIT, 2.0
product number: 9420120180

show photo

€ 1.00

27
BOLT,FLANGE,SH 6X10
BOLT,FLANGE,SH 6X10
product number: 960010601007

show photo

€ 1.00
