Honda CBR400RR 1989 (K) JAPANESE DOMESTIC / NC23-109 clutch

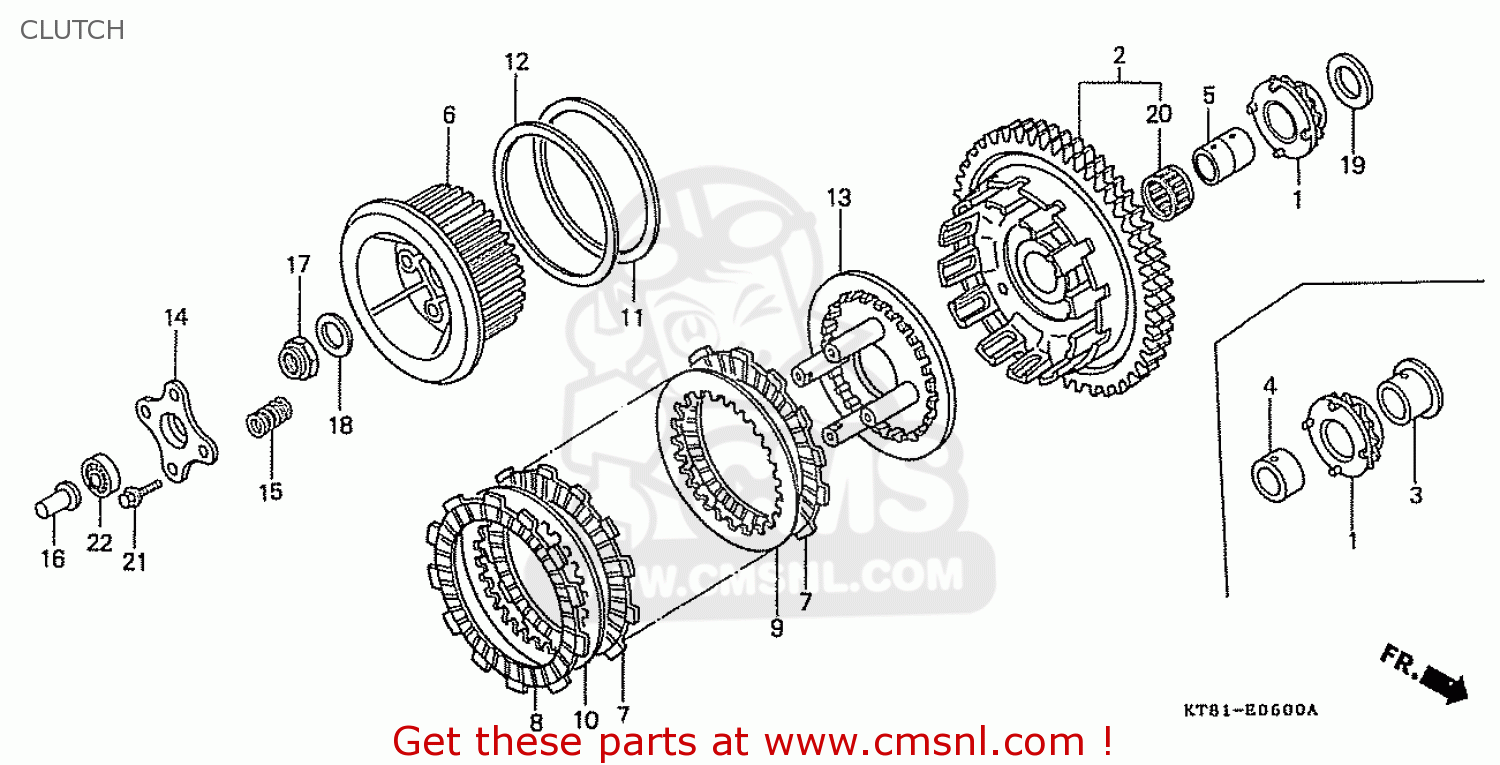

This schematic depicts all components used in the Cbr400rr 1989 (k) Japanese Domestic / Nc23-109 Clutch partslist. Some items from this specific schematic: Wash.d,thrus,22mm, Plate,clutch Pres, Bolt,flange,10x35, Sprocket,oil Pump. The most expensive part in this assembly is the Outer Comp.,clutc.


view large image
Ref
product
price
Quantity

1
SPROCKET,OIL PUMP
product number: 15131KT8000
supersession: 15131MY9790
Hurry: only 1 left!

€ 38.50

2
OUTER COMP.,CLUTC
OUTER COMP.,CLUTC
product number: 22100KY2710
Hurry: only 1 left!
show photo

€ 361.50

5
GUIDE,CLUTCH OUTE
GUIDE,CLUTCH OUTE
product number: 22118KY2000
Hurry: only 1 left!
show photo

€ 19.50

6
CENTER,COMP.,CLUT
CENTER,COMP.,CLUT
product number: 22120MN4010

show photo

€ 103.00

7
DISK,CLUTCH FRICT (NAS)
DISK,CLUTCH FRICT (NAS)
product number: 22201KY2000

show photo

€ 16.50

8
DISK,CLCH.FRICTIO (NAS)
DISK,CLCH.FRICTIO (NAS)
product number: 22201MA7000
rating:
show photo

€ 12.00

9
PLATE,CLUTCH
product number: 22321MN4000
supersession: 22321374000

€ 12.00

10
PLATE B,CLUTCH
PLATE B,CLUTCH
product number: 22322MN4000

show photo

€ 10.00

11
SPRING,CLUTCH PLA
SPRING,CLUTCH PLA
product number: 22325MN4000

show photo

€ 9.50

12
SEAT,JUDDER SPRIN
SEAT,JUDDER SPRIN
product number: 22326MN4000

show photo

€ 5.00

13
PLATE,CLUTCH PRES
PLATE,CLUTCH PRES
product number: 22350MN4000

show photo

€ 46.50

14
PLATE,CLUTCH LIFT
product number: 22361MN4010
Hurry: only 3 left!

€ 16.00

15
SPRING,CLUTCH
SPRING,CLUTCH
product number: 22401KY2000

show photo

€ 3.50

16
ROD,CLUTH LIFTER
ROD,CLUTH LIFTER
product number: 22847KY2000
Hurry: only 1 left!
show photo

€ 5.00

17
NUT,LOCK,20MM
NUT,LOCK,20MM
product number: 90241KM9000
rating:
show photo

€ 7.00

18
WASHER,LOCK
WASHER,LOCK
product number: 90432121000

show photo

€ 2.50

19
WASH.D,THRUS,22MM
WASH.D,THRUS,22MM
product number: 90459425000

show photo

€ 4.50

20
BEARING NEEDLE
BEARING NEEDLE
product number: 91005KT8003

show photo

€ 21.00

21
BOLT,FLANGE,10X35
BOLT,FLANGE,10X35
product number: 90003MN4000

show photo

€ 4.00

22
B/BRG RAD N/COM
B/BRG RAD N/COM
product number: 91001KA4003
rating:
show photo

€ 15.50
