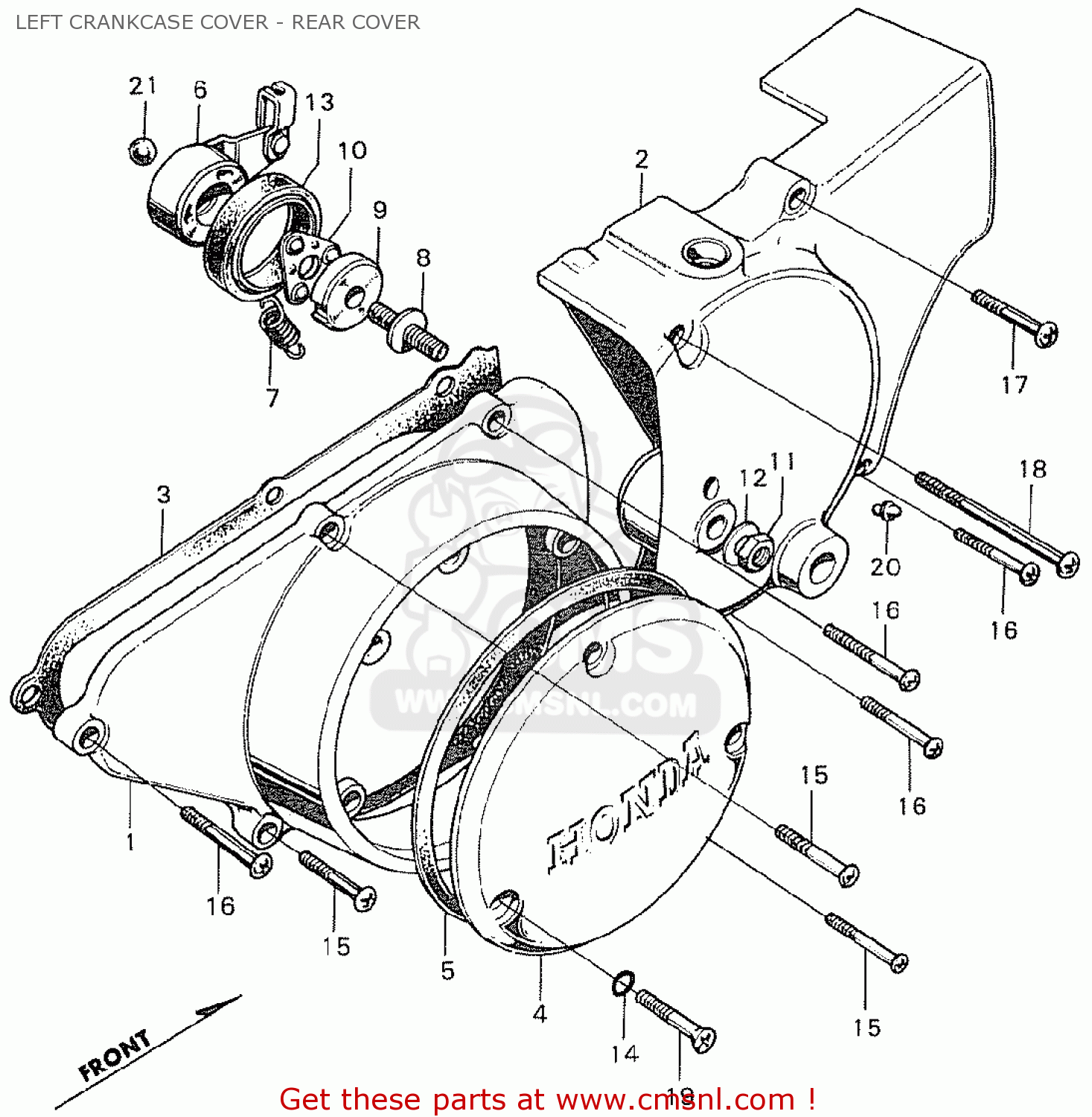

Honda CB350K0 SUPER SPORT FRANCE left crankcase cover - rear cover

info

With four applications this Screw,cross 6x32 is the most specified part. The Left Crankcase Cover - Rear Cover is made up of components including this Cover,crank Case which is the most expensive. The component with the lowest price in the LEFT CRANKCASE COVER - REAR COVER schematic is the Ball,steel.,10.

view large image

Ref


product

price

Quantity

1

COVER, L. CRANKCASE

COVER, L. CRANKCASE

product number: 11341286020

show photo

€ 87.00

2

COVER,CRANK CASE

COVER,CRANK CASE

product number: 11351286060

show photo

€ 515.00

2

COVER,CRANK CASE

COVER,CRANK CASE

product number: OC-0001.3215
imperfect alternative
show photo

€ 145.50

2

COVER,CRANK CASE

COVER,CRANK CASE

product number: OC-0001.3217
imperfect alternative
show photo

€ 145.50

3

GASKET,L-CK/CASE (MCA)

product number: 11395286020
upto serial number: 1116305

€ 21.00

3

GASKET KIT (A+B) TOP + BOTTOM (NAS) (NON O.E. ALTERNATIVE)

GASKET KIT (A+B) TOP + BOTTOM (NAS) (NON O.E. ALTERNATIVE)

product number: 06112287010P
rating:
upto serial number: 1116305
alternative part
show photo

€ 47.50

3

GASKET,L-CK/CASE (MCA)

GASKET,L-CK/CASE (MCA)

product number: 11395286030
rating:
from serial number: 1116306
show photo

€ 21.00

3

GASKET KIT (A+B) TOP + BOTTOM (NAS) (NON O.E. ALTERNATIVE)

GASKET KIT (A+B) TOP + BOTTOM (NAS) (NON O.E. ALTERNATIVE)

product number: 06112287010P
rating:
from serial number: 1116306
alternative part
show photo

€ 47.50

4

COVER,DAINAMO

product number: 11431286010
Hurry: only 1 left!
show photo

€ 89.00

5

GASKET,COVER (MCA)

GASKET,COVER (MCA)

product number: 11691286000
supersession: 11691286306
rating:
show photo

€ 8.00

5

GASKET KIT (A+B) TOP + BOTTOM (NAS) (NON O.E. ALTERNATIVE)

GASKET KIT (A+B) TOP + BOTTOM (NAS) (NON O.E. ALTERNATIVE)

product number: 06112287010P
rating:
alternative part
show photo

€ 47.50

6

CLUTCH LEVER

product number: 22810286000

show photo

€ 33.00

6

CLUTCH LEVER (NON O.E. ALTERNATIVE)

CLUTCH LEVER (NON O.E. ALTERNATIVE)

product number: 22810286000P
rating:
alternative part
show photo

€ 49.50

7

SPRING CLUTCH

product number: 22815286010
rating:
Hurry: only 1 left!
show photo

€ 9.50

8

SCREW,ADJUSTING

SCREW,ADJUSTING

product number: 22837286010

show photo

€ 4.50

9

CLUTCH,ADJR CAM

CLUTCH,ADJR CAM

product number: 22841286010

show photo

€ 22.50

9

CLUTCH, ADJUSTER CAM (NON O.E. ALTERNATIVE)

CLUTCH, ADJUSTER CAM (NON O.E. ALTERNATIVE)

product number: 22841286010P
alternative part
show photo

€ 12.50

10

RETAINER,BALL

product number: 22860286000

show photo

€ 11.00

11

NUT,ROCKER ARM

product number: 90011286000

show photo

€ 4.00

12

WASHER,PLANE 8M/M

WASHER,PLANE 8M/M

product number: 90445286000
supersession: 90451KAF000
show photo

€ 3.00

13

DUST SEAL

product number: 91210286003
rating:
show photo

€ 9.50

14

O-RING,5X2.4

product number: 91301283000
supersession: 91301283005
show photo

€ 3.50

15

BOLT,HEX 6X25

product number: 9350006025
supersession: 93500060250A
show photo

€ 1.00

15

ENGINE SCREW SET CB250/350 (NON O.E. ALTERNATIVE)

ENGINE SCREW SET CB250/350 (NON O.E. ALTERNATIVE)

product number: 09350286000
alternative part
show photo

€ 19.50

16

SCREW,CROSS 6X32

SCREW,CROSS 6X32

product number: 9350006032
supersession: 93500060320A
rating:
show photo

€ 1.00

17

SCREW,CROSS 6X40

SCREW,CROSS 6X40

product number: 9350006040
supersession: 93500060400A
show photo

€ 1.00

18

SCREW CROSS 6X56

product number: 9350006056
supersession: 93500060550A

€ 1.00

18

ENGINE SCREW SET CB250/350 (NON O.E. ALTERNATIVE)

ENGINE SCREW SET CB250/350 (NON O.E. ALTERNATIVE)

product number: 09350286000
alternative part
show photo

€ 19.50

19

SCREW,CROSS,6X40

product number: 937000604002
supersession: 93700060400B

€ 1.00

19

SCREW,OVAL,6X40

SCREW,OVAL,6X40

product number: 9370006040
supersession: 93700060400A
alternative part
show photo

€ 1.50

19

SCREWOVAL,6X40

product number: 93700060400A
alternative part
show photo

€ 1.50

19

SCREW,CROSS,6X40

SCREW,CROSS,6X40

product number: 93700060400B
alternative part
show photo

€ 1.00

20

NIPPLE,GREASE4.5

NIPPLE,GREASE4.5

product number: 9620130001

show photo

€ 2.50

21

BALL,STEEL.,10

product number: 9621110000

show photo

€ 0.50
