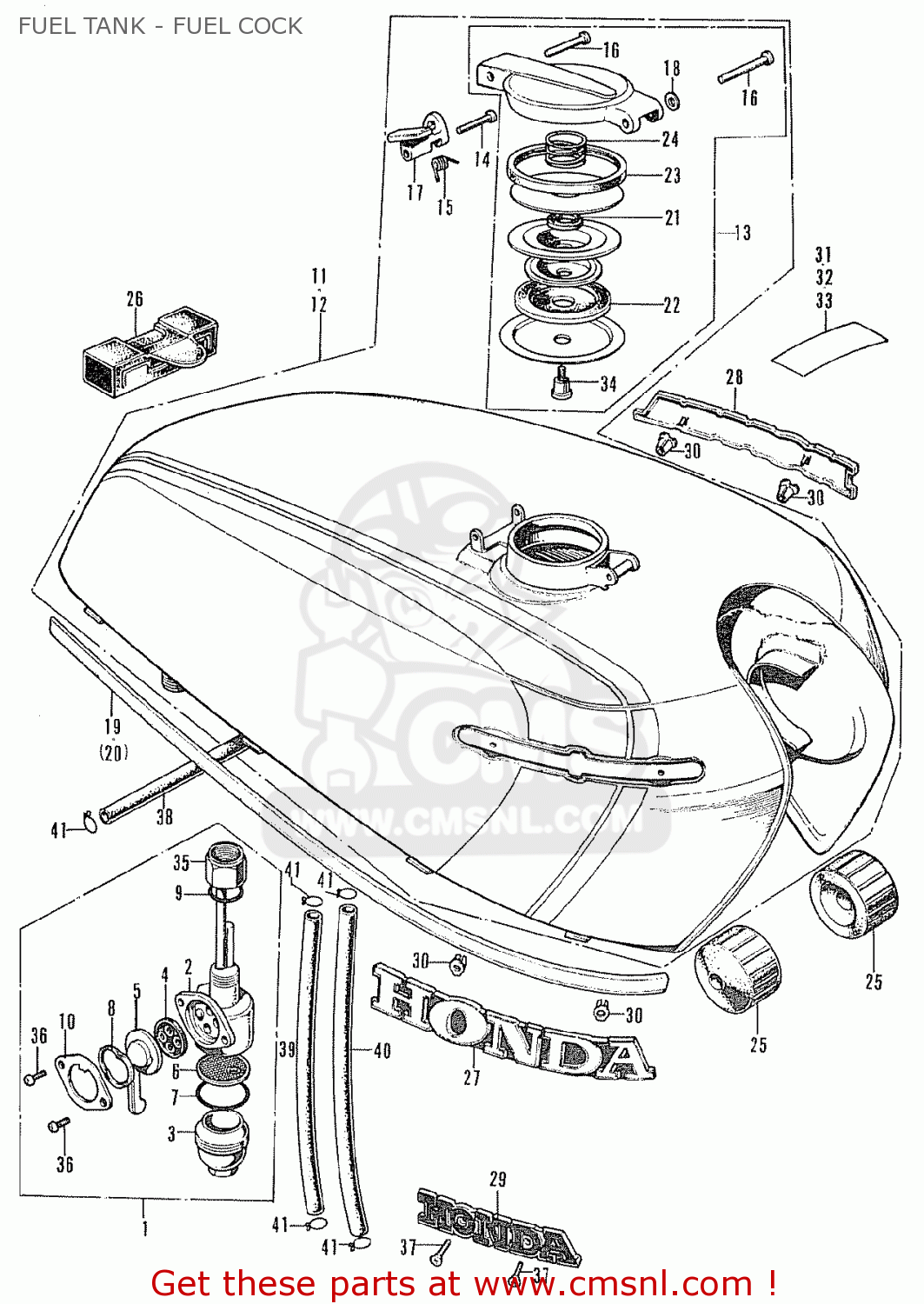

Honda CB250K3 GENERAL EXPORT fuel tank - fuel cock

info

In this schematic the "Clip B10,tube" is used most often. forty-five components are listed in the schematic for this Cb250k3 General Export Fuel Tank - Fuel Cock . The Fuel Tank - Fuel Cock is made up of components including this Tank,fuel which is the most expensive.

view large image

Ref


product

price

Quantity

1

COCK.F,CB250-450

COCK.F,CB250-450

product number: 16950292000
rating:
show photo

€ 104.50

1

COCK.F CB250-250 (NON O.E. ALTERNATIVE)

COCK.F CB250-250 (NON O.E. ALTERNATIVE)

product number: 16950292000P
rating:
alternative part
show photo

€ 29.50

2

BODY SET COCK

product number: 16951292000

show photo

€ 35.00

2

COCK.F,CB250-450

COCK.F,CB250-450

product number: 16950292000
rating:
alternative part
show photo

€ 104.50

2

COCK.F CB250-250 (NON O.E. ALTERNATIVE)

COCK.F CB250-250 (NON O.E. ALTERNATIVE)

product number: 16950292000P
rating:
alternative part
show photo

€ 29.50

3

CUP, STRAINER

product number: 16952283000
supersession: 16952028000
show photo

€ 19.50

4

PACKING A. VALVE

PACKING A. VALVE

product number: 16953283000
rating:
show photo

€ 7.50

5

FUEL COCK LEVER

FUEL COCK LEVER

product number: 16953298000

show photo

€ 5.00

6

SCREEN

product number: 16954283000
supersession: 16957028000
rating:
show photo

€ 7.00

7

PACKING, COCK

product number: 16955283000
supersession: 16075GHBB00
show photo

€ 6.00

8

SPRING,COCK LEVER

SPRING,COCK LEVER

product number: 16955816004

show photo

€ 7.00

9

PACKING,JOINT NUT

PACKING,JOINT NUT

product number: 16956283000
rating:
show photo

€ 4.50

10

SETTING,LEVER

product number: 16961298000
rating:
show photo

€ 5.00

11

TANK, FUEL *Y2C*

TANK, FUEL Y2C

product number: 17500317670CQ

show photo

€ 230.00

11

TANK, FUEL *G7M*

TANK, FUEL G7M

product number: 17500317670FC

show photo

€ 364.00

11

TANK,FUEL

product number: 17500317670HX

€ 773.50

13

CAP,FUEL TANK

product number: 17510300163
supersession: 17510323310
Hurry: only 4 left!

€ 179.50

13

CAP,FUEL TANK (KIT) (NON O.E. ALTERNATIVE)

CAP,FUEL TANK (KIT) (NON O.E. ALTERNATIVE)

product number: 01751323310P
rating:
alternative part
show photo

€ 54.50

13

CAP,FUEL TANK

product number: 17510323310
rating:
Hurry: only 4 left!
alternative part
show photo

€ 179.50

13

CAP,FUEL TANK (NON O.E. ALTERNATIVE)

CAP,FUEL TANK (NON O.E. ALTERNATIVE)

product number: 17510323310P
supersession: 01751323310P
alternative part
show photo

€ 54.50

13

CAP, FUEL FILLER

CAP, FUEL FILLER

product number: 17510323999
supersession: 17510323310
Hurry: only 4 left!
alternative part
show photo

€ 179.50

14

PIN FUEL FILLER

PIN FUEL FILLER

product number: 17513300300

show photo

€ 3.00

14

CAP,FUEL TANK (KIT) (NON O.E. ALTERNATIVE)

CAP,FUEL TANK (KIT) (NON O.E. ALTERNATIVE)

product number: 01751323310P
rating:
alternative part
show photo

€ 54.50

15

SPRING CHECK CAP

SPRING CHECK CAP

product number: 17515300300

show photo

€ 3.50

15

CAP,FUEL TANK (KIT) (NON O.E. ALTERNATIVE)

CAP,FUEL TANK (KIT) (NON O.E. ALTERNATIVE)

product number: 01751323310P
rating:
alternative part
show photo

€ 54.50

16

PIN, FUEL FILLER CAP

PIN, FUEL FILLER CAP

product number: 17516300300

show photo

€ 2.50

17

CHFCK,FILLER CAP

CHFCK,FILLER CAP

product number: 17517300340

show photo

€ 62.00

18

WASHER FILLER CAP

WASHER FILLER CAP

product number: 17520300300

show photo

€ 3.50

19

MOLE,R FUEL TANK

product number: 17521317670

€ 14.50

19

MOLE SET TANK (NON O.E. ALTERNATIVE)

MOLE SET TANK (NON O.E. ALTERNATIVE)

product number: 17052317670P
alternative part
show photo

€ 37.50

20

MOLE,L FUEL TANK

MOLE,L FUEL TANK

product number: 17522317670
rating:
show photo

€ 24.50

20

MOLE SET TANK (NON O.E. ALTERNATIVE)

MOLE SET TANK (NON O.E. ALTERNATIVE)

product number: 17052317670P
alternative part
show photo

€ 37.50

21

WASHER,PLAIN

product number: 17523300000

show photo

€ 2.50

22

SEPARATOR A FUEL

SEPARATOR A FUEL

product number: 17524300000

show photo

€ 6.50

23

PACKING,FILLERCAP

PACKING,FILLERCAP

product number: 17525300000
rating:
show photo

€ 6.00

24

SPRING,SEAT

product number: 17526300000

show photo

€ 4.50

25

CUSHION,FUEL TANK

CUSHION,FUEL TANK

product number: 17611286000
supersession: 17611KE8000
show photo

€ 7.00

26

CUSHION,FUEL TANK

CUSHION,FUEL TANK

product number: 17613286000
rating:
show photo

€ 15.00

27

EMBLEM,R.FUELTANK

EMBLEM,R.FUELTANK

product number: 87121317670

show photo

€ 28.00

28

EMBLEM,L TANK

product number: 87122317670

show photo

€ 28.00

30

NUT,REAR ORNAMENT

NUT,REAR ORNAMENT

product number: 87311516000
supersession: 87311634600
rating:
show photo

€ 3.00

31

MARK,CAUTION

product number: 87560323611A
area code G: Germany
from serial number: CB250-4024178

€ 6.50

31

MARK,CAUTION (NON O.E. ALTERNATIVE)

MARK,CAUTION (NON O.E. ALTERNATIVE)

product number: 87560323611AP
area code G: Germany
from serial number: CB250-4024178
alternative part
show photo

€ 9.00

31

MARK,CAUTION

product number: 87560323611B
area code G: Germany
from serial number: CB250-4024178

€ 6.50

31

MARK, CAUTION (NON O.E. ALTERNATIVE)

MARK, CAUTION (NON O.E. ALTERNATIVE)

product number: 87560323611BP
area code G: Germany
from serial number: CB250-4024178
alternative part
show photo

€ 9.00

32

MARK,CAUTION

product number: 87560323621A
area code F: France
from serial number: CB250-4024178

€ 6.50

32

MARK,CAUTION

product number: 87560323621B
area code F: France
from serial number: CB250-4024178

€ 6.50

33

MARK,CAUTION

product number: 87560323670A
area code exc. G: Germany
from serial number: CB250-4024178
show photo

€ 3.00

33

MARK,CAUTION

product number: 87560323670AP
supersession: 87560323671AP
area code exc. G: Germany
from serial number: CB250-4024178
alternative part
show photo

€ 1.50

33

MARK,CAUTION

product number: 87560323670B
supersession: 87560323670ZA
area code exc. G: Germany
from serial number: CB250-4024178
alternative part
show photo

€ 3.00

33

MARK,DRIVE C*NH1*

MARK,DRIVE CNH1

product number: 87560323670ZA
rating:
area code exc. G: Germany
from serial number: CB250-4024178
alternative part
show photo

€ 3.00

33

MARK,DRIVE C*NH1*

MARK,DRIVE CNH1

product number: 87560323670ZAP
supersession: 87560323671ZAP
area code exc. G: Germany
from serial number: CB250-4024178
alternative part
show photo

€ 1.50

33

MARK,DRIVE*TYPEW*

MARK,DRIVETYPEW

product number: 87560323670ZE
area code exc. G: Germany
from serial number: CB250-4024178
alternative part
show photo

€ 3.00

33

MARK,CAUTION

product number: 87560323670A
area code exc. F: France
from serial number: CB250-4024178
show photo

€ 3.00

33

MARK,CAUTION

product number: 87560323670AP
supersession: 87560323671AP
area code exc. F: France
from serial number: CB250-4024178
alternative part
show photo

€ 1.50

33

MARK,CAUTION

product number: 87560323670B
supersession: 87560323670ZA
area code exc. F: France
from serial number: CB250-4024178
alternative part
show photo

€ 3.00

33

MARK,DRIVE C*NH1*

MARK,DRIVE CNH1

product number: 87560323670ZA
rating:
area code exc. F: France
from serial number: CB250-4024178
alternative part
show photo

€ 3.00

33

MARK,DRIVE C*NH1*

MARK,DRIVE CNH1

product number: 87560323670ZAP
supersession: 87560323671ZAP
area code exc. F: France
from serial number: CB250-4024178
alternative part
show photo

€ 1.50

33

MARK,DRIVE*TYPEW*

MARK,DRIVETYPEW

product number: 87560323670ZE
area code exc. F: France
from serial number: CB250-4024178
alternative part
show photo

€ 3.00

33

MARK,CAUTION

product number: 87560323670B
supersession: 87560323670ZA
area code exc. G: Germany
from serial number: CB250-4024178
show photo

€ 3.00

33

MARK,CAUTION

product number: 87560323670A
area code exc. G: Germany
from serial number: CB250-4024178
alternative part
show photo

€ 3.00

33

MARK,CAUTION

product number: 87560323670AP
supersession: 87560323671AP
area code exc. G: Germany
from serial number: CB250-4024178
alternative part
show photo

€ 1.50

33

MARK,DRIVE C*NH1*

MARK,DRIVE CNH1

product number: 87560323670ZAP
supersession: 87560323671ZAP
area code exc. G: Germany
from serial number: CB250-4024178
alternative part
show photo

€ 1.50

33

MARK,DRIVE*TYPEW*

MARK,DRIVETYPEW

product number: 87560323670ZE
area code exc. G: Germany
from serial number: CB250-4024178
alternative part
show photo

€ 3.00

33

MARK,CAUTION (NON O.E. ALTERNATIVE)

MARK,CAUTION (NON O.E. ALTERNATIVE)

product number: 87560323671AP
area code exc. G: Germany
from serial number: CB250-4024178
alternative part
show photo

€ 1.50

33

MARK,CAUTION

product number: 87560323670B
supersession: 87560323670ZA
area code exc. F: France
from serial number: CB250-4024178
show photo

€ 3.00

33

MARK,CAUTION

product number: 87560323670A
area code exc. F: France
from serial number: CB250-4024178
alternative part
show photo

€ 3.00

33

MARK,CAUTION

product number: 87560323670AP
supersession: 87560323671AP
area code exc. F: France
from serial number: CB250-4024178
alternative part
show photo

€ 1.50

33

MARK,DRIVE C*NH1*

MARK,DRIVE CNH1

product number: 87560323670ZAP
supersession: 87560323671ZAP
area code exc. F: France
from serial number: CB250-4024178
alternative part
show photo

€ 1.50

33

MARK,DRIVE*TYPEW*

MARK,DRIVETYPEW

product number: 87560323670ZE
area code exc. F: France
from serial number: CB250-4024178
alternative part
show photo

€ 3.00

33

MARK,CAUTION (NON O.E. ALTERNATIVE)

MARK,CAUTION (NON O.E. ALTERNATIVE)

product number: 87560323671AP
area code exc. F: France
from serial number: CB250-4024178
alternative part
show photo

€ 1.50

34

SCREW PAN

product number: 90167300000

show photo

€ 3.00

35

NUT JOINT

product number: 90303268000

show photo

€ 6.00

36

SCREW,CROSS 3X6

SCREW,CROSS 3X6

product number: 93500030060A

show photo

€ 0.50

38

TUBE,FUEL 5.5X220

product number: 950015522040

€ 8.50

39

TUBE,FUEL 5.5X240

product number: 950015524040

€ 8.50

40

TUBE,FUEL 5.5X320

product number: 950015532040

€ 6.50

41

CLIP B10,TUBE

product number: 9500202100

show photo

€ 1.00
