Honda C90ST CUB 1999 (X) MEXICO / CSW SS cylinder head

info

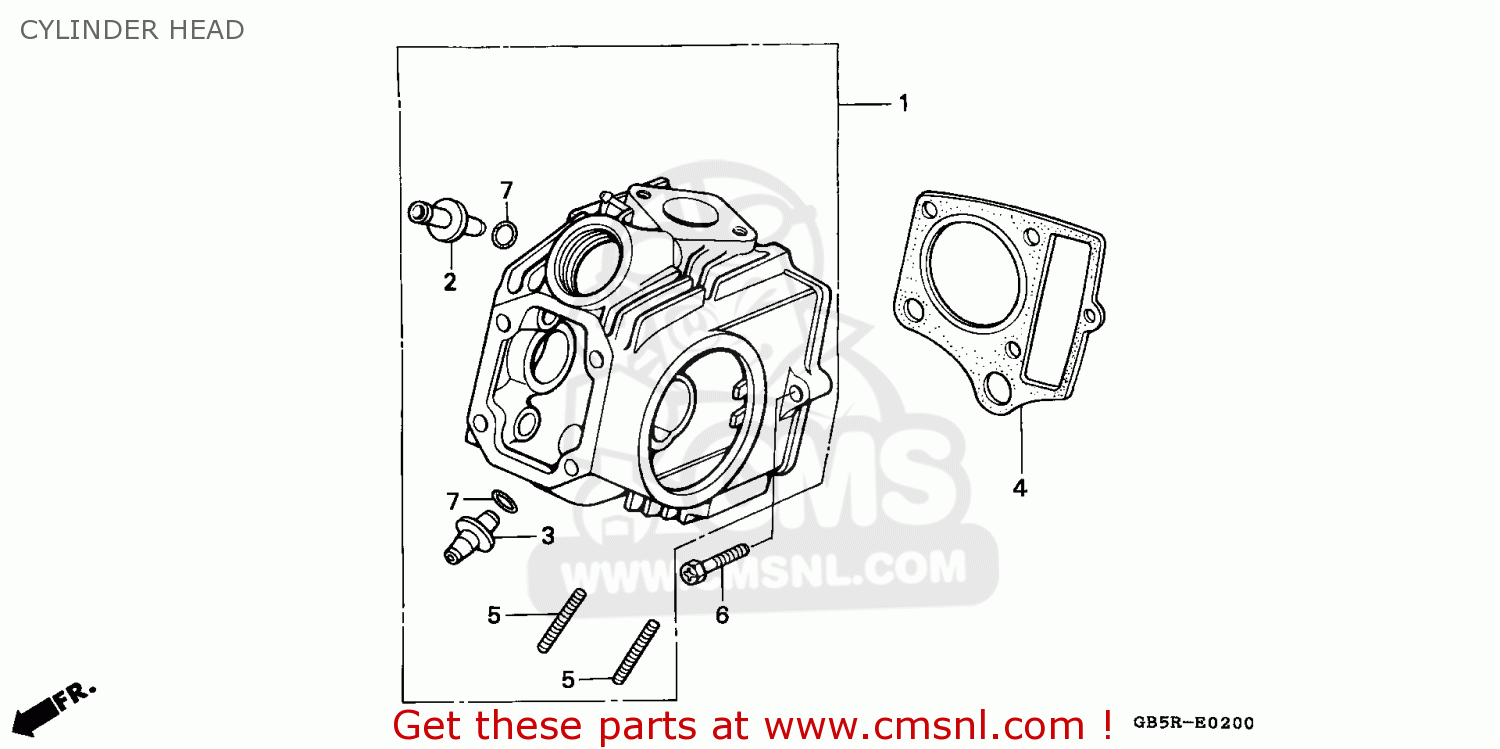

This CYLINDER HEAD assembly utilises two Bolt,stud 6x32(s) - the highest specified component. This schematic depicts all components used in the C90st Cub 1999 (x) Mexico / Csw Ss Cylinder Head partslist. The component with the lowest price in the CYLINDER HEAD schematic is the Bolt,stud 6x32.

view large image

Ref


product

price

Quantity

1

HEAD COMP,CYLINDE

product number: 12200GT0750

€ 172.50

2

GUIDE,IN.VALVE

product number: 12237GB4305

show photo

€ 9.50

3

GUIDE,EX.VALVE

product number: 12245GB4305

show photo

€ 9.50

4

GASKET,CYLINDER H (NAS)

GASKET,CYLINDER H (NAS)

product number: 12251GB5811

show photo

€ 24.00

4

GASKET,CYLINDER H (NAS) (NON O.E. ALTERNATIVE)

GASKET,CYLINDER H (NAS) (NON O.E. ALTERNATIVE)

product number: 12251GB5811P
alternative part
show photo

€ 16.50

4

GASKET KIT.A HEAD & CYLINDER (47MM) (NAS) (NON O.E. ALTERNATIVE)

GASKET KIT.A HEAD & CYLINDER (47MM) (NAS) (NON O.E. ALTERNATIVE)

product number: 06110RRP010
alternative part
show photo

€ 19.50

5

BOLT,STUD 6X32

product number: 90033GT0750

show photo

€ 2.50

6

BOLT,HS,6MM

product number: 90082035010

show photo

€ 2.50

7

O RING 9.0X1.6

product number: 91305028158
supersession: 91305028900
show photo

€ 3.00
