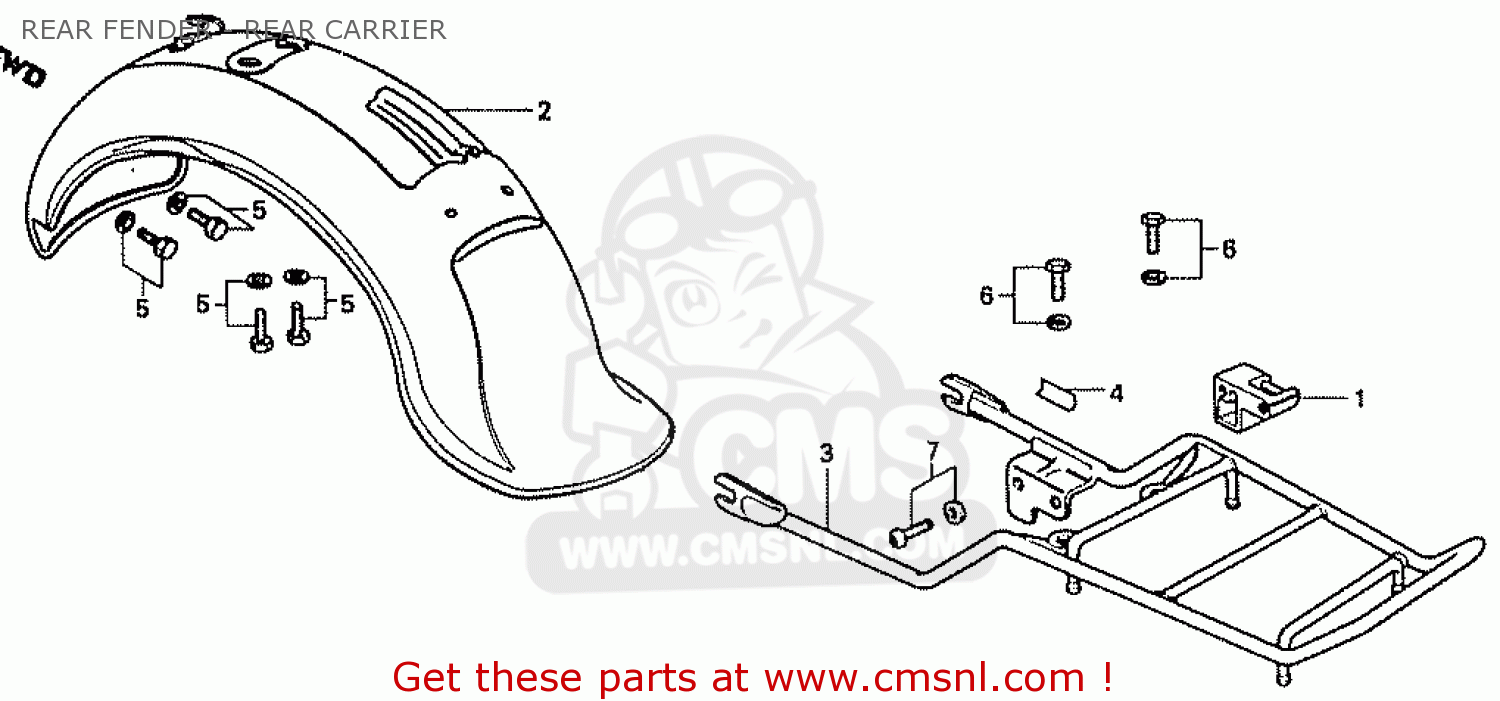

Honda CF50C CHALLY GENERAL EXPORT rear fender - rear carrier

In this schematic the "Bolt-washer,6x12" is used most often. Parts such as the Rear Fender - Rear Carrier: Carrier,sub, Bolt-washer,6x12, Screw Wash 6x10, Label,helmet Hold are included in the Cf50c Chally General Export Rear Fender - Rear Carrier parts fiche. The lowest price component in this Rear Fender - Rear Carrier parts-list fiche is the Screw Wash 6x10.


view large image
Ref
product
price
Quantity

1
HOLDER,HELMET
HOLDER,HELMET
product number: 50710110701
supersession: 50710086007
rating:
show photo

€ 31.50

2
FENDER,REAR
product number: 80100124000WF
supersession: 80100124000ZD
rating:

€ 239.00

3
CARRIER,SUB
CARRIER,SUB
product number: 81350124000
rating:
show photo

€ 51.50

4
LABEL,HELMET HOLD
LABEL,HELMET HOLD
product number: 87511323670

show photo

€ 2.50

5
BOLT-WASHER,6X12
product number: 9348106012
supersession: 934810601200

€ 1.50

6
BOLT-WASHER, 6X12
BOLT-WASHER, 6X12
product number: 934810601200
supersession: 934110601200
show photo

€ 1.50

7
SCREW WASH 6X10
product number: 938910601010
supersession: 938910601000

€ 1.00
