Yamaha 115/130TRQ 1992 control - engine

info

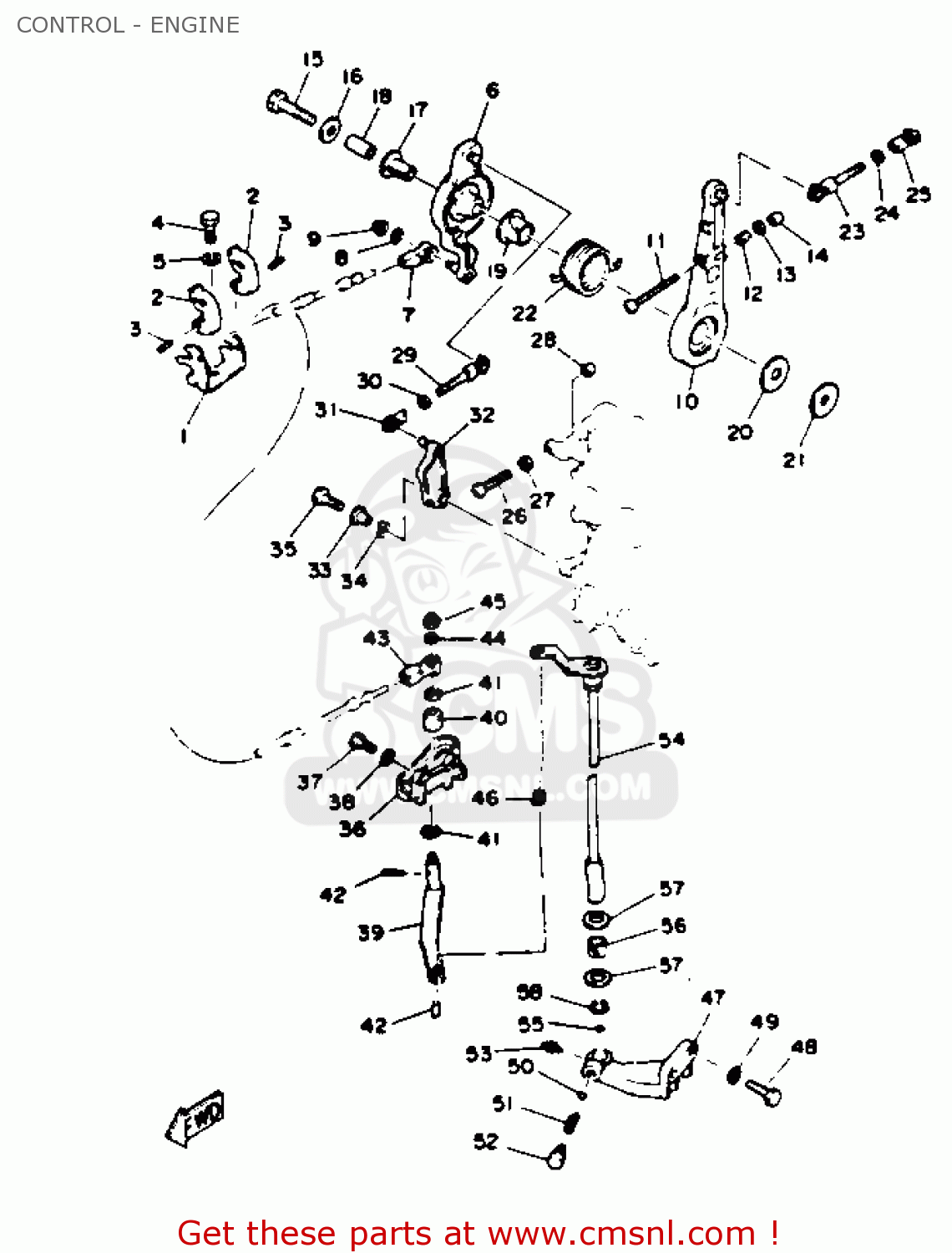

Some items from this specific schematic: Bolt (648), Washer, Plate(663), Cap, Spring 6484411600. The most reasonably priced component used on the 115/130trq 1992 Control - Engine is the Ybs67-8 Washer, Spring. This part-list fiche shows all the components that make up the 115/130trq 1992 Control - Engine .

view large image

Ref


product

price

Quantity

1

BRACKET, REMOTE CONTROL

product number: 6E54853100

€ 54.00

2

CLAMP, CABLE

product number: 6E54853800

show photo

€ 40.00

3

PIN, SPRING

product number: 9169030012

show photo

€ 3.00

4

BOLT (689)

product number: 9739508020
supersession: 9709508020

€ 4.00

5

YBS67-8 WASHER, SPRING

YBS67-8 WASHER, SPRING

product number: 9299008100

show photo

€ 1.00

6

LEVER, MAGNETO CONTROL 2

product number: 6E5416320194
supersession: 6E5416320294

€ 41.50

7

CABLE END, REMOTE CONTROL

CABLE END, REMOTE CONTROL

product number: 6E54834400

show photo

€ 10.00

8

YBS66-6 WASHER, PLAIN

YBS66-6 WASHER, PLAIN

product number: 9299006200

show photo

€ 1.00

9

NUT, SELF-LOCKING(6E5)

product number: 9018506M07

€ 4.00

10

LEVER, MAGNETO CONTROL 1

product number: 6E5416310194
supersession: 6E541631011S

€ 43.50

11

SCREW (663)

product number: 9015706013
supersession: 9015706M11

€ 3.50

12

SPRING, COMPRESSION (688)

product number: 9050116M12

€ 2.00

13

NUT(661)

product number: 9538006600
supersession: 9560106200
rating:
show photo

€ 1.50

14

CAP

product number: 6884419400

€ 10.50

15

BOLT (648)

product number: 9731308045
supersession: 9701308045

€ 2.50

16

WASHER, PLATE (6E5)

WASHER, PLATE (6E5)

product number: 9020108M54

show photo

€ 4.50

17

BUSHING(663)

product number: 9038612089

€ 18.00

18

COLLAR (688)

product number: 9038708M16
supersession: 90387084J8
Hurry: only 1 left!

€ 4.00

19

BUSHING (688)

product number: 9038622M13

€ 4.50

20

WASHER, PLATE(663)

product number: 9020212092

€ 13.50

21

WASHER PLATE (682)

WASHER PLATE (682)

product number: 9020108M13

show photo

€ 4.00

22

SPRING (6E5)

product number: 9050829M12

€ 41.50

23

ROD, MAGNETO CONTROL

ROD, MAGNETO CONTROL

product number: 6E54163601

show photo

€ 13.50

24

NUT, HEXAGON (663)

NUT, HEXAGON (663)

product number: 9538005600

show photo

€ 1.00

25

JOINT, LINK

product number: 6H14123700

show photo

€ 20.50

26

SCREW (663)

product number: 9015706013
supersession: 9015706M11

€ 3.50

27

NUT(661)

product number: 9538006600
supersession: 9560106200
rating:
show photo

€ 1.50

28

CAP

product number: 6884419400

€ 10.50

29

ROD 1

product number: 6884163600

€ 6.50

30

NUT, HEXAGON (663)

NUT, HEXAGON (663)

product number: 9538005600

show photo

€ 1.00

31

JOINT, LINK

product number: 6H14123700

show photo

€ 20.50

32

CAM, ACCELE

product number: 6E54121300
supersession: 6E54121301

€ 52.50

33

COLLER (6A0)

product number: 9038706M29

show photo

€ 7.00

34

WASHER, WAVE (676)

product number: 9020610M04

€ 4.50

35

BOLT (682)

product number: 9739506025
supersession: 9709506025

€ 1.50

36

BRACKET

product number: 6E5441170094

show photo

€ 60.00

37

BOLT HEXAGON (676)

product number: 9731306020
supersession: 9739506020

€ 1.50

38

WASHER, PLAIN (646)

WASHER, PLAIN (646)

product number: 9299006600

show photo

€ 1.00

39

LEVER, SHIFT ROD

product number: 6E54412100

€ 101.50

40

BUSHING, SHIFT ROD LEVER

BUSHING, SHIFT ROD LEVER

product number: 6E54412200

show photo

€ 16.50

41

WASHER, PLATE (6E5)

product number: 9020208M20

€ 3.50

42

CLIP 620436610000

CLIP 620436610000

product number: 9046818008

show photo

€ 2.50

43

CABLE END, REMOTE CONTROL

CABLE END, REMOTE CONTROL

product number: 6E54834400

show photo

€ 10.00

44

YBS66-6 WASHER, PLAIN

YBS66-6 WASHER, PLAIN

product number: 9299006200

show photo

€ 1.00

45

NUT, SELF-LOCKING(6E5)

product number: 9018506M07

€ 4.00

46

BUSHING (688)

product number: 9038606M12

€ 7.00

47

BRACKET 2

product number: 6E5441180194

show photo

€ 63.00

48

BOLT, HEXAGON (682)

BOLT, HEXAGON (682)

product number: 9731308030
supersession: 9701308030
show photo

€ 1.50

49

WASHER, PLAIN (663)

WASHER, PLAIN (663)

product number: 9299008600

show photo

€ 1.00

50

BALL (697)

product number: 9350104M02

show photo

€ 2.50

51

SPRING 6484411600

SPRING 6484411600

product number: 9050112082

show photo

€ 3.50

52

BUSHING 2

product number: 6484271500

show photo

€ 20.00

53

NIPPLE. GREASE(6A1)

NIPPLE. GREASE(6A1)

product number: 9370006004A
supersession: 9370006M03
show photo

€ 6.00

54

HANDLE GEAR SHIFT ASSY

product number: 6E54412002
supersession: 6E54412003
notes: UR LONG

€ 155.50

54

HANDLE GEAR SHIFT ASSY

product number: 6E54412022
supersession: 6E54412023
notes: UR ULTRA LONG

€ 162.50

55

O-RING (1J7)

product number: 9321009350
supersession: 9321009811
show photo

€ 2.00

56

BUSH(6E5)

product number: 9038616M66

show photo

€ 2.50

57

WASHER, PLATE(663)

WASHER, PLATE(663)

product number: 9020216061

show photo

€ 9.50

58

CIRCLIP(13T)

product number: 9900916400

show photo

€ 7.50
